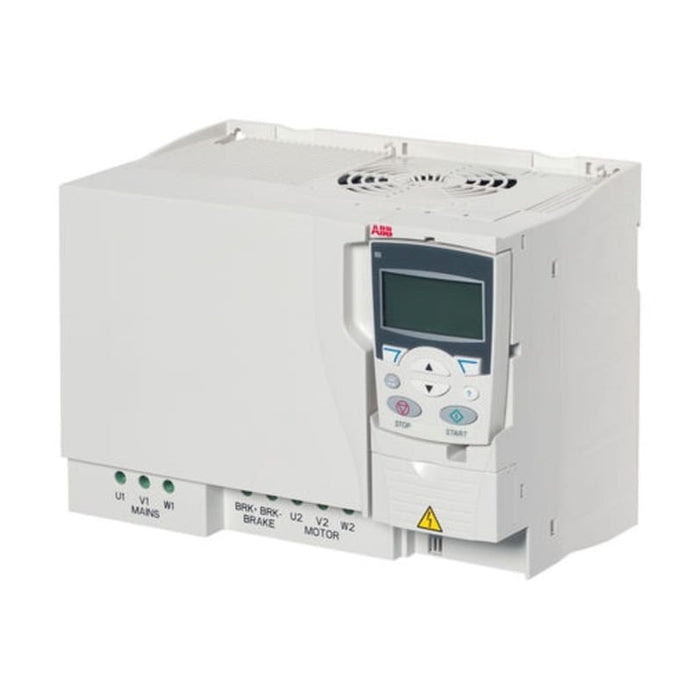

The ABB ACS355-03E-38A0-4 is a compact low voltage AC drive designed specifically for machine building and industrial automation applications. It controls three-phase asynchronous AC induction motors and permanent magnet synchronous motors with a rated power of 18.5 kW and continuous output current of 38 A. The drive operates from a 380-480 V AC three-phase supply and features an integrated Safe Torque Off (STO) safety function compliant to SIL3, built-in braking chopper, and EMC filter. Designed for rapid commissioning, it includes FlashDrop pre-configuration capability, application macros, and panel assistants. The ACS355 supports sensorless vector control, offers motor protection functions, PID control, and frequency output up to 500 Hz. Ideal for food and beverage, material handling, textile, printing, rubber and plastics, and woodworking applications. The drive provides energy-efficient motor speed control with 50% overload capability for one minute every ten minutes.
Item Details
- Brand Name: ABB
- Manufacturer: ABB
- Item Type Name: Low Voltage AC Machinery Drive
- Product Family / Series: ACS355
- Manufacturer Part Number: 3AUA0000058194
- Enclosure Type: IP20
Product Specifications
- rated_power: 18.5 kW
- rated_output_current: 38 A
- input_voltage: 380-480 V AC
- phase: 3-phase
- frequency_range: 0-500 Hz
- output_voltage: 3-phase, 0 to input voltage
- control_method: Sensorless vector control
- overload_capacity: 1.5 x I2N for 1 minute every 10 minutes; 1.8 x I2N for 2 seconds at start
- switching_frequency: 4-16 kHz (selectable in 4 kHz steps, default 4 kHz)
- static_speed_accuracy: 20% of motor nominal slip
- dynamic_speed_accuracy: <1% with 100% torque step
- torque_step_rise_time: <10 ms with nominal torque
- torque_control_non_linearity: ±5% with nominal torque
- operating_temperature: -10°C to 40°C (50°C with derating)
Additional Details
- Safety Function: Safe Torque Off (STO) - SIL3 standard
- Built In Features: Braking chopper, EMC filter, PID control, motor protection, real-time clock
- Communication Protocols: PROFIBUS DP, CANopen, Modbus, Ethernet IP/Modbus TCP/PROFINET (with adapter)
- Configuration Tools: FlashDrop, application macros, panel assistants
- Relative Humidity: <95% (non-condensing)
