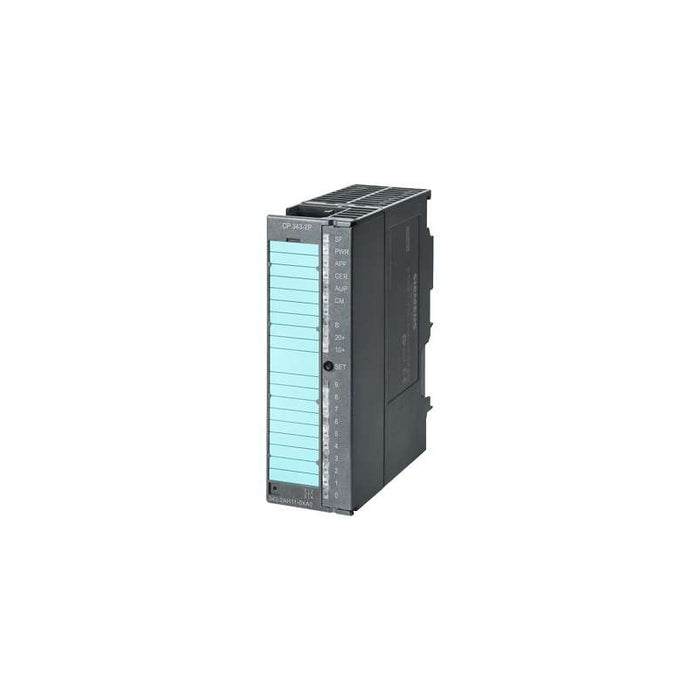

The Siemens CP 343-2P is a communications processor module designed for connecting SIMATIC S7-300 PLCs and ET 200M distributed I/O systems to AS-Interface fieldbus networks. This module supports AS-Interface Specification V3.0 and is configurable using STEP 7 engineering software. The CP 343-2P provides master functionality for AS-Interface networks, enabling cyclic data exchange with connected AS-Interface slaves. It features configuration and protected operating modes, supports combined transaction type (CTT) slaves, and includes integrated power supply capabilities for the AS-Interface bus. The module is designed for standard S7-300 mounting on DIN rail and includes diagnostic LEDs for status monitoring. Typical applications include low-level automation tasks in manufacturing, process control, and machine automation where cost-effective sensor/actuator networking is required.
Item Details
- Brand Name: Siemens
- Manufacturer: Siemens AG
- Item Type Name: AS-Interface Communications Processor
- Product Family / Series: SIMATIC NET CP 343-2
- Model: CP 343-2P
- Part Number: 6GK7343-2AH11-0XA0
Product Specifications
- interface_type: AS-Interface Master
- as_interface_specification: V3.0
- transmission_rate: 167 kbit/s
- compatible_systems: SIMATIC S7-300, ET 200M
- configuration_software: STEP 7
- firmware_version: V3.0 or higher
- operating_temperature_vertical: 0 to 40 °C
- operating_temperature_horizontal: 0 to 60 °C
Additional Details
- Country of Origin*: DE
- Commodity Code: 85176200
- Rohs Compliant: Yes
- Unspsc: 32151701
*Country of origin may vary.
Measurements
- Weight: 0.25 kg
- Width: 40 mm
- Height: 125 mm
- Depth: 120 mm
