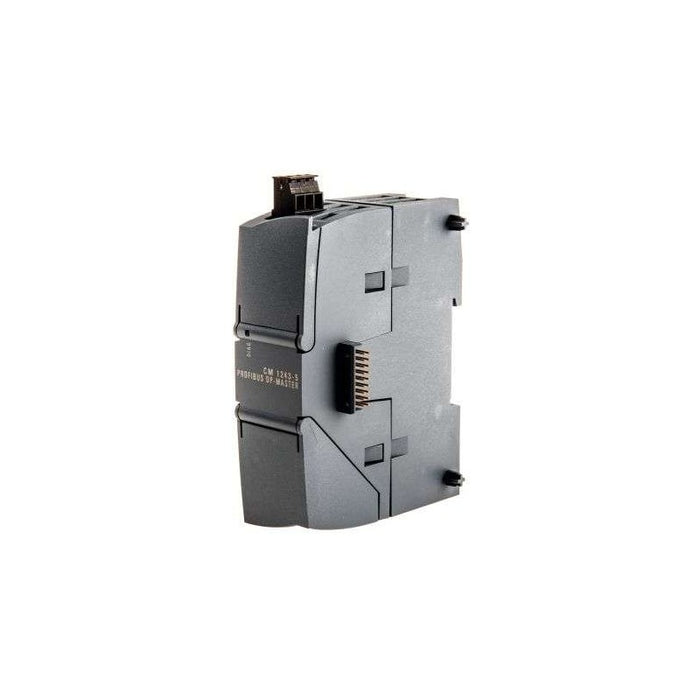

The Siemens CM 1243-5 is a communication module designed to connect the SIMATIC S7-1200 programmable logic controller to PROFIBUS networks as a DP master. It operates as a DPV1-compliant master module according to IEC 61158, handling data traffic autonomously to relieve the CPU of communication tasks. The module supports up to 16 PROFIBUS DP slaves and provides PG/OP communication and S7 communication services. It features a 9-pin D-sub RS-485 interface for PROFIBUS connectivity, with the option to connect to optical networks via OBT or OLM. The CM 1243-5 is mounted on a 35 mm DIN rail to the left of the CPU and requires external 24 V DC power supply via a 3-pin terminal. It is ideal for factory automation applications requiring cost-effective PROFIBUS-based solutions in production environments.
Item Details
- Brand Name: Siemens
- Manufacturer: Siemens AG
- Item Type Name: Communication Module
- Product Family / Series: SIMATIC NET S7-1200
- Model: CM 1243-5
Product Specifications
- protocol: PROFIBUS DP Master (DPV1)
- interface_type: RS-485, 9-pin D-sub female connector
- max_dp_slaves: 16
- input_data_area: 512 bytes
- output_data_area: 512 bytes
- total_dp_data_area: 1024 bytes
- power_supply: 24 V DC external
- ambient_temperature_vertical: 0 to 45 °C
- ambient_temperature_horizontal: 0 to 55 °C
- storage_temperature: -40 to +70 °C
- relative_humidity: 95% max at 25 °C without condensation
- protection_class: IP20
- mounting: 35 mm DIN rail
Additional Details
- Compatibility: SIMATIC S7-1200 controllers
- Configuration Software: STEP 7 V11.0 or higher
- Max Modules Per Station: 3 CMs/CPs (1 to 3 DP masters depending on CPU firmware)
- Communication Services: DP master, PG/OP communication, S7 communication
Measurements
- Weight: 0.134 kg
- Width: 30 mm
- Height: 100 mm
- Depth: 75 mm
