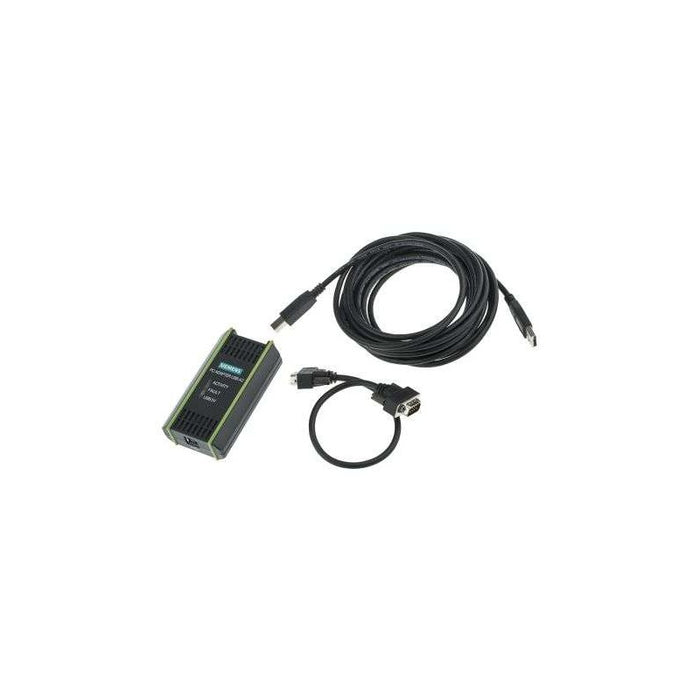

The Siemens PC Adapter USB A2 is a USB 2.0 communication adapter designed to connect programming devices, PCs, or notebooks to SIMATIC S7, M7, and C7 controllers via PROFIBUS or MPI networks. This adapter enables engineering, programming, diagnostics, and commissioning tasks for industrial automation systems. The device features a 9-pin Sub-D RS-485 interface for PROFIBUS/MPI connection and a USB 2.0 High Speed interface for PC connection. It supports data transfer rates from 9.6 kbit/s to 12 Mbit/s on the PROFIBUS side. The adapter is powered via the USB interface at 5 VDC and includes a 5-meter USB cable and 0.3-meter MPI cable. Compatible with Windows XP, Vista, Windows 7 (32/64-bit) and higher operating systems, it meets IP20 protection standards and is RoHS compliant.
Item Details
- Brand Name: Siemens
- Manufacturer: Siemens AG
- Item Type Name: PC Adapter USB Interface
- Product Family / Series: SIMATIC NET
- Product Designation: PC Adapter USB A2
Product Specifications
- usb_standard: USB 2.0 High Speed
- profibus_interface: 9-pin Sub-D socket RS-485
- transfer_rate_profibus: 9.6 kbit/s to 12 Mbit/s
- supply_voltage: 5 V DC
- current_consumption: 200 mA
- degree_of_protection: IP20
- usb_cable_length: 5 m
- mpi_cable_length: 0.3 m
- operating_systems: Windows XP/Vista/Windows 7 32/64-bit and higher
Additional Details
- Certifications / Approvals: cULus, UL 60950-1, CSA 22.2, C-Tick
- Rohs Compliant: Yes
- Ce Marking: Yes
- Emc Standards: EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4
- Safety Standard: IEC 60950
- Protection Class: Protection class III to IEC 60950
- Included Accessories: USB cable 5 m, MPI cable 0.3 m
Measurements
- Weight: 365 g (including cable)
- Dimensions: 105 x 58 x 26 mm
