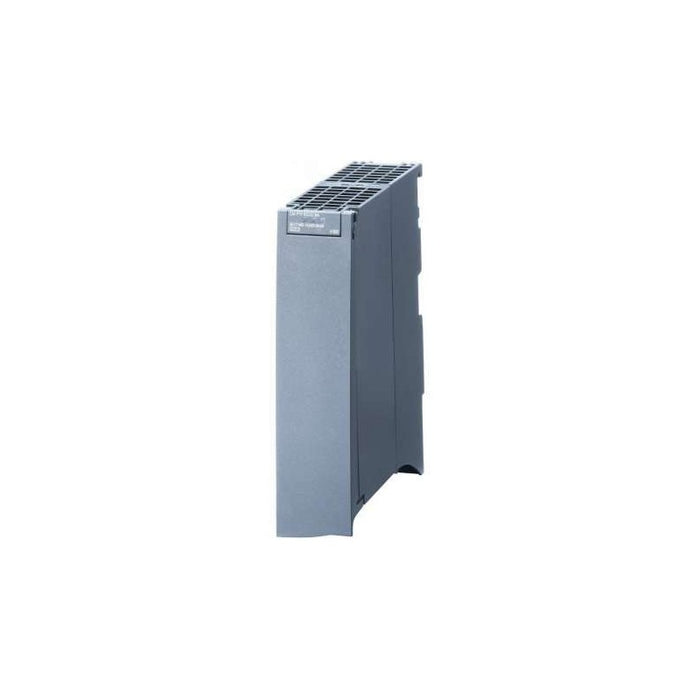

The Siemens 6ES7540-1AB00-0AA0 is a SIMATIC S7-1500 CM PTP RS422/485 BA communication module designed for serial communications in industrial automation systems. This module enables serial connections via RS422 and RS485 interfaces, supporting multiple communication protocols including Freeport, 3964(R), and USS. It provides a maximum transmission rate of 19.2 kbit/s and features a 15-pin D-sub socket connector. The module is powered directly from the S7-1500 backplane bus, drawing 43 mA current. It is designed for seamless integration into S7-1500 and ET200MP distributed I/O systems, offering reliable point-to-point serial communication capabilities for industrial control applications. The compact module measures 35 mm in width, 147 mm in height, and 127 mm in depth.
Item Details
- Brand Name: Siemens
- Manufacturer: Siemens
- Item Type Name: Serial Communication Module
- Product Family / Series: SIMATIC S7-1500
- Product Designation: CM PtP RS 422/485 BA
- Ean: 4025515079934
Product Specifications
- transmission_rate_max: 19.2 kbit/s
- supported_protocols: Freeport, 3964(R), USS
- interface_type: RS422, RS485
- connector_type: 15-pin D-sub socket
- number_of_rs422_interfaces: 1
- number_of_rs485_interfaces: 1
- current_consumption: 43 mA
- power_supply: Backplane bus powered
- atex_category: Cat. 3G
Additional Details
- Country of Origin*: Germany
- Hs Code: 85176200
- Rohs Compliance: Yes
*Country of origin may vary.
Measurements
- Weight: 0.27 kg
- Width: 35 mm
- Height: 147 mm
- Depth: 127 mm
