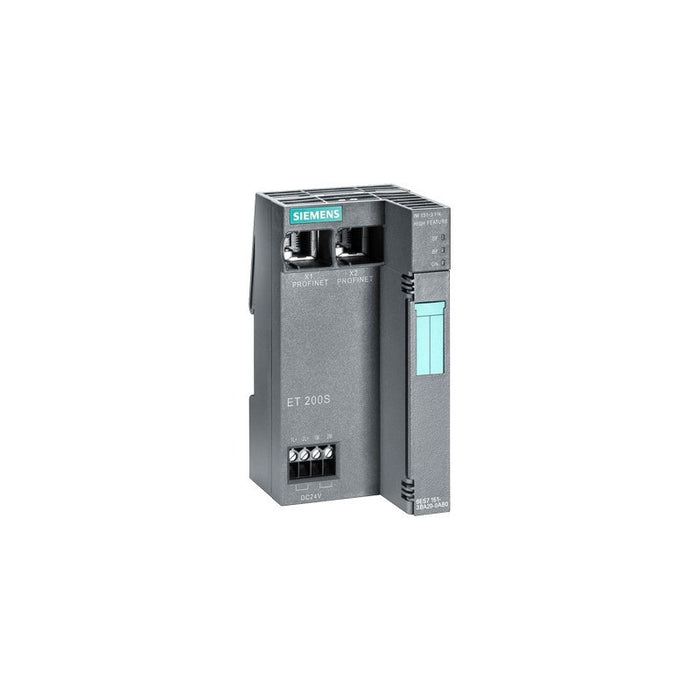

The Siemens 6ES7151-3BA23-0AB0 is a high-feature PROFINET interface module (IM151-3 PN HF) designed for the ET 200S distributed I/O system. This module enables seamless integration of ET 200S peripherals into PROFINET networks, supporting IRT (Isochronous Real-Time) communication for time-critical industrial automation applications. It connects up to 63 I/O modules spanning a maximum width of 2 meters via the ET 200S backplane bus. The module features dual RJ45 Ethernet ports for ring topology configurations, enhancing network redundancy and availability. It operates on 24 V DC power supply and supports advanced PROFINET functions including Shared Device, MRP (Media Redundancy Protocol), and PROFIenergy for energy management. The IM151-3 PN HF is suitable for compact control cabinet installations near machinery, offering flexible expansion capabilities for diverse automation tasks in manufacturing, process control, and machine building environments.
Item Details
- Brand Name: Siemens
- Manufacturer: Siemens AG
- Item Type Name: PROFINET Interface Module
- Product Family / Series: SIMATIC ET 200S
- Model Designation: IM151-3 PN HF
- Gtin Ean: 4025515076131
Product Specifications
- communication_protocol: PROFINET IO
- transmission_rate: 100 Mbit/s
- ethernet_interfaces: 2x RJ45
- max_io_modules: 63
- max_configuration_width: 2 m
- supply_voltage: 24 V DC
- input_current: 200 mA
- power_consumption: 3.3 W
- operating_temperature_range: 0 to 60 °C
- permissible_potential_difference: 75 V DC / 60 V AC
- mains_voltage_failure_buffering: 20 ms
- profinet_features: IRT, MRP, Shared Device, PROFIenergy
- memory_card: SIMATIC Micro Memory Card (64 KB minimum, 4 MB for firmware updates)
- snmp_support: MIB-2 (RFC1213)
Additional Details
- Configuration Software: STEP 7 V5.4 SP4 or higher
- Includes: Termination module
Measurements
- Weight: 150 g
- Dimensions: 75 mm x 60 mm x 119.5 mm
