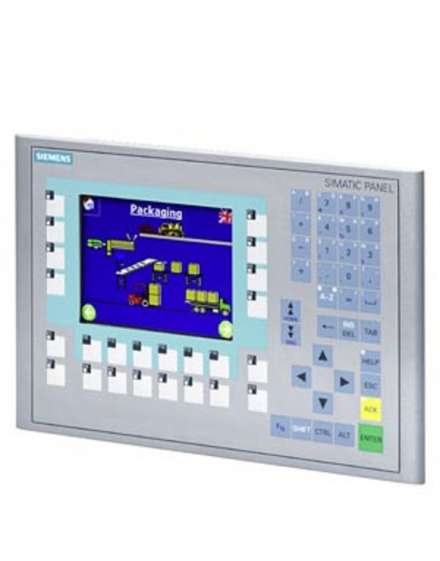

The Siemens 6AV6643-0BA01-1AX0 is a SIMATIC OP 277 operator panel designed for industrial automation and human-machine interface applications. This 6-inch panel features a 5.7-inch color TFT display with 320x240 pixel resolution and 256 colors, providing clear visual feedback for monitoring and control tasks. It includes 24 function keys (18 with LEDs) for enhanced operator interaction. The device is equipped with a RISC 32-bit processor and 4 MB of configuration memory. It offers versatile connectivity through multiple interfaces including RS-422/485 for MPI/DP/PPI protocols, Ethernet RJ-45 port for PROFINET communication, USB port, and Multi Media Card slot. The panel operates on Windows CE and is configurable using WinCC Flexible 2005 Standard SP1 or higher. It is designed for vertical mounting in industrial environments and operates on 24 V DC power supply.
Item Details
- Brand Name: Siemens
- Manufacturer: Siemens
- Item Type Name: Operator Panel
- Product Family / Series: SIMATIC OP 277
- Model: OP 277 6-inch
- Configuration Software: WinCC Flexible 2005 Standard SP1 or higher
Product Specifications
- display_type: TFT
- display_size: 5.7 inch
- display_diagonal: 5.7 inch
- resolution: 320 x 240 pixels
- colors: 256
- processor: RISC 32-bit
- configuration_memory: 4 MB
- main_memory: 64 MB max
- operating_system: Windows CE
- function_keys: 24 (18 with LEDs)
- touch_screen: Resistive analog
- rs422_485_interface: 1 x 12 Mbit/s (MPI/DP/PPI protocols)
- ethernet_interface: 1 x 10/100 Mbit/s RJ-45 (IE/PROFINET)
- usb_ports: 1
- multimedia_card_slot: 1
- supply_voltage: 24 V DC
- operating_temperature: 0 to 50 °C
- mounting_position: Vertical
- backlighting_mtbf: 60000 h at 25 °C
Additional Details
- Lifecycle Status: Discontinued by manufacturer (October 2021)
- Protection: Dust and waterproof design
Measurements
- Weight: 1.19 kg
- Dimensions: 308 mm x 204 mm x 59 mm (W x H x D)
