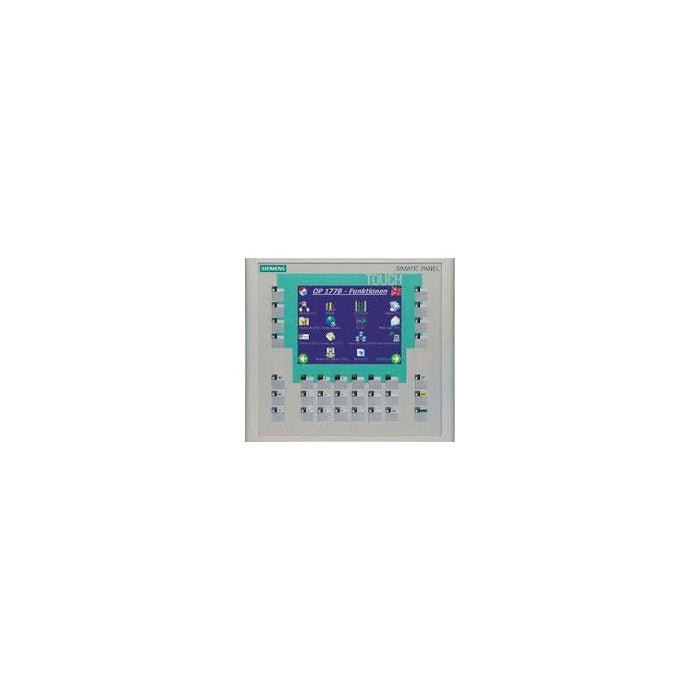

The Siemens 6AV6642-0DA01-1AX1 SIMATIC OP 177B is a 6-inch operator panel designed for industrial automation and process control applications. This HMI features a 256-color STN display with both touch and key operation, providing versatile operator interaction. The panel supports multiple communication protocols including MPI/PROFIBUS DP, PROFINET (PN/DP), RS-485, RS-422, and USB connectivity. It includes an Ethernet 10/100 interface for network integration and a printer interface for documentation purposes. The device features 32 function keys with 26 equipped with LED status indicators. With an ARM CPU running at 200 MHz and 2 MB configuration memory, it offers robust performance for monitoring and controlling industrial processes. The panel includes a slot for MMC memory cards and is configurable using Siemens WinCC Flexible 2005 software.
Item Details
- Brand Name: Siemens
- Manufacturer: Siemens
- Item Type Name: Operator Interface Panel
- Product Family / Series: SIMATIC OP 177B
- Model: OP 177B PN/DP
Product Specifications
- display_size: 6 inch
- display_type: STN 256 color
- cpu: ARM 200 MHz
- configuration_memory: 2 MB
- power_supply: 24 V DC
- communication_protocols: MPI/PROFIBUS DP, PROFINET, RS-485, RS-422, USB
- ethernet_interface: 10/100 Mbps
- function_keys: 32 total (26 with LED)
- operator_interface: Touch and Key
- configuration_software: WinCC Flexible 2005
- memory_expansion: MMC slot
Additional Details
- Country of Origin*: Germany
- Lifecycle Status: Discontinued by manufacturer
- Ean: 4025515076506
- Hs Code: 85371098
*Country of origin may vary.
Measurements
- Weight: 0.9 kg
