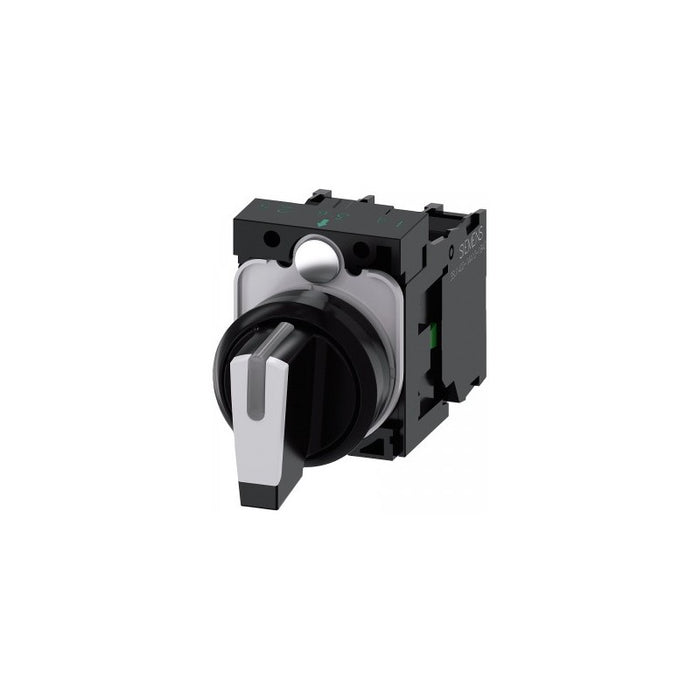

The Siemens 3SU1100-2BL60-1NA0 is an illuminable 3-position selector switch from the SIRIUS ACT command and signaling device family. It features a 22 mm round mounting hole, plastic front ring, and a white, short selector actuator. The switch provides three latching positions (I-O-II) at 10:30h/12h/13:30h with a 2x45° actuating angle, allowing the operator to maintain a stable position selection. Supplied as a complete unit, it integrates a holder and two 1 NO (normally open) contact modules with screw terminal connections. Typical applications include control panels, machine tools, and industrial automation equipment where mode or function selection is required. The illuminable design accepts an optional light source for visual status indication, and the modular SIRIUS ACT platform supports flexible configuration for HMI and operator interface assemblies.
Item Details
- Brand Name: Siemens
- Manufacturer: Siemens
- Item Type Name: Illuminable Selector Switch
- Product Family / Series: SIRIUS ACT
- Product Designation: Selector switches
- Product Type Designation: 3SU1
- Product Line: Plastic, black, 22 mm
- Design Of Product: Complete unit
- Supplied Contact Module 1: 3SU1400-1AA10-1BA0 (1 NO)
- Supplied Contact Module 2: 3SU1400-1AA10-1BA0 (1 NO)
- Supplied Holder: 3SU1550-0AA10-0AA0
- Supplied Actuator: 3SU1002-2BL60-0AA0
Product Specifications
- actuator_type: Selector switch, short
- actuator_color: White
- actuator_material: Plastic
- mounting_diameter: 22 mm
- shape: Round
- illuminable: Yes (light source optional)
- number_of_switch_positions: 3 (I-O-II)
- operating_principle: Latching (stay-put)
- switch_position_angles: 10:30h / 12h / 13:30h
- actuating_angle: 2x45°
- number_of_command_points: 1
- contact_configuration: 1 NO + 1 NO
- terminal_type: Screw terminal
Additional Details
- Lifecycle Status: Active product
