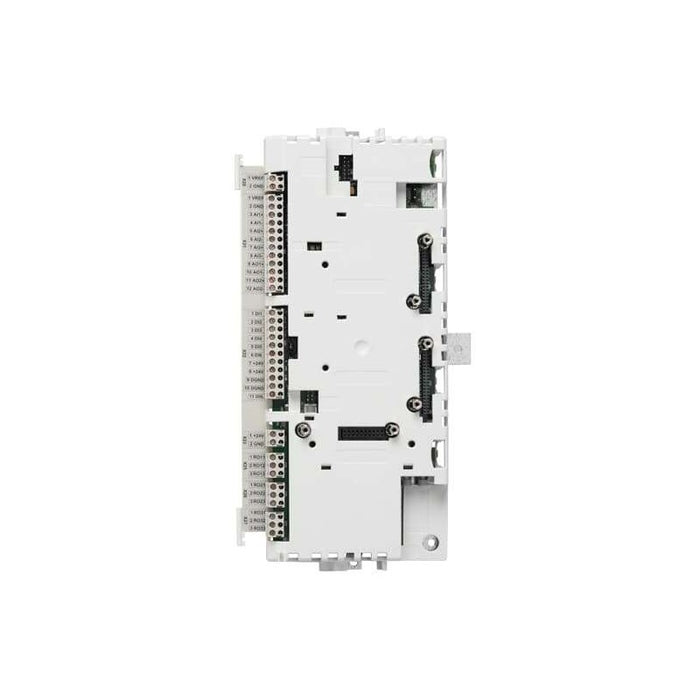

The ABB RDCU-12C is a drive control unit designed for use with ABB ACS800 variable frequency drive systems. This control board manages analog and digital I/O signals, relay outputs, and communication protocols to ensure reliable motor control and seamless integration into industrial automation environments. The unit features 3 analog input channels (2×0-20 mA, 1×0-10 V) with 12-bit resolution, 2 analog output channels (0-20 mA) with 10-bit resolution, 7 digital inputs at 24 V DC with galvanic isolation, and 3 relay outputs rated at 2 A. The RDCU-12C provides reference voltage output of ±10 V and auxiliary power output of +24 V. It is supplied as a blank board without application software, which must be ordered separately for operation as a spare part.
Item Details
- Brand Name: ABB
- Manufacturer: ABB
- Item Type Name: Drive Control Unit
- Product Family / Series: ACS800
- Model Designation: RDCU-12C
- Part Number: 3AUA0000036521
- Catalog Description: RDCU-12C; CONTROL UNIT
Product Specifications
- input_voltage: 24 V DC
- maximum_output_current: 10 A
- analog_inputs: 3 channels (2×0-20 mA, 1×0-10 V), 12-bit resolution
- analog_outputs: 2 channels (0-20 mA), 10-bit resolution
- digital_inputs: 7 channels, 24 V DC, galvanically isolated
- relay_outputs: 3 channels, max 2 A @ 24 V DC or 115/230 V AC
- reference_voltage_output: ±10 V ±0.5%, max 10 mA
- auxiliary_power_output: +24 V ±10%, max 250 mA
- mounting_type: DIN rail (35×7.5 mm)
- housing_material: Zinc-plated steel base, ABS/PC cover
- protection_rating: IP67 (with conformal coating)
- operating_temperature: -20°C to +85°C
- storage_temperature: -55°C to +100°C
Additional Details
- Country of Origin*: Finland
- Lifecycle Status: New
- Customs Tariff Number: 85049099
- Software Requirement: Application software not included, must be ordered separately
*Country of origin may vary.
Measurements
- Weight: 0.6 kg
- Dimensions: 127 mm × 25 mm × 279 mm
