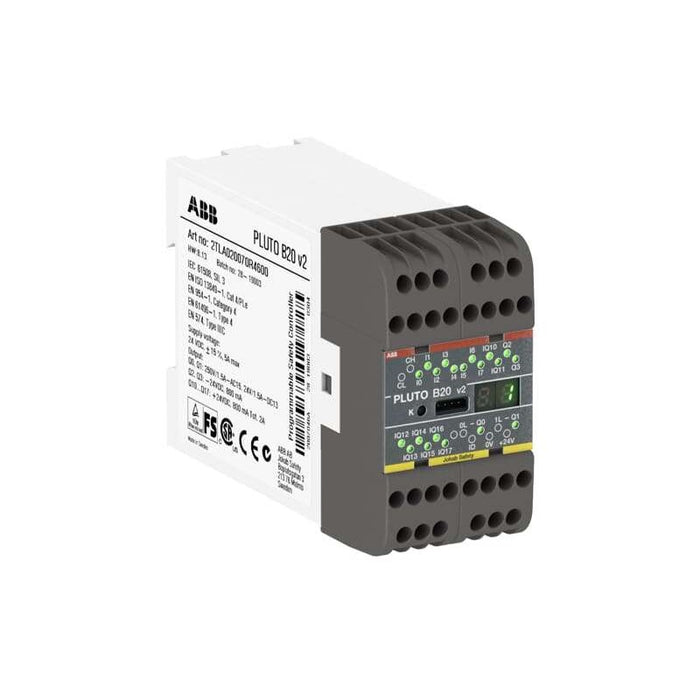

The ABB Pluto B20 v2 is a compact safety PLC designed for machine safety applications requiring high-level protection up to Performance Level e, Category 4, and SIL 3. This cost-effective controller features 20 configurable I/O points with a flexible architecture: 8 dedicated failsafe inputs, 8 terminals configurable as either non-failsafe outputs or failsafe inputs, 2 individually failsafe relay outputs, and 2 individually failsafe transistor outputs. The unit supports Pluto safety bus communication enabling up to 32 units to exchange data on a twisted-pair network, expanding system capabilities from 20 to 150 I/O points. Programming is accomplished via Pluto Manager software. The B20 v2 features version 2 hardware/processor and includes one analog input capable of monitoring 0-27V DC signals. The controller supports DIN rail mounting and includes Modbus communication capability for integration with HMI and PLC systems.
Item Details
- Brand Name: ABB
- Manufacturer: ABB
- Item Type Name: Safety Programmable Logic Controller
- Product Family / Series: Pluto
- Model: Pluto B20 v2
- Part Number: 2TLA020070R4600
- Ean: 7320500410547
- Series: 2TLA
Product Specifications
- supply_voltage: 24 V DC ±15%
- failsafe_inputs: 8 (I0-I7)
- configurable_io_terminals: 8 (IQ10-IQ17, failsafe inputs or non-failsafe outputs)
- failsafe_relay_outputs: 2 (Q0, Q1)
- failsafe_transistor_outputs: 2 (Q2, Q3)
- total_io: 20
- relay_output_rating_ac: 250 V / 1.5 A (AC15)
- relay_output_rating_dc: 24 V / 1.5 A (DC13)
- transistor_output_rating: 24 V DC, 800 mA
- standard_output_rating: 24 V DC, 800 mA total max 2 A
- analog_input: 1 (0-27 V DC)
- max_iq_terminal_load: 2.5 A
- max_current_consumption: 5 A
- performance_level: Up to PLe
- safety_integrity_level: SIL 3
- category: Category 4
- communication: Pluto safety bus, Modbus ASCII
- operating_temperature: -10°C to +50°C
- mounting_type: DIN rail
Additional Details
- Country of Origin*: Sweden
- Certifications / Approvals: IEC 61508, ISO 13849-1, EN 954-1, EN 61496-1, EN 574, EN 60204-1, EN 50178, EN 62061, IEC 61511-1, EN 50156-1
- Customs Tariff Number: 85364110
- Diagnostic Coverage: High
- Programming Software: Pluto Manager
- Connection Type: Detachable screw terminals
- Hardware Version: Version 2 hardware/processor
*Country of origin may vary.
Measurements
- Weight: 0.39 kg
- Width: 45 mm
- Height: 84 mm
- Depth: 120 mm
