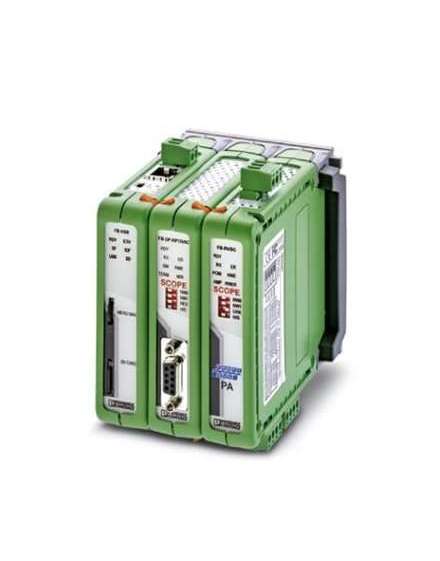

The FB-HSB-DP-SC/PA is a comprehensive PROFIBUS coupler system designed for transparent integration and diagnostics of PROFIBUS PA field devices into PROFIBUS DP networks. This complete system includes three main components: the one-network head station unit (FB-HSB), a PROFIBUS DP repeater with integrated oscilloscope functionality (FB-DP-RPTR/SC), and a PROFIBUS PA interface module with oscilloscope capability. The system provides advanced network diagnostics and oscilloscope features for both PROFIBUS DP and PROFIBUS PA segments, enabling detailed monitoring and troubleshooting of fieldbus communications. One communication interface module can drive up to ten individual PROFIBUS DP or PROFIBUS PA modules. The system supports FDT/DTM technology for managing and configuring PROFIBUS field devices, making it ideal for process automation applications requiring reliable PA device integration.
Item Details
- Brand Name: Phoenix Contact
- Manufacturer: Phoenix Contact
- Item Type Name: PROFIBUS DP to PROFIBUS PA Coupler System
- Product Family / Series: PROFIBUS Coupler/Link Systems
- Model Number: FB-HSB-DP-SC/PA
Product Specifications
- protocol_conversion: PROFIBUS DP to PROFIBUS PA
- ethernet_interface: 10/100 Mbps Ethernet
- ethernet_ports: 1 x RJ45
- oscilloscope_function: Integrated for PROFIBUS DP and PROFIBUS PA
- module_capacity: Up to 10 PROFIBUS DP or PA modules per communication interface
Additional Details
- Country of Origin*: US
- Configuration Tools: FDT/DTM compatible
*Country of origin may vary.
Measurements
- Length: 132 mm
- Width: 75 mm
- Height: 100 mm
