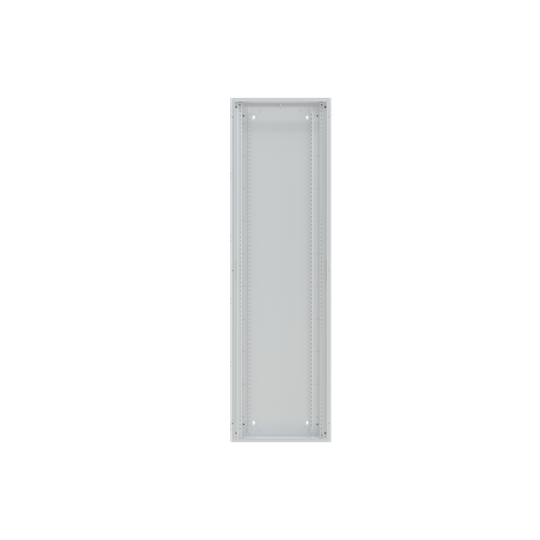

1SZE550800B0160 ABB - Q855B620

Technical

Number of Flange Openings:
4
Number of Rows:
13
Cover Plate Type:
Optional
Door Type:
Single
Number of Batteries:
0

Electrical

Rated Current (In):
800 A
Power Loss:
Δt = 25K 94 W
Δt = 30K 134 W
Δt = 35K 176 W
Δt = 40K 221 W
Δt = 25K 94 W
Δt = 30K 134 W
Δt = 35K 176 W
Δt = 40K 221 W

Design

Surface Finishing:
Powder coating
Housing Material:
Steel
RAL Number:
RAL 7035 - Light Grey
Color:
Grey
Number of Modules:
312

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20231210
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20221108
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
Product Not in WEEE Scope
WEEE B2C / B2B:
Business To Consumer

Environmental

Degree of Protection:
IP55
Protection Class:
Grounded (Class I)

Dimensions

Width in Number of Modular Spacings:
24
Product Net Width:
612 mm
Product Net Height:
2049 mm
Product Net Depth / Length:
250 mm
Product Net Weight:
34.65 kg
Built-In Depth (t2):
230 mm
Thickness:
Cabinet Plate 1.5 mm
Door Plate 1.5 mm
Cabinet Plate 1.5 mm
Door Plate 1.5 mm

Engineering

Building Information Modeling – BIM:

Ordering

Package Level 1 Units:
box 1 piece
Package Level 1 Gross Weight:
38.5 kg

Certificates and Declarations

Installation

Mounting Type:
Surface mounting

Popular Downloads

External Classifications and Standards

ETIM 9:
EC000058 - Empty cabinet
ETIM 10:
EC000058 - Empty cabinet
eClass:
V11.0 : 27142408
Object Classification Code:
U
Price on request
Ask for quote


Notify Me When Available
