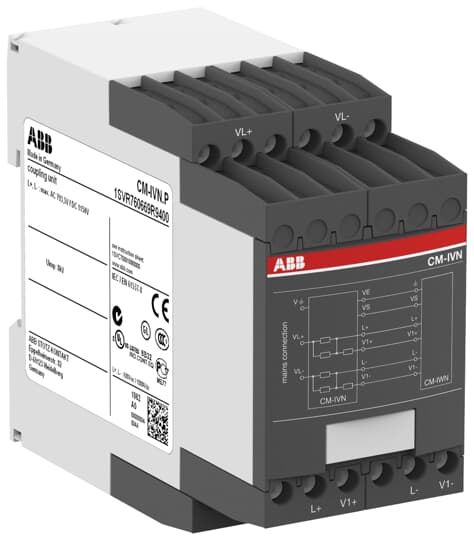

1SVR760669R9400 ABB - CM-IVN.P

Ordering

EAN:
4016779852678
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85043121

Dimensions

Product Net Width:
45 mm
Product Net Height:
85.6 mm
Product Net Depth / Length:
104.8 mm
Product Net Weight:
0.165 kg

Technical

Function:
Accessory - Coupling unit for voltage expansion of CM-IWN.1
Up to 690 V AC
Up to 1000 V DC
Accessory - Coupling unit for voltage expansion of CM-IWN.1
Up to 690 V AC
Up to 1000 V DC
Rated Frequency (f):
Measuring Circuit 15 ... 400 Hz
Terminal Type:
Screwless Terminals
Rated Impulse Withstand Voltage (Uimp):
Input Circuit / PE 8 kV
Rated Insulation Voltage (Ui):
Input Circuit / PE 1000 V
Degree of Protection:
Housing IP50
Terminals IP20
Housing IP50
Terminals IP20
Overvoltage Category:
III
Pollution Degree:
3
Connecting Capacity:
Flexible with Ferrule 2x 0.5 ... 1.5 mm²
Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 2x 0.5 ... 1.5 mm²
Flexible with Ferrule 2x 0.5 ... 1.5 mm²
Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 2x 0.5 ... 1.5 mm²
Wire Stripping Length:
8 mm
Recommended Screw Driver:
0.8 x 4
Mounting Position:
1 ... 6
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards:
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61326-2-4
IEC/EN 61557-1
IEC/EN 61557-8
UL 508
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61326-2-4
IEC/EN 61557-1
IEC/EN 61557-8
UL 508

Technical UL/CSA

Connecting Capacity UL/CSA:
Flexible 2x 18-16 AWG
Rigid 2x 20-16 AWG
Flexible 2x 18-16 AWG
Rigid 2x 20-16 AWG

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +85 °C
Operation -25 ... +60 °C
Storage -40 ... +85 °C
Maximum Operating Altitude Permissible:
Without Derating 2000 m

Material Compliance

Conflict Minerals Reporting Template (CMRT):
SCIP:
832cff94-489f-4925-b1a1-ad4cc7b31e9a Germany
Simplified SCIP:
9dc8db60-a5bb-4f8b-ae51-a514d2c352db Germany
2b62c88a-673d-48b8-965a-02b1952ffc8d Hungary
a593145e-b8d8-498f-a438-9f35898dfba5 Belgium
6cb69632-f21e-4899-a418-a090cf8eee61 Spain
5f472e63-82c4-4f26-9e01-48f405c17faa France
fb770208-e147-4223-8175-9905e7c048da France
9dabf98e-e367-4592-9fa3-6baa2f474e3c Sweden
d152740e-7c08-4d3c-b31b-2e4820daa7f0 Sweden
c0c73727-185a-41ee-8e31-9d7575c86755 Germany
c9f93e4d-82a7-47e7-88b7-36c859a4682e Bulgaria
b35427bb-8787-41de-98c4-c48a973a602f Netherlands
3fc9a4c4-5c81-47e3-8964-e678bb0a7f0c Estonia
0dfa5428-a566-4918-9f26-5f5506620209 Greece
c25331bf-0f06-4bd9-bb7a-7048ea6fadc1 Portugal
33bb3b22-8fae-4e8c-9473-f1ca10ab7df7 Hungary
bc95fd2d-fa37-4b45-802e-42e2f5715649 Poland
02534d23-089f-442f-9041-d4ad159e9d0b Croatia
3520f2df-5b99-4f68-9487-324923d78321 Germany
6a4f798e-9e1f-4a49-ab6e-d1ccd25b7622 Czech Republic
e8b6f0cc-504d-4440-b662-649e54ad7137 Denmark
952ae88d-d506-4847-9fba-b4f037cfdb14 Poland
60ff1c65-51da-4034-b5e0-6528e477d002 Italy
44667915-c4a7-4db8-ab5a-b54230c7c4d7 Norway
22c07c78-bc1e-48e0-81a8-6be147f90df1 Poland
0bb0432c-3f32-4428-898e-4afd17c075be Germany
757c165a-5d31-4a1b-92e0-13e62e50e699 Finland
cbc48288-d160-4ae7-ae54-491c30b269a2 Belgium
9dc8db60-a5bb-4f8b-ae51-a514d2c352db Germany
2b62c88a-673d-48b8-965a-02b1952ffc8d Hungary
a593145e-b8d8-498f-a438-9f35898dfba5 Belgium
6cb69632-f21e-4899-a418-a090cf8eee61 Spain
5f472e63-82c4-4f26-9e01-48f405c17faa France
fb770208-e147-4223-8175-9905e7c048da France
9dabf98e-e367-4592-9fa3-6baa2f474e3c Sweden
d152740e-7c08-4d3c-b31b-2e4820daa7f0 Sweden
c0c73727-185a-41ee-8e31-9d7575c86755 Germany
c9f93e4d-82a7-47e7-88b7-36c859a4682e Bulgaria

ABB EcoSolutions

Certificates and Declarations

CB Certificate:
cULus Certificate:

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
97 mm
Package Level 1 Depth / Length:
52.5 mm
Package Level 1 Height:
109 mm
Package Level 1 Gross Weight:
0.189 kg
Package Level 1 EAN:
4016779852678

External Classifications and Standards

Object Classification Code:
B
ETIM 7:
EC001444 - Insulation and earth fault monitoring relay
ETIM 8:
EC001444 - Insulation and earth fault monitoring relay
ETIM 9:
EC001444 - Insulation and earth fault monitoring relay
eClass:
V11.0 : 27371807
UNSPSC:
39122331
E-Number (Finland):
2712257
E-Number (Norway):
4187807
E-Number (Sweden):
3860662
