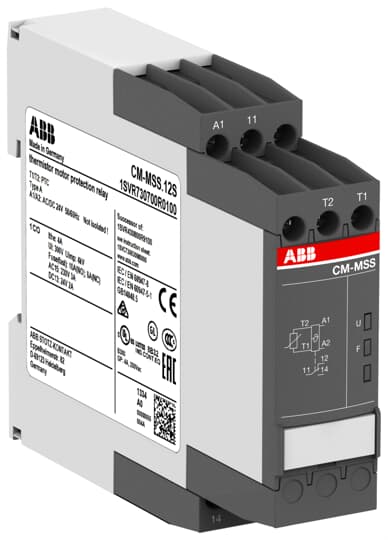

1SVR740700R0100 ABB - CM-MSS.12P

Ordering

EAN:
4013614496615
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Dimensions

Product Net Width:
22.5 mm
Product Net Height:
85.6 mm
Product Net Depth / Length:
103.7 mm
Product Net Weight:
0.105 kg

Technical

Function:
1 sensor circuit
Auto reset
1 sensor circuit
Auto reset
Rated Control Supply Voltage (Us):
24 V AC/DC
Rated Operational Voltage:
Auxiliary Circuit 250 V AC
Rated Frequency (f):
Supply Circuit 50/60 Hz
Output:
1 c/o (SPDT) contact
Terminal Type:
Screwless Terminals
Rated Operational Current AC-12 (Ie):
(230 V) 4 A
Rated Operational Current AC-15 (Ie):
(230 V) 3 A
Rated Operational Current DC-12 (Ie):
(24 V) 4 A
Rated Operational Current DC-13 (Ie):
(24 V) 2 A
Minimum Switching Capacity:
24 V
10 mA
24 V
10 mA
Rated Impulse Withstand Voltage (Uimp):
Output Circuit 1 / Output Circuit 2 4 kV
Output Circuit 4 kV
Output Circuit 1 / Output Circuit 2 4 kV
Output Circuit 4 kV
Rated Insulation Voltage (Ui):
Measuring Circuit / Output Circuit 300 V
Output Circuit 1 / Output Circuit 2 300 V
Supply Circuit / Output Circuit 300 V
Measuring Circuit / Output Circuit 300 V
Output Circuit 1 / Output Circuit 2 300 V
Supply Circuit / Output Circuit 300 V
Degree of Protection:
Housing IP50
Terminals IP20
Housing IP50
Terminals IP20
Overvoltage Category:
III
Pollution Degree:
3
Short-Circuit Protective Devices:
Output Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
Output Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
Electrical Durability:
AC-12 100000 cycle
Mechanical Durability:
Nr. Operations 30000000 cycle
Connecting Capacity:
Flexible 2x 0.5 ... 1.5 mm²
Rigid 2x 0.5 ... 1.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 2x 0.5 ... 1.5 mm²
Wire Stripping Length:
8 mm
Mounting Position:
1 ... 6
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards:
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 60947-5-1
IEC/EN 60947-8
UL 508
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 60947-5-1
IEC/EN 60947-8
UL 508

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Output Circuit 300 V AC
Contact Rating UL/CSA:
B300
Connecting Capacity UL/CSA:
Flexible 2x 18-16 AWG
Rigid 2x 20-16 AWG
Flexible 2x 18-16 AWG
Rigid 2x 20-16 AWG
Pilot Duty UL/CSA:
B300
Flammability According to UL94:
V-0

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +85 °C
Operation -25 ... +60 °C
Storage -40 ... +85 °C
Maximum Operating Altitude Permissible:
Without Derating 2000 m

Material Compliance

Conflict Minerals Reporting Template (CMRT):
SCIP:
67cb2765-2126-4fa5-8309-4beb4a54eb9b Germany
Simplified SCIP:
d9cd262d-1cc1-4f92-93bc-e5affe3d28c0 Germany
a890dd8d-e282-4394-bb07-2ff0d46537a4 Finland
c0311e03-660e-4b2a-b433-ad34cd1940e7 Bulgaria
5b9e0c4a-cc9d-4712-a340-d5b7446c3236 Germany
7747c413-33ec-4fa0-b8fd-010cdd4f147f France
7690b627-f2b0-4624-94dc-08e91793ac77 Belgium
a768feb7-f136-491b-818a-5a2733e50e37 Hungary
a08b4f87-e9c1-49f5-9aa5-5ec3f493529b Portugal
cf084ba6-4771-4b63-aa7e-3522f219cc7b Germany
9305a279-d44f-4a3d-8c14-5c1c57f7e6ff Poland
f6ad8548-5163-4c03-a8c1-1a3a00eacef2 Denmark
7fa52ce0-afd7-4a7d-bff1-e27e9d8c7304 Hungary
529e7e11-a0e8-46c8-93bd-f47ebabfaf89 France
fd22e65b-ede3-4680-b04a-41573506f660 Sweden
798eb40e-c323-4239-8336-5bb98276e08c Spain
fb6df2f8-2cbd-45ab-9de9-953d9db9b5e6 Norway
c0a4d149-72d1-4dcd-9a6f-9f5257f0eed6 Greece
ac83b650-6753-42ae-85ec-d5d59e3f82fa Netherlands
09ec32b1-0408-43af-b816-f2f19ecbb4f5 Germany
41ce01d3-27db-4ac3-a011-8c3682285e2f Czech Republic
3a6f583d-64f1-4ca3-b8a7-4d7c50c043a2 Italy
ee69c9a9-60ba-413f-80dd-d09f1465d8cf Sweden
23a8e421-b9e7-407c-8fef-48730491d8eb Estonia
93d703fd-ae59-4a33-a67a-dcb97587e687 Poland
067c7162-d1bf-4307-8abb-27147a208e72 Poland
10ae384e-16f4-4a67-9785-187679cad7e2 Croatia
92f19603-a308-4b82-8117-7b2c88d1b282 Belgium
d9cd262d-1cc1-4f92-93bc-e5affe3d28c0 Germany
a890dd8d-e282-4394-bb07-2ff0d46537a4 Finland
c0311e03-660e-4b2a-b433-ad34cd1940e7 Bulgaria
5b9e0c4a-cc9d-4712-a340-d5b7446c3236 Germany
7747c413-33ec-4fa0-b8fd-010cdd4f147f France
7690b627-f2b0-4624-94dc-08e91793ac77 Belgium
a768feb7-f136-491b-818a-5a2733e50e37 Hungary
a08b4f87-e9c1-49f5-9aa5-5ec3f493529b Portugal
cf084ba6-4771-4b63-aa7e-3522f219cc7b Germany
9305a279-d44f-4a3d-8c14-5c1c57f7e6ff Poland

ABB EcoSolutions

Certificates and Declarations

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
97 mm
Package Level 1 Depth / Length:
30 mm
Package Level 1 Height:
109 mm
Package Level 1 Gross Weight:
0.129 kg
Package Level 1 EAN:
4013614496615

External Classifications and Standards

Object Classification Code:
B
ETIM 7:
EC002568 - Relay for thermistor protection (PTC)
ETIM 8:
EC002568 - Relay for thermistor protection (PTC)
ETIM 9:
EC002568 - Relay for thermistor protection (PTC)
eClass:
V11.0 : 27371503
UNSPSC:
39122331
E-Number (Finland):
2712394
E-Number (Norway):
4188163
E-Number (Sweden):
3860713
