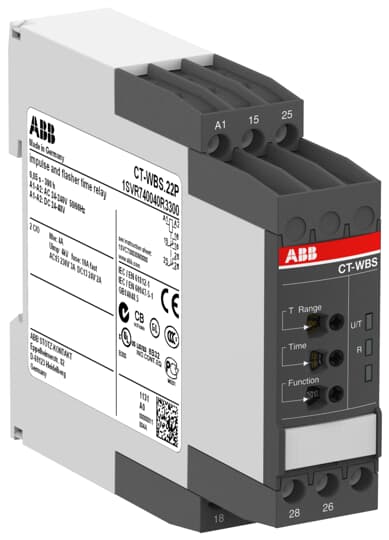

1SVR740040R3300 ABB - CT-WBS.22P

1SVR740040R3300 ABB - CT-WBS.22P

Ordering

EAN:
4016779851640
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Dimensions

Product Net Width:
22.5 mm
Product Net Height:
85.6 mm
Product Net Depth / Length:
103.7 mm
Product Net Weight:
0.115 kg

Technical

Timer Relay Type:
Flasher Starting with OFF
Flasher Starting with ON
Impulse ON
ON-Delay
Adjustable Impulse with Fixed Time Delay
Fixed Impulse with Adjustable Time Delay
ON / OFF Function
Flasher Starting with OFF
Flasher Starting with ON
Impulse ON
ON-Delay
Adjustable Impulse with Fixed Time Delay
Fixed Impulse with Adjustable Time Delay
ON / OFF Function
Time Range:
0.05 s ... 300 h
Rated Control Supply Voltage (Us):
24 ... 240 V AC
24 ... 48 V DC
24 ... 240 V AC
24 ... 48 V DC
Rated Operational Voltage:
Auxiliary Circuit 250 V
Rated Frequency (f):
50 / 60 Hz
DC
50 / 60 Hz
DC
Output:
2 c/o (SPDT) contacts
Terminal Type:
Screwless Terminals
Rated Operational Current AC-12 (Ie):
(230 V) 4 A
Rated Operational Current AC-15 (Ie):
(230 V) 3 A
Rated Operational Current DC-12 (Ie):
(24 V) 4 A
Rated Operational Current DC-13 (Ie):
(24 V) 2 A
Minimum Switching Capacity:
12 V
100 mA
12 V
100 mA
Rated Impulse Withstand Voltage (Uimp):
Input Circuit 4 kV
Output Circuit 1 / Output Circuit 2 4 kV
Input Circuit 4 kV
Output Circuit 1 / Output Circuit 2 4 kV
Rated Insulation Voltage (Ui):
Input Circuit / Output Circuit 500 V
Output Circuit 1 / Output Circuit 2 300 V
Input Circuit / Output Circuit 500 V
Output Circuit 1 / Output Circuit 2 300 V
Degree of Protection:
Housing IP50
Terminals IP20
Housing IP50
Terminals IP20
Overvoltage Category:
III
Pollution Degree:
3
Short-Circuit Protective Devices:
Output Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
Output Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
Electrical Durability:
AC-12 100000 cycle
Mechanical Durability:
Nr. Operations 30000000 cycle
Connecting Capacity:
Flexible with Ferrule 2x 0.5 ... 1.5 mm²
Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 2x 0.5 ... 1.5 mm²
Flexible with Ferrule 2x 0.5 ... 1.5 mm²
Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 2x 0.5 ... 1.5 mm²
Wire Stripping Length:
8 mm
Mounting Position:
1 ... 6
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards:
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61812-1
UL 508
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61812-1
UL 508

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Output Circuit 300 V AC
Contact Rating UL/CSA:
B300
Connecting Capacity UL/CSA:
Flexible 2x 18-16 AWG
Rigid 2x 20-16 AWG
Flexible 2x 18-16 AWG
Rigid 2x 20-16 AWG
Pilot Duty UL/CSA:
B300
Flammability According to UL94:
V-0

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +85 °C
Operation -25 ... +60 °C
Storage -40 ... +85 °C
Maximum Operating Altitude Permissible:
Without Derating 2000 m

Material Compliance

Conflict Minerals Reporting Template (CMRT):
SCIP:
b5d85601-7e8b-4a7d-a8d5-84b3ecaecda3 Germany
Simplified SCIP:
738ed1be-ee56-4b04-8560-9d76ca2176b0 Bulgaria
ada0fa56-ed02-4108-9a81-731d333d556e Croatia
c851305a-2d9c-4c7e-a573-83e2f187c191 Sweden
da232faa-47a6-4015-9c2c-a59822eb2cc1 Netherlands
8b85c97a-642b-4d6e-8619-3a124ff00913 Greece
b3714290-1258-4b6f-97fb-a10da5477508 Poland
8825feb6-98a0-49a2-abd7-8c5625e0c5a6 Norway
5b05f68a-eece-4c97-ae6c-171b7589c817 Estonia
d5461776-c7c8-4be2-9955-f6517ef720ea Sweden
8d4496cf-8dfb-4b33-85b7-2f9fc9a8888b Germany
c0892b53-bbca-4c7d-8254-7437a8fd1ea4 Poland
71da54a9-0590-4057-a869-506c532547e5 Germany
e992e097-a304-48a1-9f3b-ffecb317661b Belgium
89d2df0a-ff2f-462e-828d-20e955bf70ec Portugal
0761888b-11a0-4b4e-8695-515b326c0e3e Hungary
c53e0a91-6187-4f1d-ae7f-d72af3bebc58 Belgium
66bed02f-ff99-4346-b098-0491e3e11d0d Italy
ba28f778-368a-4825-abf3-5b52f228e28c Poland
efeaeebc-5778-4f76-a801-280374bef26c France
5b1fa49f-5d35-41d1-8d94-942bccd3d535 Germany
1df219cd-87df-43ef-bd0c-d95b67f72beb Czech Republic
355ecb77-5173-4127-8a19-e571c5d99143 Germany
72eb8f75-ec6d-4a51-9c11-48c5942329bf Denmark
5ce7a518-f21b-4e44-b517-adabdebb74ae Finland
fb9d3ed4-2dde-48ad-9ab3-1fb3da673468 Hungary
26248e6b-2f32-4c43-a9a9-58151551a823 France
50a5cd44-41fc-4330-bb0a-52be8baa1e99 Spain
738ed1be-ee56-4b04-8560-9d76ca2176b0 Bulgaria
ada0fa56-ed02-4108-9a81-731d333d556e Croatia
c851305a-2d9c-4c7e-a573-83e2f187c191 Sweden
da232faa-47a6-4015-9c2c-a59822eb2cc1 Netherlands
8b85c97a-642b-4d6e-8619-3a124ff00913 Greece
b3714290-1258-4b6f-97fb-a10da5477508 Poland
8825feb6-98a0-49a2-abd7-8c5625e0c5a6 Norway
5b05f68a-eece-4c97-ae6c-171b7589c817 Estonia
d5461776-c7c8-4be2-9955-f6517ef720ea Sweden
8d4496cf-8dfb-4b33-85b7-2f9fc9a8888b Germany

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
97 mm
Package Level 1 Depth / Length:
30 mm
Package Level 1 Height:
109 mm
Package Level 1 Gross Weight:
0.137 kg
Package Level 1 EAN:
4016779851640

External Classifications and Standards

Object Classification Code:
K
ETIM 7:
EC001439 - Timer relay
ETIM 8:
EC001439 - Timer relay
ETIM 9:
EC001439 - Timer relay
eClass:
V11.0 : 27371605
UNSPSC:
39122329
E-Number (Finland):
2712220
E-Number (Norway):
4187943
E-Number (Sweden):
4033132
