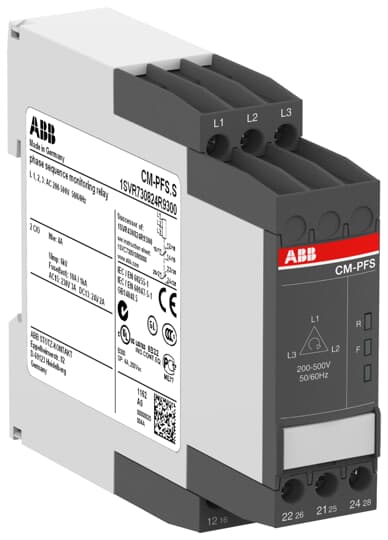

1SVR730824R9300 ABB - CM-PFS.S
ABB

1SVR730824R9300 ABB - CM-PFS.S

Ordering

EAN:
4016779851947
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Dimensions

Product Net Width:
22.5 mm
Product Net Height:
85.6 mm
Product Net Depth / Length:
103.7 mm
Product Net Weight:
0.127 kg

Technical

Function:
Phase failure detection
Phase sequence monitoring
Phase failure detection
Phase sequence monitoring
Measuring Range:
(L-L) 200 ... 500 V AC
Time Range:
500 ms start-up delay
Rated Control Supply Voltage (Us):
(L-L) 200 ... 500 V AC
Rated Frequency (f):
Supply Circuit 50/60 Hz
Output:
2 c/o (SPDT) contacts
Terminal Type:
Screw Terminals
Rated Operational Current AC-12 (Ie):
(230 V) 4 A
Rated Operational Current AC-15 (Ie):
(230 V) 3 A
Rated Operational Current DC-12 (Ie):
(24 V) 4 A
Rated Operational Current DC-13 (Ie):
(24 V) 2 A
Minimum Switching Capacity:
24 V
10 mA
24 V
10 mA
Rated Impulse Withstand Voltage (Uimp):
Input Circuit 6 kV
Output Circuit 4 kV
Input Circuit 6 kV
Output Circuit 4 kV
Rated Insulation Voltage (Ui):
Input Circuit / Output Circuit 600 V
Output Circuit 1 / Output Circuit 2 300 V
Input Circuit / Output Circuit 600 V
Output Circuit 1 / Output Circuit 2 300 V
Degree of Protection:
Housing IP50
Terminals IP20
Housing IP50
Terminals IP20
Overvoltage Category:
III
Pollution Degree:
3
Short-Circuit Protective Devices:
Output Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
Output Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
Electrical Durability:
AC-12 100000 cycle
Mechanical Durability:
Nr. Operations 30000000 cycle
Connecting Capacity:
Flexible with Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Ferrule 2x 0.5 ... 1.5 mm²
Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²
Flexible 1x 0.5 ... 2.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 1x 0.5 ... 4 mm²
Rigid 2x 0.5 ... 2.5 mm²
Flexible with Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Ferrule 2x 0.5 ... 1.5 mm²
Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²
Flexible 1x 0.5 ... 2.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 1x 0.5 ... 4 mm²
Rigid 2x 0.5 ... 2.5 mm²
Tightening Torque:
0.6 ... 0.8 N·m
Wire Stripping Length:
8 mm
Recommended Screw Driver:
0.8 x 4
4.5
Pozidriv 1
0.8 x 4
4.5
Pozidriv 1
Mounting Position:
1 ... 6
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards:
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 60255-27
IEC/EN 61000-6-2
IEC/EN 61000-6-3
UL 508
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 60255-27
IEC/EN 61000-6-2
IEC/EN 61000-6-3
UL 508

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Output Circuit 300 V AC
Contact Rating UL/CSA:
B300
Connecting Capacity UL/CSA:
Flexible 1x 18-14 AWG
Flexible 2x 18-16 AWG
Rigid 1x 20-12 AWG
Rigid 2x 20-14 AWG
Flexible 1x 18-14 AWG
Flexible 2x 18-16 AWG
Rigid 1x 20-12 AWG
Rigid 2x 20-14 AWG
Tightening Torque UL/CSA:
7.08 in·lb
Pilot Duty UL/CSA:
B300

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +85 °C
Operation -25 ... +60 °C
Storage -40 ... +85 °C
Maximum Operating Altitude Permissible:
Without Derating 2000 m

Material Compliance

Conflict Minerals Reporting Template (CMRT):
SCIP:
56fc38e3-b736-4b83-9e89-52f665d64cdc Germany
Simplified SCIP:
3341f646-1a9a-4065-94b8-c2b2c0187c40 Italy
6afb5db7-7f9d-4095-b539-242b414f7193 Germany
5ebae325-3d4f-4aa5-a6e4-1f56cd923bec Croatia
dd890426-285f-442d-8785-3654fca310e7 Norway
17e92b3a-c001-4112-9355-68ffd855c21b Germany
ceff6df6-b985-4856-883e-e42ad718689b Belgium
e36cdfe6-55ee-4b1b-ba1e-482f2414736c Finland
b823fb42-33d1-478d-99a5-537325bb8f27 Denmark
0d9b4915-a354-4ba3-b60b-03778cb0be7c Poland
bf4d162e-fc74-4c0f-bc33-7fb11e530319 France
b029317a-6c22-478a-b0d4-de48bee03dd1 Sweden
e59838dd-a179-4d5b-9619-64ce5259908f Germany
5cd9d81e-6449-4b1a-a4fb-798de111777c Sweden
6936519d-4a85-42eb-bebb-ff972c3c7c4c Poland
28814495-f69e-4f0d-9232-db444df6f00a France
d8440f20-f040-45ce-a29b-d4b5085ff2e4 Belgium
6da68da7-45f7-430a-886e-11e69f7beb7a Hungary
a41a02e8-6421-4814-8484-0d5195dc067d Spain
56ef4907-68f6-4b1b-b101-52c3080e9b68 Czech Republic
662a264f-80cd-46b3-b300-5f0dcbc4ebac Poland
1933829f-382a-40bc-ae2b-6b51b522f4ae Germany
3a5aaa86-614b-4543-9c8e-fcee83244e2c Estonia
3044e004-0351-4a3f-9eb5-d3af33e3a994 Netherlands
18d4b5a8-a3a2-4e6c-ae09-034612aca207 Hungary
6c3ac14a-a6c4-4f53-8829-7dde2dafcfb8 Greece
0c468727-097c-435c-be07-2fd709bed4e8 Portugal
206d3bbf-9f4e-43c6-8bae-03b750ccce31 Bulgaria
3341f646-1a9a-4065-94b8-c2b2c0187c40 Italy
6afb5db7-7f9d-4095-b539-242b414f7193 Germany
5ebae325-3d4f-4aa5-a6e4-1f56cd923bec Croatia
dd890426-285f-442d-8785-3654fca310e7 Norway
17e92b3a-c001-4112-9355-68ffd855c21b Germany
ceff6df6-b985-4856-883e-e42ad718689b Belgium
e36cdfe6-55ee-4b1b-ba1e-482f2414736c Finland
b823fb42-33d1-478d-99a5-537325bb8f27 Denmark
0d9b4915-a354-4ba3-b60b-03778cb0be7c Poland
bf4d162e-fc74-4c0f-bc33-7fb11e530319 France

ABB EcoSolutions

ABB EcoSolutions:
Yes

Certificates and Declarations

CB Certificate:
cULus Certificate:

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
97 mm
Package Level 1 Depth / Length:
30 mm
Package Level 1 Height:
109 mm
Package Level 1 Gross Weight:
0.152 kg
Package Level 1 EAN:
4016779851947

External Classifications and Standards

Object Classification Code:
B
ETIM 7:
EC001441 - Phase monitoring relay
ETIM 8:
EC001441 - Phase monitoring relay
ETIM 9:
EC001441 - Phase monitoring relay
eClass:
V11.0 : 27371803
UNSPSC:
39122332
E-Number (Finland):
2712286
E-Number (Norway):
4188094
E-Number (Sweden):
3860595
