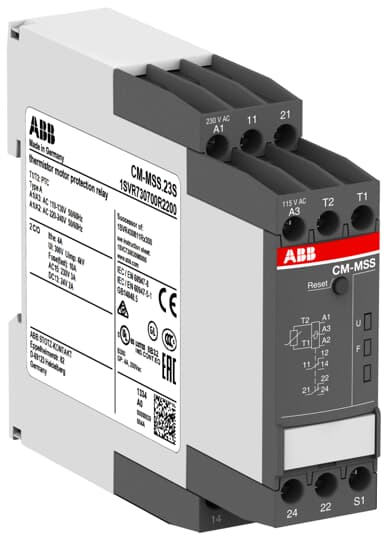

1SVR730700R2200 ABB - CM-MSS.23S

1SVR730700R2200 ABB - CM-MSS.23S

Ordering

EAN:
4013614496691
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Dimensions

Product Net Width:
22.5 mm
Product Net Height:
85.6 mm
Product Net Depth / Length:
103.7 mm
Product Net Weight:
0.174 kg

Technical

Function:
1 sensor circuit
Auto
manual or remote reset
1 sensor circuit
Auto
manual or remote reset
Rated Control Supply Voltage (Us):
110 ... 130 V AC
220 ... 240 V AC
110 ... 130 V AC
220 ... 240 V AC
Rated Operational Voltage:
Auxiliary Circuit 250 V AC
Rated Frequency (f):
Supply Circuit 50/60 Hz
Output:
2 c/o (SPDT) contacts
Terminal Type:
Screw Terminals
Rated Operational Current AC-12 (Ie):
(230 V) 4 A
Rated Operational Current AC-15 (Ie):
(230 V) 3 A
Rated Operational Current DC-12 (Ie):
(24 V) 4 A
Rated Operational Current DC-13 (Ie):
(24 V) 2 A
Minimum Switching Capacity:
24 V
10 mA
24 V
10 mA
Rated Impulse Withstand Voltage (Uimp):
Output Circuit 1 / Output Circuit 2 4 kV
Output Circuit 4 kV
Output Circuit 1 / Output Circuit 2 4 kV
Output Circuit 4 kV
Rated Insulation Voltage (Ui):
Measuring Circuit / Output Circuit 300 V
Output Circuit 1 / Output Circuit 2 300 V
Supply Circuit / Measuring Circuit 300 V
Supply Circuit / Output Circuit 300 V
Measuring Circuit / Output Circuit 300 V
Output Circuit 1 / Output Circuit 2 300 V
Supply Circuit / Measuring Circuit 300 V
Supply Circuit / Output Circuit 300 V
Degree of Protection:
Housing IP50
Terminals IP20
Housing IP50
Terminals IP20
Overvoltage Category:
III
Pollution Degree:
3
Short-Circuit Protective Devices:
Output Circuit NC - F Type Fuses 10 A
Output Circuit NO - F Type Fuses 10 A
Output Circuit NC - F Type Fuses 10 A
Output Circuit NO - F Type Fuses 10 A
Electrical Durability:
AC-12 100000 cycle
Mechanical Durability:
Nr. Operations 30000000 cycle
Connecting Capacity:
Flexible 1x 0.5 ... 2.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 1x 0.5 ... 4 mm²
Rigid 2x 0.5 ... 2.5 mm²
Flexible 1x 0.5 ... 2.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 1x 0.5 ... 4 mm²
Rigid 2x 0.5 ... 2.5 mm²
Tightening Torque:
0.6 ... 0.8 N·m
Auxiliary Circuit 1 ... 1.2 N·m
Main Circuit 2.5 ... 2.7 N·m
0.6 ... 0.8 N·m
Auxiliary Circuit 1 ... 1.2 N·m
Main Circuit 2.5 ... 2.7 N·m
Wire Stripping Length:
8 mm
Auxiliary Circuit 9 mm
Main Circuit 12 mm
8 mm
Auxiliary Circuit 9 mm
Main Circuit 12 mm
Recommended Screw Driver:
0.8 x 4
4.5
Pozidriv 1
0.8 x 4
4.5
Pozidriv 1
Mounting Position:
1 ... 6
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards:
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 60947-5-1
IEC/EN 60947-8
UL 508
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 60947-5-1
IEC/EN 60947-8
UL 508

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Output Circuit 300 V AC
Contact Rating UL/CSA:
(NC:) Q600
(NO:) Q600
(NC:) B600
(NO:) D300
B300
(NC:) Q600
(NO:) Q600
(NC:) B600
(NO:) D300
B300
Connecting Capacity UL/CSA:
Flexible 1x 18-14 AWG
Flexible 2x 18-16 AWG
Rigid 1x 20-12 AWG
Rigid 2x 20-14 AWG
Flexible 1x 18-14 AWG
Flexible 2x 18-16 AWG
Rigid 1x 20-12 AWG
Rigid 2x 20-14 AWG
Tightening Torque UL/CSA:
7.08 in·lb
Connecting Capacity Main Circuit UL/CSA:
Flexible 1/2x 18-10 AWG
Connecting Capacity Auxiliary Circuit UL/CSA:
Flexible 1/2x 18-12 AWG
Pilot Duty UL/CSA:
B300
NC B600
NC Q600
NO D300
NO Q600
B300
NC B600
NC Q600
NO D300
NO Q600
Flammability According to UL94:
V-0

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +85 °C
Operation -25 ... +60 °C
Storage -40 ... +85 °C
Maximum Operating Altitude Permissible:
Without Derating 2000 m

Material Compliance

Conflict Minerals Reporting Template (CMRT):
SCIP:
cc68bef8-99ba-4455-a541-0f0908d7a949 Germany
Simplified SCIP:
95c2d344-def0-467f-9dda-810ff62aa63e Belgium
863d210b-45cd-44ae-a4ba-fcbaece9d04a Poland
7c7034f3-1490-4eae-80a1-a14d3725c911 Germany
7bb14763-496e-4cfc-a982-11f5b92bd0db Bulgaria
b96e6347-6cf5-426a-a0f7-cc3585ffa123 Poland
cbf623ee-6470-4e80-a1ab-ff8358c506e7 Finland
585f6779-92a1-4b27-995f-3b6b655f61a8 Germany
4573f5ba-4e71-4b56-b6f5-f6c77526b033 Denmark
01786f11-557c-4f32-b6ad-e43947dd0ef5 Czech Republic
71868e9f-1c12-4328-90c3-0bdfa1c77361 Belgium
bbc6b6f5-8362-4b30-8787-6378066439ae Hungary
c49a3c04-7c37-4c10-869c-9c508abe9240 Portugal
5879bcc6-e169-4847-b249-07160b04daee France
0c7b3c77-bfeb-49fd-8868-04fd0146c729 Greece
0b9685f2-638c-43ce-80f3-c2ee16574aee Sweden
9aba2ca9-eb0a-4e1c-8598-1d7d72899745 Croatia
4b5d99dd-6aa0-4199-b4d1-b9567ff00adb Norway
6f7222ef-0261-4d81-a8ae-c744c0737d82 Netherlands
668a4410-ee8f-4fec-a0c6-c276bf808c7d Germany
a683a1a7-6790-42c9-8c60-235104a2173c Italy
0fd8d7a7-bc47-45cd-a58e-9968ad692ef7 France
fb0145ef-da59-48c2-9071-3dd9bbc7f58e Poland
5cf89e28-9ee7-4af5-84da-7ffd5aa45e56 Estonia
ab26a728-9c01-4b5e-aa60-cf01c3efa033 Germany
048b1662-5968-422d-b6fc-b07c08850d63 Sweden
6fa7004e-0cc5-457b-941c-cbfd14a60530 Spain
2f463a5a-5668-4f1b-ba74-0137c6405914 Hungary
95c2d344-def0-467f-9dda-810ff62aa63e Belgium
863d210b-45cd-44ae-a4ba-fcbaece9d04a Poland
7c7034f3-1490-4eae-80a1-a14d3725c911 Germany
7bb14763-496e-4cfc-a982-11f5b92bd0db Bulgaria
b96e6347-6cf5-426a-a0f7-cc3585ffa123 Poland
cbf623ee-6470-4e80-a1ab-ff8358c506e7 Finland
585f6779-92a1-4b27-995f-3b6b655f61a8 Germany
4573f5ba-4e71-4b56-b6f5-f6c77526b033 Denmark
01786f11-557c-4f32-b6ad-e43947dd0ef5 Czech Republic
71868e9f-1c12-4328-90c3-0bdfa1c77361 Belgium

ABB EcoSolutions

ABB EcoSolutions:
Yes

Certificates and Declarations

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
97 mm
Package Level 1 Depth / Length:
30 mm
Package Level 1 Height:
109 mm
Package Level 1 Gross Weight:
0.197 kg
Package Level 1 EAN:
4013614496691

External Classifications and Standards

Object Classification Code:
B
ETIM 7:
EC002568 - Relay for thermistor protection (PTC)
ETIM 8:
EC002568 - Relay for thermistor protection (PTC)
ETIM 9:
EC002568 - Relay for thermistor protection (PTC)
eClass:
V11.0 : 27371503
UNSPSC:
39122331
E-Number (Finland):
2712504
E-Number (Norway):
4185884
E-Number (Sweden):
3860726
Est. delivery between and
