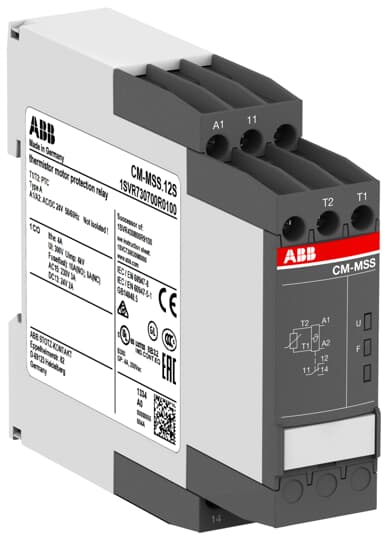

1SVR730700R0100 ABB - CM-MSS.12S

1SVR730700R0100 ABB - CM-MSS.12S

Ordering

EAN:
4013614496721
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Dimensions

Product Net Width:
22.5 mm
Product Net Height:
85.6 mm
Product Net Depth / Length:
103.7 mm
Product Net Weight:
0.113 kg

Technical

Function:
1 sensor circuit
Auto reset
1 sensor circuit
Auto reset
Rated Control Supply Voltage (Us):
24 V AC/DC
Rated Operational Voltage:
Auxiliary Circuit 250 V AC
Rated Frequency (f):
Supply Circuit 50/60 Hz
Output:
1 c/o (SPDT) contact
Terminal Type:
Screw Terminals
Rated Operational Current AC-12 (Ie):
(230 V) 4 A
Rated Operational Current AC-15 (Ie):
(230 V) 3 A
Rated Operational Current DC-12 (Ie):
(24 V) 4 A
Rated Operational Current DC-13 (Ie):
(24 V) 2 A
Minimum Switching Capacity:
24 V
10 mA
24 V
10 mA
Rated Impulse Withstand Voltage (Uimp):
Output Circuit 1 / Output Circuit 2 4 kV
Output Circuit 4 kV
Output Circuit 1 / Output Circuit 2 4 kV
Output Circuit 4 kV
Rated Insulation Voltage (Ui):
Measuring Circuit / Output Circuit 300 V
Output Circuit 1 / Output Circuit 2 300 V
Supply Circuit / Output Circuit 300 V
Measuring Circuit / Output Circuit 300 V
Output Circuit 1 / Output Circuit 2 300 V
Supply Circuit / Output Circuit 300 V
Degree of Protection:
Housing IP50
Terminals IP20
Housing IP50
Terminals IP20
Overvoltage Category:
III
Pollution Degree:
3
Short-Circuit Protective Devices:
Output Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
Output Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
Electrical Durability:
AC-12 100000 cycle
Mechanical Durability:
Nr. Operations 30000000 cycle
Connecting Capacity:
Flexible 1x 0.5 ... 2.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 1x 0.5 ... 4 mm²
Rigid 2x 0.5 ... 2.5 mm²
Flexible 1x 0.5 ... 2.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 1x 0.5 ... 4 mm²
Rigid 2x 0.5 ... 2.5 mm²
Tightening Torque:
0.6 ... 0.8 N·m
Wire Stripping Length:
8 mm
Recommended Screw Driver:
0.8 x 4
4.5
Pozidriv 1
0.8 x 4
4.5
Pozidriv 1
Mounting Position:
1 ... 6
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards:
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 60947-5-1
IEC/EN 60947-8
UL 508
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 60947-5-1
IEC/EN 60947-8
UL 508

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Output Circuit 300 V AC
Contact Rating UL/CSA:
B300
Connecting Capacity UL/CSA:
Flexible 1x 18-14 AWG
Flexible 2x 18-16 AWG
Rigid 1x 20-12 AWG
Rigid 2x 20-14 AWG
Flexible 1x 18-14 AWG
Flexible 2x 18-16 AWG
Rigid 1x 20-12 AWG
Rigid 2x 20-14 AWG
Tightening Torque UL/CSA:
7.08 in·lb
Pilot Duty UL/CSA:
B300
Flammability According to UL94:
V-0

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +85 °C
Operation -25 ... +60 °C
Storage -40 ... +85 °C
Maximum Operating Altitude Permissible:
Without Derating 2000 m

Material Compliance

Conflict Minerals Reporting Template (CMRT):
SCIP:
0d34b1af-e98f-4381-b064-aeb8bdd8c8b1 Germany
Simplified SCIP:
5e79edc5-1361-41d7-ba9c-adf0f026975a Germany
4751a406-5f90-43c2-868c-54613e3e59af Finland
8c504388-7ef7-49da-a85c-21a4cefb3c75 Estonia
b129e627-1ee7-4e6c-bc13-227bab238211 Sweden
3313970d-7822-4eaa-9899-65b33f1ca860 Czech Republic
c937ff9e-a325-41ab-8d86-9efc6a079a6a Greece
839d24a3-cdf7-4451-a1c8-bcebfbe413bc Netherlands
c9248460-086a-466d-8f6e-1ddfb2205659 Spain
3f0c89a1-19c2-4d55-8999-63ddb2ef6278 Portugal
e05d4def-5114-4d12-afa0-61dc2bf0fb12 Sweden
cc631f3c-afab-41b6-a365-846cd1b6cbc4 France
940e5653-0428-436b-b5bf-b3793a96a804 Croatia
5135b9d2-0450-415a-a0f4-42e0203a47b3 Norway
16bea55a-7ef5-4112-b33d-74bc5302a429 Poland
5598ec91-492d-4fac-8406-4cdaab099613 Hungary
2e0f430d-312c-4bdc-b170-575b8b3c6afa Belgium
f2ccf3c6-fc53-45c8-950a-22740bec575a Italy
4fedf9d5-dba3-4c69-9896-27289ce3c0ae Germany
b12c48c2-7920-4315-9fa1-4cd31f424df3 Germany
fc634b9b-7476-41ac-886b-eb3d183695a9 Poland
a99ce688-df7a-4f31-b990-a7fb73de5025 Denmark
c8d173f1-1961-4d20-b183-901fc11b6bb9 Hungary
2f8b8599-9789-4648-8427-9e9d69ac81a5 Bulgaria
3bb61915-4d06-4fe3-b0dd-09238a7d1ada Germany
fef70299-a5d3-4c1c-9e51-6bf1e0d833b9 France
706d4974-339c-47ec-95d3-6fb420ae54ea Belgium
1f627a7b-885d-4f18-91bf-0956e96b4fb2 Poland
5e79edc5-1361-41d7-ba9c-adf0f026975a Germany
4751a406-5f90-43c2-868c-54613e3e59af Finland
8c504388-7ef7-49da-a85c-21a4cefb3c75 Estonia
b129e627-1ee7-4e6c-bc13-227bab238211 Sweden
3313970d-7822-4eaa-9899-65b33f1ca860 Czech Republic
c937ff9e-a325-41ab-8d86-9efc6a079a6a Greece
839d24a3-cdf7-4451-a1c8-bcebfbe413bc Netherlands
c9248460-086a-466d-8f6e-1ddfb2205659 Spain
3f0c89a1-19c2-4d55-8999-63ddb2ef6278 Portugal
e05d4def-5114-4d12-afa0-61dc2bf0fb12 Sweden

ABB EcoSolutions

ABB EcoSolutions:
Yes

Certificates and Declarations

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
97 mm
Package Level 1 Depth / Length:
30 mm
Package Level 1 Height:
109 mm
Package Level 1 Gross Weight:
0.137 kg
Package Level 1 EAN:
4013614496721

External Classifications and Standards

Object Classification Code:
B
ETIM 7:
EC002568 - Relay for thermistor protection (PTC)
ETIM 8:
EC002568 - Relay for thermistor protection (PTC)
ETIM 9:
EC002568 - Relay for thermistor protection (PTC)
eClass:
V11.0 : 27371503
UNSPSC:
39122331
E-Number (Finland):
2712395
E-Number (Norway):
4185879
E-Number (Sweden):
3860714
Price on request
Ask for quote

Notify Me When Available
