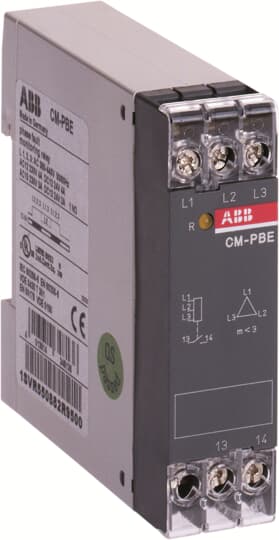

1SVR550882R9500 ABB - CM-PBE

Ordering

EAN:
4013614348136
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Dimensions

Product Net Width:
22.5 mm
Product Net Height:
78 mm
Product Net Depth / Length:
78.5 mm
Product Net Weight:
0.066 kg

Technical

Function:
Phase failure detection
Sub-Function:
Phase loss
Measuring Range:
(L-L) 380 ... 440 V AC
Time Range:
500 ms start-up delay
150 ms tripping delay
500 ms start-up delay
150 ms tripping delay
Rated Control Supply Voltage (Us):
(L-L) 380 ... 440 V AC
Rated Frequency (f):
Supply Circuit 50/60 Hz
Output:
1 n/o contact
Terminal Type:
Screw Terminals
Rated Operational Current AC-12 (Ie):
(230 V) 4 A
Rated Operational Current AC-15 (Ie):
(230 V) 3 A
Rated Operational Current DC-12 (Ie):
(24 V) 4 A
Rated Operational Current DC-13 (Ie):
(24 V) 2 A
Rated Impulse Withstand Voltage (Uimp):
Input Circuit 4 kV
Rated Insulation Voltage (Ui):
Input Circuit / Output Circuit 400 V
Degree of Protection:
Housing IP50
Terminals IP20
Housing IP50
Terminals IP20
Overvoltage Category:
III
Pollution Degree:
3
Short-Circuit Protective Devices:
Output Circuit NC - F Type Fuses 10 A
Output Circuit NO - F Type Fuses 10 A
Output Circuit NC - F Type Fuses 10 A
Output Circuit NO - F Type Fuses 10 A
Connecting Capacity:
Flexible with Ferrule 2x 0.75 ... 1.5 mm²
Flexible 2x 1 ... 1.5 mm²
Rigid 2x 0.75 ... 1.5 mm²
Flexible with Ferrule 2x 0.75 ... 1.5 mm²
Flexible 2x 1 ... 1.5 mm²
Rigid 2x 0.75 ... 1.5 mm²
Tightening Torque:
0.6 ... 0.8 N·m
Wire Stripping Length:
10 mm
Mounting Position:
1 ... 6
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards:
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61000-6-2
IEC/EN 61000-6-3
UL 508
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61000-6-2
IEC/EN 61000-6-3
UL 508

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Output Circuit 250 V AC
Contact Rating UL/CSA:
B300
Connecting Capacity UL/CSA:
Flexible with Ferrule 2x 18-16 AWG
Flexible 2x 18-16 AWG
Rigid 2x 18-16 AWG
Flexible with Ferrule 2x 18-16 AWG
Flexible 2x 18-16 AWG
Rigid 2x 18-16 AWG
Tightening Torque UL/CSA:
7.08 in·lb
Pilot Duty UL/CSA:
B300

Environmental

Ambient Air Temperature:
Operation -20 ... +60 °C
Storage -40 ... +85 °C
Operation -20 ... +60 °C
Storage -40 ... +85 °C
Maximum Operating Altitude Permissible:
Without Derating 2000 m

Material Compliance

Conflict Minerals Reporting Template (CMRT):
SCIP:
c27962c6-0ecc-44d6-be23-41778211e40c Germany
Simplified SCIP:
ebd985f6-f937-45f1-965d-4df01c29ab55 Germany
60d975d2-e128-468f-9516-8ec56120001a Bulgaria
e9345811-c7f3-49c7-a1bd-e6bf721262d2 Hungary
29ba1a64-5b51-43b1-9d56-3bf50944d7b8 Netherlands
bdbe4ebd-16cb-4235-805e-e482ba214b6a Greece
1f6b0bb7-212d-4700-88b8-6ad8354a64bd Germany
cdb69ebf-07e8-46de-9ca8-b267acc7be56 Italy
689fdce6-053c-4d2b-8584-a6896cad5ac3 Denmark
e1227712-6383-4546-a608-5f89c49063bc Poland
0afde915-c050-4952-9eea-fc636cd36ac2 Germany
c69aa0f0-7469-4915-9acd-ce10100704df Czech Republic
633fccb8-6bac-45b0-a220-2fc08bd657ac Poland
545ebc09-b771-436f-be12-1c4c5dbd1917 Sweden
f30ab1da-3277-441e-bd70-bb3ca3267f67 Estonia
f26b97f8-4c3c-4fa5-9e26-44f588a3aacb Poland
658e29a8-a12a-4e84-8481-9381f8c904c2 Norway
5a179cbb-314e-48af-8cf6-80420fee3dd8 Spain
015aadc8-9924-405b-9406-1a83b426420c France
890fb0bd-ba9b-475d-b298-7102b0ac12cc Sweden
5159f9fa-6b89-42d2-9ebd-a07a67bbb7af Croatia
b6b5a4c8-354e-4d1b-85c7-d284f4eec54d Hungary
1856a9dc-ce18-4260-9d80-e08f7b4bda6d Belgium
3e91dba8-a90f-4589-9663-b42fe383c03f France
7ec23466-0c34-49a9-9124-73ff60ee6421 Portugal
d66fe3c5-1023-4d8f-8f86-d8a1ddeb7217 Germany
b5f9ea9b-d8fa-402c-99e6-65715dd3cbb3 Belgium
32f2beeb-1caa-405a-8cea-c61dd97794d0 Finland
ebd985f6-f937-45f1-965d-4df01c29ab55 Germany
60d975d2-e128-468f-9516-8ec56120001a Bulgaria
e9345811-c7f3-49c7-a1bd-e6bf721262d2 Hungary
29ba1a64-5b51-43b1-9d56-3bf50944d7b8 Netherlands
bdbe4ebd-16cb-4235-805e-e482ba214b6a Greece
1f6b0bb7-212d-4700-88b8-6ad8354a64bd Germany
cdb69ebf-07e8-46de-9ca8-b267acc7be56 Italy
689fdce6-053c-4d2b-8584-a6896cad5ac3 Denmark
e1227712-6383-4546-a608-5f89c49063bc Poland
0afde915-c050-4952-9eea-fc636cd36ac2 Germany

Certificates and Declarations

cUL Certificate:

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
23 mm
Package Level 1 Depth / Length:
82 mm
Package Level 1 Height:
82 mm
Package Level 1 Gross Weight:
0.078 kg
Package Level 1 EAN:
4013614348136

External Classifications and Standards

Object Classification Code:
B
ETIM 7:
EC001441 - Phase monitoring relay
ETIM 8:
EC001441 - Phase monitoring relay
ETIM 9:
EC001441 - Phase monitoring relay
eClass:
V11.0 : 27371803
UNSPSC:
39122332
E-Number (Finland):
2712854
E-Number (Norway):
4187169
Price on request
Ask for quote
