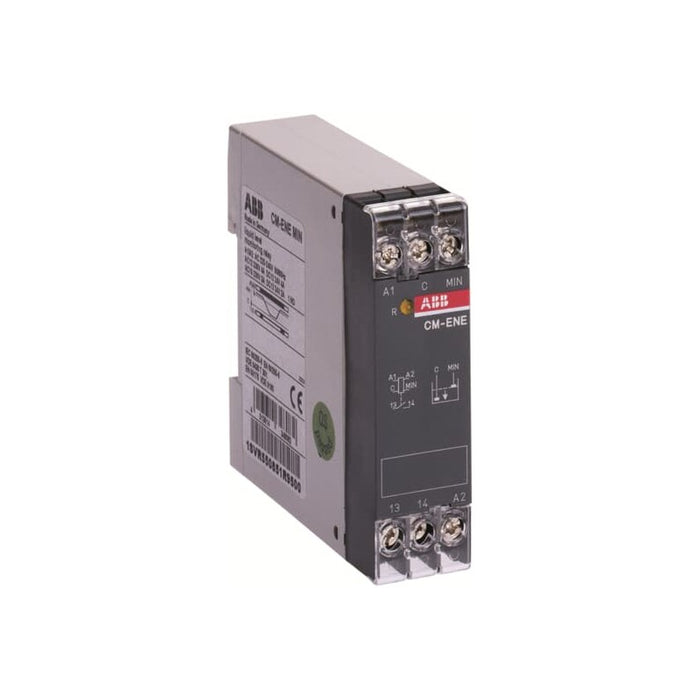

1SVR550855R9500 ABB - cm-ene min

Ordering

EAN:
4013614349928
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Dimensions

Product Net Width:
22.5 mm
Product Net Height:
78 mm
Product Net Depth / Length:
78.5 mm
Product Net Weight:
0.106 kg

Technical

Function:
Draining monitoring
Sub-Function:
Dry running protection
Number of Electrodes:
2
Measuring Range:
0 ... 100 kΩ
Rated Control Supply Voltage (Us):
24 V AC
Rated Frequency (f):
Supply Circuit 50/60 Hz
Output:
1 n/o contact
Terminal Type:
Screw Terminals
Rated Operational Current AC-12 (Ie):
(230 V) 4 A
Rated Operational Current AC-15 (Ie):
(230 V) 3 A
Rated Operational Current DC-12 (Ie):
(24 V) 4 A
Rated Operational Current DC-13 (Ie):
(24 V) 2 A
Rated Impulse Withstand Voltage (Uimp):
Measuring Circuit / Output Circuit 4 kV
Supply Circuit / Measuring Circuit 4 kV
Supply Circuit / Output Circuit 4 kV
Measuring Circuit / Output Circuit 4 kV
Supply Circuit / Measuring Circuit 4 kV
Supply Circuit / Output Circuit 4 kV
Rated Insulation Voltage (Ui):
Measuring Circuit / Output Circuit 250 V
Supply Circuit / Measuring Circuit 250 V
Supply Circuit / Output Circuit 250 V
Measuring Circuit / Output Circuit 250 V
Supply Circuit / Measuring Circuit 250 V
Supply Circuit / Output Circuit 250 V
Degree of Protection:
Housing IP50
Terminals IP20
Housing IP50
Terminals IP20
Short-Circuit Protective Devices:
Output Circuit NO - F Type Fuses 10 A
Connecting Capacity:
Flexible with Ferrule 2x 0.75 ... 1.5 mm²
Flexible 2x 1 ... 1.5 mm²
Rigid 2x 0.75 ... 1.5 mm²
Flexible with Ferrule 2x 0.75 ... 1.5 mm²
Flexible 2x 1 ... 1.5 mm²
Rigid 2x 0.75 ... 1.5 mm²
Tightening Torque:
0.6 ... 0.8 N·m
Wire Stripping Length:
10 mm
Mounting Position:
1 ... 6
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards:
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61000-6-2
IEC/EN 61000-6-3
UL 508
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61000-6-2
IEC/EN 61000-6-3
UL 508

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Output Circuit 300 V AC
Contact Rating UL/CSA:
B300
Connecting Capacity UL/CSA:
Flexible with Ferrule 2x 18-16 AWG
Flexible 2x 18-16 AWG
Rigid 2x 18-16 AWG
Flexible with Ferrule 2x 18-16 AWG
Flexible 2x 18-16 AWG
Rigid 2x 18-16 AWG
Tightening Torque UL/CSA:
7.08 in·lb

Environmental

Ambient Air Temperature:
Operation -20 ... +60 °C
Storage -40 ... +85 °C
Operation -20 ... +60 °C
Storage -40 ... +85 °C
Maximum Operating Altitude Permissible:
Without Derating 2000 m

Material Compliance

Conflict Minerals Reporting Template (CMRT):
SCIP:
7e2afe37-40b2-46f9-933b-88d78bd639a9 Germany
Simplified SCIP:
0f865f55-7192-4d3d-b3a3-9def89e56fe1 Bulgaria
1fa6fca1-8ba6-4e49-9b38-259c4abd6fad Spain
1a9a3314-6437-40bd-9e2a-6dfb6f91a094 Germany
42b6eced-b59e-4745-a37d-076ab620ed64 Finland
f1c8ca6a-103d-4556-a6c7-886dbdea074f Poland
499aa4ba-0edc-436e-acf5-618e3f461656 Czech Republic
85cb361a-ec62-4f80-b6d1-4d9441cbd8a9 Poland
4d6eaec0-e8a9-4a7d-8314-3ec378aa4f9e Denmark
523de355-3d77-4193-8721-5b51afd91c3d Germany
0d4bcb2a-d3ce-4bec-a1e2-62af8e0e2ce4 Estonia
ee5e01eb-65c0-4ab1-b954-deb8a94173a0 Italy
30bbcd09-1d49-4521-9421-36f396002ad0 Germany
2f1b7fe7-5522-4f5a-8f85-34c31217ca6e Netherlands
12a13c37-b099-4210-824b-3206184c5857 Norway
f6759eb0-dd33-4a24-ab4e-fa439d640d1e Greece
d5a2adce-c123-4f72-a3a6-6e7e3f49d4d6 Croatia
73b31fe8-fec8-4f9a-940b-561ceaaa1a45 Sweden
66ee5090-8334-4958-9a42-6ac1d2de7519 France
1b898c44-327d-4d7e-bcae-85690934a2ca Portugal
306c2a13-e0be-4098-9c6a-1b0f80a4fa2b Hungary
921fd37a-5684-4e52-b1f7-0db9c639d5b4 Belgium
c0b4d70a-6f6d-4fb7-a597-f5a61f38e917 France
e5e01b7b-0b6e-419e-a7c0-ebeaa66b413a Poland
38e84872-742f-45b4-96e3-cd0f943799a4 Germany
47918f2b-7274-4797-9cb5-9ab23137e18e Sweden
e32c3249-6834-4c19-ae87-17bfebd384d8 Belgium
60e1f36b-d88f-491f-9a80-0a88bde93a1c Hungary
0f865f55-7192-4d3d-b3a3-9def89e56fe1 Bulgaria
1fa6fca1-8ba6-4e49-9b38-259c4abd6fad Spain
1a9a3314-6437-40bd-9e2a-6dfb6f91a094 Germany
42b6eced-b59e-4745-a37d-076ab620ed64 Finland
f1c8ca6a-103d-4556-a6c7-886dbdea074f Poland
499aa4ba-0edc-436e-acf5-618e3f461656 Czech Republic
85cb361a-ec62-4f80-b6d1-4d9441cbd8a9 Poland
4d6eaec0-e8a9-4a7d-8314-3ec378aa4f9e Denmark
523de355-3d77-4193-8721-5b51afd91c3d Germany
0d4bcb2a-d3ce-4bec-a1e2-62af8e0e2ce4 Estonia

Certificates and Declarations

CB Certificate:
cUL Certificate:

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
23 mm
Package Level 1 Depth / Length:
82 mm
Package Level 1 Height:
82 mm
Package Level 1 Gross Weight:
0.118 kg
Package Level 1 EAN:
4013614349928

External Classifications and Standards

Object Classification Code:
B
ETIM 7:
EC001447 - (Fill) level monitoring relay
ETIM 8:
EC001447 - (Fill) level monitoring relay
ETIM 9:
EC001447 - (Fill) level monitoring relay
eClass:
V11.0 : 27371813
UNSPSC:
39122331
E-Number (Finland):
2712852
E-Number (Norway):
4187266
E-Number (Sweden):
3860803
