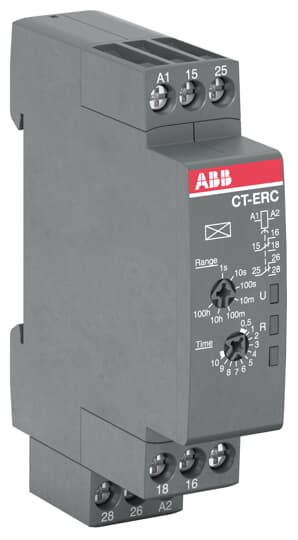

1SVR508100R0100 ABB - CT-ERC.22

1SVR508100R0100 ABB - CT-ERC.22

Ordering

EAN:
4013614534300
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Dimensions

Product Net Width:
17.5 mm
Product Net Height:
80 mm
Product Net Depth / Length:
63 mm
Product Net Weight:
0.068 kg

Technical

Timer Relay Type:
ON-Delay
Time Range:
0.05 s ... 100 h
Rated Control Supply Voltage (Us):
24 ... 240 V AC
24 ... 48 V DC
24 ... 240 V AC
24 ... 48 V DC
Rated Operational Voltage:
Auxiliary Circuit 250 V
Rated Frequency (f):
50 / 60 Hz
DC
50 / 60 Hz
DC
Output:
2 c/o (SPDT) contacts
Terminal Type:
Screw Terminals
Rated Operational Current AC-12 (Ie):
(230 V) 4 A
Rated Operational Current AC-15 (Ie):
(230 V) 3 A
Rated Operational Current DC-12 (Ie):
(24 V) 4 A
Rated Operational Current DC-13 (Ie):
(24 V) 2 A
Minimum Switching Capacity:
12 V
100 mA
12 V
100 mA
Rated Impulse Withstand Voltage (Uimp):
Input Circuit 4 kV
Rated Insulation Voltage (Ui):
Input Circuit / Output Circuit 300 V
Output Circuit 1 / Output Circuit 2 300 V
Input Circuit / Output Circuit 300 V
Output Circuit 1 / Output Circuit 2 300 V
Degree of Protection:
Housing IP50
Terminals IP20
Housing IP50
Terminals IP20
Overvoltage Category:
III
Pollution Degree:
3
Short-Circuit Protective Devices:
Output Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
Output Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
Connecting Capacity:
Flexible 1x 0.5 ... 2.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 1x 0.5 ... 4 mm²
Rigid 2x 0.5 ... 1.5 mm²
Flexible 1x 0.5 ... 2.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 1x 0.5 ... 4 mm²
Rigid 2x 0.5 ... 1.5 mm²
Tightening Torque:
0.5 ... 0.8 N·m
Wire Stripping Length:
7 mm
Recommended Screw Driver:
0.8 x 4
Pozidriv 1
0.8 x 4
Pozidriv 1
Mounting Position:
1 ... 6
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards:
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC 61812-1
UL 508
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC 61812-1
UL 508

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Output Circuit 300 V AC
Contact Rating UL/CSA:
B300
Connecting Capacity UL/CSA:
Flexible 1x 18-14 AWG
Flexible 2x 18-16 AWG
Rigid 1x 20-12 AWG
Rigid 2x 20-16 AWG
Flexible 1x 18-14 AWG
Flexible 2x 18-16 AWG
Rigid 1x 20-12 AWG
Rigid 2x 20-16 AWG
Tightening Torque UL/CSA:
4.43 ... 7.08 in·lb
Pilot Duty UL/CSA:
B300
Flammability According to UL94:
V-2

Environmental

Ambient Air Temperature:
Operation -20 ... +60 °C
Storage -40 ... +85 °C
Operation -20 ... +60 °C
Storage -40 ... +85 °C
Maximum Operating Altitude Permissible:
Without Derating 2000 m

Material Compliance

Conflict Minerals Reporting Template (CMRT):
SCIP:
222cf78e-cdfc-40a2-9eaf-5ff8ffbf0f88 Germany
Simplified SCIP:
5cd60c10-ac15-45f7-bbae-b423aa5e44f5 Germany
eaffcc56-8d45-4fbf-8ed2-2378e0707d85 Belgium
aaeb2729-b0b8-438d-a706-5d259d249b44 Finland
2b93172b-d3ea-4100-9935-cc0b821ac6d1 Norway
fdcd34b3-a6d1-40b9-bea4-a162317bb47c Italy
d7c5b913-87df-40da-a13d-f026190b72e1 Portugal
6577980c-3853-49e4-b780-5209e06eaeae Poland
af3e5ab8-c540-467c-9813-4354a59815e8 Greece
1f28669f-21b7-449c-80dc-4362863420c4 Bulgaria
f2febfc2-308d-4c52-9851-aec1dd5057fd Sweden
31b87bce-11a5-4fe5-a5d3-0d6c1b4e7b15 Estonia
77b1a5f9-81c5-40f0-b113-7fa2a314d750 Belgium
b1301834-a47c-4ad6-9009-704458e43c70 Croatia
5937ba91-c0f7-4bb7-a555-54ae368eb52a Germany
5bcee981-bc57-4c45-b6f4-b725ed16cd10 Denmark
5ffaa7a6-bd05-45e9-a94f-3d9dd0df8801 Czech Republic
521c48a5-3e07-4045-b2fc-d7eb23a9c094 Germany
e8a5807b-069c-4eca-be3f-127bac614bc4 Netherlands
e6495f3f-e0cd-41f0-8c34-3224df9d5ff7 Hungary
b7440445-7538-4309-a01f-5dc64949d5a9 Poland
e9307603-a1dc-49f8-9040-b9a088ad3be8 Poland
723e6ae0-69b4-4a3b-a567-de145f561708 France
dfa0e161-e177-46fc-a5a6-7d93160a31ee Sweden
f3d666f7-2a8f-45d8-9ec7-c3173246ec96 Germany
7f6896fa-75da-4620-9c15-0649c1294d2f Hungary
c9e118ce-3f6e-46fa-99be-eed62f1e21bf Spain
ae51837e-4f81-4bfa-ab4b-57229b377549 France
5cd60c10-ac15-45f7-bbae-b423aa5e44f5 Germany
eaffcc56-8d45-4fbf-8ed2-2378e0707d85 Belgium
aaeb2729-b0b8-438d-a706-5d259d249b44 Finland
2b93172b-d3ea-4100-9935-cc0b821ac6d1 Norway
fdcd34b3-a6d1-40b9-bea4-a162317bb47c Italy
d7c5b913-87df-40da-a13d-f026190b72e1 Portugal
6577980c-3853-49e4-b780-5209e06eaeae Poland
af3e5ab8-c540-467c-9813-4354a59815e8 Greece
1f28669f-21b7-449c-80dc-4362863420c4 Bulgaria
f2febfc2-308d-4c52-9851-aec1dd5057fd Sweden

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
89 mm
Package Level 1 Depth / Length:
20 mm
Package Level 1 Height:
65 mm
Package Level 1 Gross Weight:
0.081 kg
Package Level 1 EAN:
4013614534300

External Classifications and Standards

Object Classification Code:
K
ETIM 7:
EC001439 - Timer relay
ETIM 8:
EC001439 - Timer relay
ETIM 9:
EC001439 - Timer relay
eClass:
V11.0 : 27371605
UNSPSC:
39122329
E-Number (Finland):
2712828
E-Number (Norway):
4189319
E-Number (Sweden):
4030219
