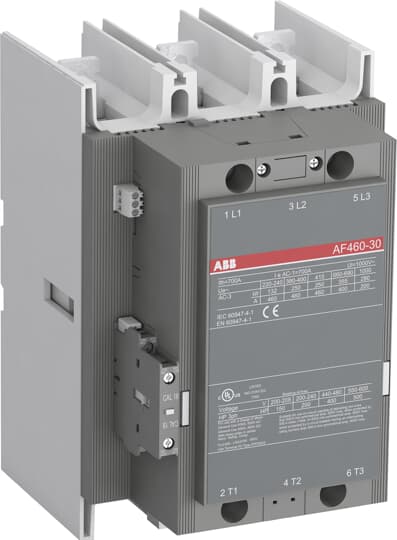

The ABB AF460-30-11-70 is a 3-pole contactor designed for controlling three-phase motors and switching power circuits in industrial applications up to 1000 V AC or 600 V DC. It features an electronically controlled coil interface with a wide control voltage range of 100-250 V AC/DC, enabling operation across 50/60 Hz frequencies and managing voltage fluctuations while reducing panel energy consumption. The contactor is capable of controlling motors up to 250 kW at 400 V AC or 400 hp at 480 V UL, with a rated current of 460 A under AC-3 duty and switching capacity up to 700 A under AC-1 duty. It comes with pre-mounted auxiliary contacts (1NO+1NC) and main circuit bars, built-in surge protection, and block-type design that allows easy extension with additional auxiliary contact blocks and accessories.
Item Details
- Brand Name: ABB
- Manufacturer: ABB
- Item Type Name: 3-Pole Contactor
- Product Family / Series: AF series
- Model: AF460-30-11-70
- Part Number: 1SFL597001R7011
Product Specifications
- number_of_poles: 3
- rated_current_AC3: 460 A
- rated_current_AC1: 700 A
- motor_rating_400V_AC3: 250 kW
- motor_rating_480V_UL: 400 hp
- coil_voltage_AC: 100-250 V AC
- coil_frequency: 50/60 Hz
- coil_voltage_DC: 100-250 V DC
- max_voltage_IEC: 1000 V AC
- max_voltage_UL: 600 V DC
- auxiliary_contacts: 1NO + 1NC
- coil_type: Electronic coil interface
- connection_type: Lugs/bars
Additional Details
- Certifications / Approvals: UL Listed
- Recyclability Rate: 63.1%
- Recycled Metal Content: 37%
- Etim Class: EC000066 - Magnet contactor, AC-switching
- Ean: 7320500217658
Measurements
- Weight: 12 kg
- Package Dimensions: 280 mm × 375 mm × 310 mm
