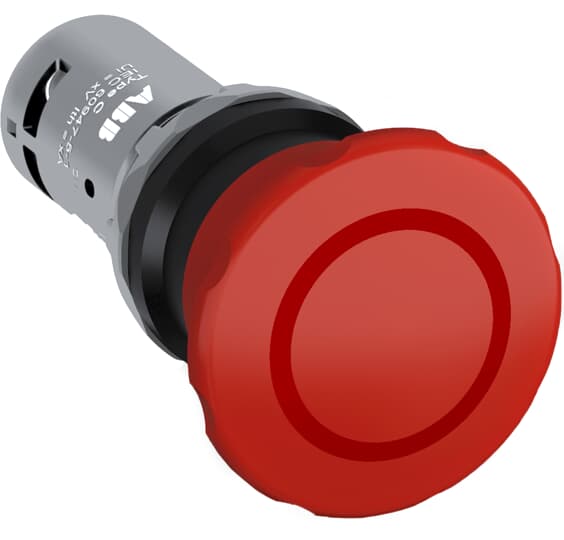

1SFA619551R1071 ABB - CE4P-10R-11

Ordering

Minimum Order Quantity:
10 piece
Customs Tariff Number:
8536508090

Dimensions

Product Net Width:
0.04 m
Product Net Height:
0.04 m
Product Net Depth / Length:
0.073 m
Product Net Weight:
0.038 kg

Technical

Ambient Air Temperature:
Operation -25 ... +70 °C
Storage -40 ... +85 °C
Operation -25 ... +70 °C
Storage -40 ... +85 °C
Color:
Red
Actuator Type:
Mushroom 40 mm
Bezel Material:
n/a
Illumination:
Non-illuminated
Function:
Maintained
Sub-Function:
Pull release
Number of Auxiliary Contacts NC:
1
Number of Auxiliary Contacts NO:
1
Enclosure Type NEMA:
Type1
Type12
Type13
Type3R
Type4
Type4X
Type1
Type12
Type13
Type3R
Type4
Type4X
Pollution Degree:
3
Rated Insulation Voltage (Ui):
300 V
Rated Impulse Withstand Voltage (Uimp):
6 kV
Rated Frequency (f):
50 / 60 Hz
Rated Operational Voltage:
24 ... 300 V
Rated Operational Current DC-13 (Ie):
(24 V) 0.3 A
(125 V) 0.2 A
(24 V) 0.3 A
(125 V) 0.2 A
Rated Operational Current AC-15 (Ie):
(240 V) 2 A
(220 / 240 V) 2 A
(240 V) 2 A
(220 / 240 V) 2 A
Power Loss:
Maximum 5 W
Mechanical Durability:
50000 cycle
Connecting Capacity:
Flexible with Ferrule 1 x 0.5...1.5 mm²
Flexible with Ferrule 2 x 0.5...1.5 mm²
Flexible with Insulated Ferrule 1 x 0.5...1.5 mm²
Flexible with Insulated Ferrule 2 x 0.5...1.5 mm²
Flexible 1 x 0.5 ...1.5 mm²
Flexible 2 x 0.5 ...1.5 mm²
Solid 1 x 0.5...1.5 mm²
Solid 2 x 0.5...1.5 mm²
Flexible with Ferrule 1 x 0.5...1.5 mm²
Flexible with Ferrule 2 x 0.5...1.5 mm²
Flexible with Insulated Ferrule 1 x 0.5...1.5 mm²
Flexible with Insulated Ferrule 2 x 0.5...1.5 mm²
Flexible 1 x 0.5 ...1.5 mm²
Flexible 2 x 0.5 ...1.5 mm²
Solid 1 x 0.5...1.5 mm²
Solid 2 x 0.5...1.5 mm²
Connection Type:
Screw Clamp
Terminal Type:
Screw Terminals
Tightening Torque:
0.8 N·m
Wire Stripping Length:
6 mm

Technical UL/CSA

Connecting Capacity UL/CSA:
1x 22...14 AWG
2x 22...14 AWG
1x 22...14 AWG
2x 22...14 AWG

Environmental

Degree of Protection:
Front IP66
Front IP67
Front IP69K
Terminals IP20
Front IP66
Front IP67
Front IP69K
Terminals IP20

Material Compliance

Conflict Minerals Reporting Template (CMRT):
REACH Declaration:
RoHS Information:
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP:
2dac81d1-2d94-4dcd-8f3f-0f0e786c1067 Sweden
Simplified SCIP:
91593f33-dab9-4ec8-b5df-d307612f49d2 Germany
781a7d2c-acac-40c3-aeca-a231ca2e16fc Italy
6915b021-17c1-4079-b034-b425ed38e57f Estonia
454f3bea-67d0-4240-94d8-1d3f00b21f72 Portugal
614f6cd3-abee-40f9-9d1b-b7b39de2dd1b Bulgaria
77cb45c6-faea-441f-b2bb-844599f6a751 Sweden
772b9489-c11a-48c2-b549-4ece3a229ecb Spain
4cfa86d7-170a-4874-9d16-954634fad45e Belgium
10cc3508-a105-4af1-bd02-7f20712bb50d Hungary
91513d51-2f05-4202-b009-901fbd9ec329 Poland
ed210ff0-0ba0-4bf4-a812-87e363a5c238 France
2c1bf1d3-f361-4984-ad87-f128335073f8 Germany
2003098f-9255-402a-ad7c-a1e050268be6 Germany
9ea13a47-2ab6-4c0f-a01d-e95ec3e1f107 France
1cfa2e38-96df-4c4e-aacf-49008587df65 Croatia
b8cd9f4d-1356-4de7-95cd-eddeee552fc0 Poland
d1549a8b-d792-4826-abd2-86df57029c68 Czech Republic
0de4672d-8a0e-4961-a994-63da623a9cee Netherlands
4a6e15c8-d475-4d92-8262-5e05a8c5a371 Hungary
ba32b31d-81a8-4266-97f4-9cec02608f52 Greece
f8a475f1-3212-4c61-9339-cfe0fb2f03cb Poland
7a7f71b5-47f2-4ee6-8f87-aa7b29a7f18d Norway
fc3b271c-e3ed-41b6-a827-9492cc086c53 Finland
fce1cf1b-49e3-4502-910b-add15266c813 Belgium
e4163f38-69f0-4211-80bc-75cac312f102 Germany
3246b63d-93fc-4b8a-8f66-a9cbc675497c Denmark
6cd2b4b2-e411-412b-ab1f-8b0b796581d3 Germany
91593f33-dab9-4ec8-b5df-d307612f49d2 Germany
781a7d2c-acac-40c3-aeca-a231ca2e16fc Italy
6915b021-17c1-4079-b034-b425ed38e57f Estonia
454f3bea-67d0-4240-94d8-1d3f00b21f72 Portugal
614f6cd3-abee-40f9-9d1b-b7b39de2dd1b Bulgaria
77cb45c6-faea-441f-b2bb-844599f6a751 Sweden
772b9489-c11a-48c2-b549-4ece3a229ecb Spain
4cfa86d7-170a-4874-9d16-954634fad45e Belgium
10cc3508-a105-4af1-bd02-7f20712bb50d Hungary
91513d51-2f05-4202-b009-901fbd9ec329 Poland
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Container Information

Package Level 1 Units:
bag 1 piece
Package Level 1 Width:
0.165 m
Package Level 1 Depth / Length:
0.09 m
Package Level 1 Height:
0.045 m
Package Level 1 Gross Weight:
0.04 kg
Package Level 1 EAN:
7320500260869

External Classifications and Standards

Object Classification Code:
S
ETIM 6:
EC002034 - Emergency stop complete
ETIM 7:
EC002034 - Emergency stop complete
ETIM 8:
EC002034 - Emergency stop complete
eClass:
V11.0 : 27371244
UNSPSC:
39122216
IDEA Granular Category Code (IGCC):
5212 >> Push button for distribution board
E-Number (Finland):
2313546
E-Number (Norway):
4372815
E-Number (Sweden):
3711524
Price on request
