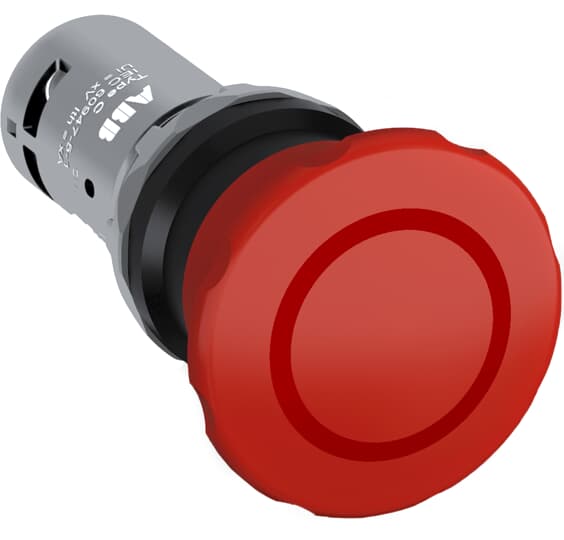

1SFA619551R1051 ABB - CE4P-10R-02

Ordering

Minimum Order Quantity:
10 piece
Customs Tariff Number:
8536508090

Dimensions

Product Net Width:
0.04 m
Product Net Height:
0.04 m
Product Net Depth / Length:
0.073 m
Product Net Weight:
0.036 kg

Technical

Ambient Air Temperature:
Operation -25 ... +70 °C
Storage -40 ... +85 °C
Operation -25 ... +70 °C
Storage -40 ... +85 °C
Color:
Red
Actuator Type:
Mushroom 40 mm
Bezel Material:
n/a
Illumination:
Non-illuminated
Function:
Maintained
Sub-Function:
Pull release
Number of Auxiliary Contacts NC:
2
Number of Auxiliary Contacts NO:
0
Enclosure Type NEMA:
Type1
Type12
Type13
Type3R
Type4
Type4X
Type1
Type12
Type13
Type3R
Type4
Type4X
Pollution Degree:
3
Rated Insulation Voltage (Ui):
300 V
Rated Impulse Withstand Voltage (Uimp):
6 kV
Rated Frequency (f):
50 / 60 Hz
Rated Operational Voltage:
24 ... 300 V
Rated Operational Current DC-13 (Ie):
(24 V) 0.3 A
(125 V) 0.2 A
(24 V) 0.3 A
(125 V) 0.2 A
Rated Operational Current AC-15 (Ie):
(240 V) 2 A
(220 / 240 V) 2 A
(240 V) 2 A
(220 / 240 V) 2 A
Power Loss:
Maximum 5 W
Mechanical Durability:
50000 cycle
Connecting Capacity:
Flexible with Ferrule 1 x 0.5...1.5 mm²
Flexible with Ferrule 2 x 0.5...1.5 mm²
Flexible with Insulated Ferrule 1 x 0.5...1.5 mm²
Flexible with Insulated Ferrule 2 x 0.5...1.5 mm²
Flexible 1 x 0.5 ...1.5 mm²
Flexible 2 x 0.5 ...1.5 mm²
Solid 1 x 0.5...1.5 mm²
Solid 2 x 0.5...1.5 mm²
Flexible with Ferrule 1 x 0.5...1.5 mm²
Flexible with Ferrule 2 x 0.5...1.5 mm²
Flexible with Insulated Ferrule 1 x 0.5...1.5 mm²
Flexible with Insulated Ferrule 2 x 0.5...1.5 mm²
Flexible 1 x 0.5 ...1.5 mm²
Flexible 2 x 0.5 ...1.5 mm²
Solid 1 x 0.5...1.5 mm²
Solid 2 x 0.5...1.5 mm²
Connection Type:
Screw Clamp
Terminal Type:
Screw Terminals
Tightening Torque:
0.8 N·m
Wire Stripping Length:
6 mm

Technical UL/CSA

Connecting Capacity UL/CSA:
1x 22...14 AWG
2x 22...14 AWG
1x 22...14 AWG
2x 22...14 AWG

Environmental

Degree of Protection:
Front IP66
Front IP67
Front IP69K
Terminals IP20
Front IP66
Front IP67
Front IP69K
Terminals IP20

Material Compliance

Conflict Minerals Reporting Template (CMRT):
REACH Declaration:
RoHS Information:
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP:
255ca8b3-4eb7-4008-be77-46d7b59242c7 Sweden
Simplified SCIP:
4f82e988-c18f-4bae-a9da-9dd7e5e7c7db Germany
89c9f297-1288-44ee-9f27-ed1b6d19d2fb Germany
45904261-3163-4d11-b789-afd06640c47b Belgium
557d42cd-3eb0-49b6-a450-c02d13fec99f Germany
7afaed03-1ab5-4885-aa2b-c2a05e1e3c77 Denmark
21550226-37b3-491e-bf77-387360855e7b Poland
91173731-731e-4f9f-a56d-fdc4b5587d6b Norway
0e43d126-ae9a-439f-bedd-3a73e764938b Italy
21329612-2442-4e31-9ccf-76a8ea3f8f92 Finland
c4a8fa34-d317-4163-9994-9b07001109e3 Poland
ca14bf69-a868-4a73-8ac6-63eb1e6c8c97 Croatia
6b417091-4c3c-40c4-8526-28704cfc732f Estonia
d65a6080-888f-4027-ae9a-ac7c7a4d785a Bulgaria
4c89007f-e637-411f-b072-ca62d378f728 Portugal
0a518f5e-8a60-4093-a6ad-f91876e1f52c Hungary
f150d8bf-7bd8-45ec-82f2-4412b1e6e89c Greece
61145203-3056-4886-8b00-3c718ac6ee82 Netherlands
738d2e3e-759e-42a8-8a58-ac70e418b5c1 Czech Republic
e65ad8b3-d9a8-4fcb-97e2-1481af806815 Belgium
343e0d59-e577-48c2-954c-3b75ee061244 France
bd68a018-3193-4b7d-8230-013ab8ba428f Germany
bb3c6c1f-f1c6-4109-8c99-637b87a5dac4 Germany
3d455ae2-eee7-4beb-9b3a-e74273afaaa0 Hungary
e049cb7a-9b64-46f0-a82f-5810f2143147 Spain
ab2e918a-3b74-47b4-88f5-20ceebca0294 France
259786bb-f8f0-43f2-ad68-9cce1434fadc Poland
2d9c0202-b52c-43bf-b9ba-457ce4353ff3 Sweden
4f82e988-c18f-4bae-a9da-9dd7e5e7c7db Germany
89c9f297-1288-44ee-9f27-ed1b6d19d2fb Germany
45904261-3163-4d11-b789-afd06640c47b Belgium
557d42cd-3eb0-49b6-a450-c02d13fec99f Germany
7afaed03-1ab5-4885-aa2b-c2a05e1e3c77 Denmark
21550226-37b3-491e-bf77-387360855e7b Poland
91173731-731e-4f9f-a56d-fdc4b5587d6b Norway
0e43d126-ae9a-439f-bedd-3a73e764938b Italy
21329612-2442-4e31-9ccf-76a8ea3f8f92 Finland
c4a8fa34-d317-4163-9994-9b07001109e3 Poland
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Container Information

Package Level 1 Units:
bag 1 piece
Package Level 1 Width:
0.165 m
Package Level 1 Depth / Length:
0.09 m
Package Level 1 Height:
0.045 m
Package Level 1 Gross Weight:
0.039 kg
Package Level 1 EAN:
7320500260807

External Classifications and Standards

Object Classification Code:
S
ETIM 6:
EC002034 - Emergency stop complete
ETIM 7:
EC002034 - Emergency stop complete
ETIM 8:
EC002034 - Emergency stop complete
eClass:
V11.0 : 27371244
UNSPSC:
39122216
IDEA Granular Category Code (IGCC):
5212 >> Push button for distribution board
E-Number (Finland):
2313544
E-Number (Norway):
4372780
E-Number (Sweden):
3711522
Price on request
Ask for quote
