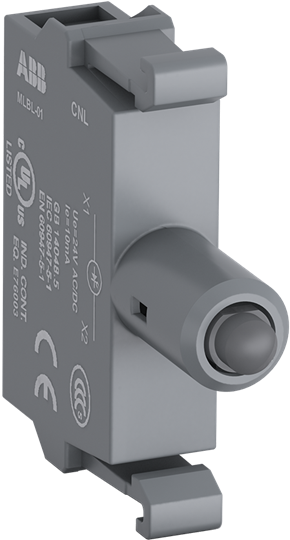

1SFA611621R1003 ABB - MLBL-00Y

Ordering

Minimum Order Quantity:
10 piece
Customs Tariff Number:
85369001

Dimensions

Product Net Width:
0.01 m
Product Net Height:
0.044 m
Product Net Depth / Length:
0.042 m
Product Net Weight:
0.01 kg

Technical

Ambient Air Temperature:
Operation -25 ... +70 °C
Storage -40 ... +85 °C
Operation -25 ... +70 °C
Storage -40 ... +85 °C
Color:
Yellow
Illumination:
Illuminated
Lamp Type:
12V DC, integrated LED
Mounting Type:
Front mounting
Rated Operational Voltage:
12 V DC
Connecting Capacity:
Flexible with Ferrule 1 x 0.75...2.5 mm²
Flexible with Ferrule 2 x 0.75...2.5 mm²
Flexible with Insulated Ferrule 1 x 0.75...2.5 mm²
Flexible with Insulated Ferrule 2 x 0.75...2.5 mm²
Flexible 1 x 0.75 ... 2.5 mm²
Flexible 2 x 0.75 ... 2.5 mm²
Solid 1 x 0.75...2.5 mm²
Solid 2 x 0.75...2.5 mm²
Flexible with Ferrule 1 x 0.75...2.5 mm²
Flexible with Ferrule 2 x 0.75...2.5 mm²
Flexible with Insulated Ferrule 1 x 0.75...2.5 mm²
Flexible with Insulated Ferrule 2 x 0.75...2.5 mm²
Flexible 1 x 0.75 ... 2.5 mm²
Flexible 2 x 0.75 ... 2.5 mm²
Solid 1 x 0.75...2.5 mm²
Solid 2 x 0.75...2.5 mm²
Connection Type:
Screw Clamp
Terminal Type:
Screw Terminals
Tightening Torque:
0.9 N·m
Wire Stripping Length:
8 mm
Suitable For:
MCBH-00
MCBH5-00
MP1
MP2
MP3
MP4
MPMT3
MPMP3
M2SS1
M2SS2
M2SS3
M2SS4
M2SS5
M2SS6
M3SS1
M3SS2
M3SS3
M3SS4
M3SS5
M3SS6
M3SS7
M3SS8
MPM1
MCBH-00
MCBH5-00
MP1
MP2
MP3
MP4
MPMT3
MPMP3
M2SS1
M2SS2
Suitable for Product Class:
Pilot Devices

Technical UL/CSA

Connecting Capacity UL/CSA:
1x 18...14 AWG
2x 18...14 AWG
1x 18...14 AWG
2x 18...14 AWG

Environmental

Degree of Protection:
Terminals IP20

Material Compliance

Conflict Minerals Reporting Template (CMRT):
REACH Declaration:
RoHS Information:
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

CB Certificate:
Declaration of Conformity - UKCA:

Container Information

Package Level 1 Units:
bag 10 piece
Package Level 1 Width:
0.135 m
Package Level 1 Depth / Length:
0.155 m
Package Level 1 Height:
0.025 m
Package Level 1 Gross Weight:
0.11 kg
Package Level 1 EAN:
7320500373118

External Classifications and Standards

Object Classification Code:
E
ETIM 6:
EC000204 - Lamp holder block for control circuit devices
ETIM 7:
EC000204 - Lamp holder block for control circuit devices
ETIM 8:
EC000204 - Lamp holder block for control circuit devices
eClass:
V11.0 : 27371209
UNSPSC:
39122221
IDEA Granular Category Code (IGCC):
5219 >> Switch part or accessory
E-Number (Finland):
2315742
E-Number (Sweden):
3705607
