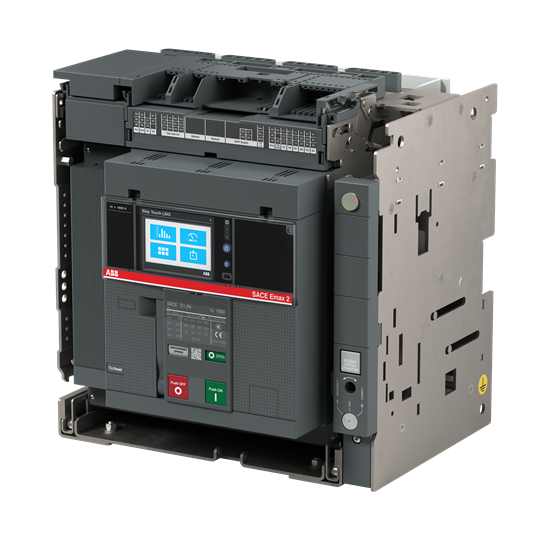

1SDA072825R1 ABB - E1.2N 1250 Ekip Touch LSI 4p WMP

ABB EcoSolutions

ABB EcoSolutions:
Yes
ABB Site Meeting Group Waste To Landfill Target:
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 76.4 %

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
11dbcd98-3542-40ce-9d34-4a4deca75e7c Italy
Simplified SCIP:
962697a4-dd9d-4ac2-aa65-18e406a8921d Spain
aa84929e-a826-4468-b661-c9ec856d0dea Estonia
060aace2-86f4-4482-8150-363b2b1e37fd France
9e6ac0b0-c4c4-4dae-b74c-e2e08a439db4 Bulgaria
3d31d31f-ced9-48dc-93d4-dd14bf148fb3 Hungary
c888b663-7051-40a9-87b7-a5b67804052d Czech Republic
873eacb5-e715-4ed8-9060-e004ac6404b1 Poland
aa84929e-a826-4468-b661-c9ec856d0dea Estonia
43a17f6e-efb7-4eb9-a372-d8de04de0d02 Germany
2e79388c-da02-4b02-b5de-f3fec5a55635 Sweden
04b26a0d-eb30-4f2a-8521-5749b14d46f7 France
6dbbd01a-458f-4eb4-a608-6615eec44228 Poland
fe4404bf-b214-403d-8f10-eab5c4761a46 Sweden
3e31b35d-3488-4ac9-8a56-a6d5864eb353 Greece
d4c6386c-53d2-49c3-9b2e-eea03ee03e55 Belgium
962697a4-dd9d-4ac2-aa65-18e406a8921d Spain
9bc3d37f-9227-4db4-bf1d-86ec05dac2b6 Hungary
060aace2-86f4-4482-8150-363b2b1e37fd France
6a60e9eb-181f-43d0-a41e-c3d8ef74f127 Germany
8cfec2e0-406b-4b78-a4f5-309c1cbc5368 Norway
1623e3ec-8d3f-4ca0-a11b-e771d40a9073 Belgium
d4c6386c-53d2-49c3-9b2e-eea03ee03e55 Belgium
2bce1a1f-d340-4a46-aa14-8c2aaf1eab9d Germany
82ce6082-5f20-4fc0-8ce1-0c9c91454cf7 Denmark
9e6ac0b0-c4c4-4dae-b74c-e2e08a439db4 Bulgaria
fe4404bf-b214-403d-8f10-eab5c4761a46 Sweden
749556ed-fd65-4f75-aee1-ff0eabc10933 Finland
11feb98b-c92e-4dda-b360-b56d64a08293 Germany
1623e3ec-8d3f-4ca0-a11b-e771d40a9073 Belgium
4ca41433-eca7-476b-b592-0a7eb78d7c76 Croatia
5b6fb3de-a4c1-48e4-8740-6916dfcbf8eb Germany
2bce1a1f-d340-4a46-aa14-8c2aaf1eab9d Germany
3e31b35d-3488-4ac9-8a56-a6d5864eb353 Greece
82ce6082-5f20-4fc0-8ce1-0c9c91454cf7 Denmark
749556ed-fd65-4f75-aee1-ff0eabc10933 Finland
9bc3d37f-9227-4db4-bf1d-86ec05dac2b6 Hungary
f2afbc8c-434c-4ac2-bfd9-e623e72151bb Poland
6dbbd01a-458f-4eb4-a608-6615eec44228 Poland
3d31d31f-ced9-48dc-93d4-dd14bf148fb3 Hungary
43a17f6e-efb7-4eb9-a372-d8de04de0d02 Germany
4ca41433-eca7-476b-b592-0a7eb78d7c76 Croatia
8612518a-06fe-4981-8a83-8ba11ee8432a Netherlands
2e79388c-da02-4b02-b5de-f3fec5a55635 Sweden
6a60e9eb-181f-43d0-a41e-c3d8ef74f127 Germany
8cfec2e0-406b-4b78-a4f5-309c1cbc5368 Norway
5b6fb3de-a4c1-48e4-8740-6916dfcbf8eb Germany
11feb98b-c92e-4dda-b360-b56d64a08293 Germany
04b26a0d-eb30-4f2a-8521-5749b14d46f7 France
c888b663-7051-40a9-87b7-a5b67804052d Czech Republic
c140860c-dbce-4368-8057-abe901e5a200 Portugal
f2afbc8c-434c-4ac2-bfd9-e623e72151bb Poland
8612518a-06fe-4981-8a83-8ba11ee8432a Netherlands
873eacb5-e715-4ed8-9060-e004ac6404b1 Poland
c140860c-dbce-4368-8057-abe901e5a200 Portugal
962697a4-dd9d-4ac2-aa65-18e406a8921d Spain
aa84929e-a826-4468-b661-c9ec856d0dea Estonia
060aace2-86f4-4482-8150-363b2b1e37fd France
9e6ac0b0-c4c4-4dae-b74c-e2e08a439db4 Bulgaria
3d31d31f-ced9-48dc-93d4-dd14bf148fb3 Hungary
c888b663-7051-40a9-87b7-a5b67804052d Czech Republic
873eacb5-e715-4ed8-9060-e004ac6404b1 Poland
aa84929e-a826-4468-b661-c9ec856d0dea Estonia
43a17f6e-efb7-4eb9-a372-d8de04de0d02 Germany
2e79388c-da02-4b02-b5de-f3fec5a55635 Sweden

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
ZANREHAE000A000000XX
EAN:
8015644766757
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
348 mm
Product Net Height:
363.5 mm
Product Net Depth / Length:
271 mm
Product Net Weight:
20 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
350 mm
Package Level 1 Height:
350 mm
Package Level 1 Depth / Length:
330 mm
Package Level 1 Gross Weight:
23 kg
Package Level 1 EAN:
8015644766757

Additional Information

Product Main Type:
SACE Emax 2
Product Name:
Air Circuit Breaker
Product Type:
Air Circuit Breaker
Version:
W
CAD Dimensional Drawing:

Technical

Current Type:
AC
Electrical Durability:
Ue =< 440 V 8000 cycle
Ue = 500 ... 690 V 6500 cycle
30 cycles per hour
Ue =< 440 V 8000 cycle
Ue = 500 ... 690 V 6500 cycle
30 cycles per hour
Mechanical Durability:
20000 cycle
60 cycles per hour
20000 cycle
60 cycles per hour
Neutral Pole Current ([%Iu]):
100 %
Number of Poles:
4P
Power Loss:
244 W
Rated Current (In):
1250 A
Rated Impulse Withstand Voltage (Uimp):
acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui):
AC 1000 V
Rated Operational Voltage:
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 66 kA
(230 V AC) 66 kA
(380 V AC) 66 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 50 kA
(660 V AC) 50 kA
(690 V AC) 50 kA
(220 V AC) 66 kA
(230 V AC) 66 kA
(380 V AC) 66 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 50 kA
(660 V AC) 50 kA
(690 V AC) 50 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics):
100 %
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 50 kA
for 3 s 30 kA
for 1 s 50 kA
for 3 s 30 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(400 V AC) 66 kA
(415 V AC) 66 kA
(440 V AC) 66 kA
(500 V AC) 50 kA
(525 V AC) 50 kA
(690 V AC) 50 kA
(400 V AC) 66 kA
(415 V AC) 66 kA
(440 V AC) 66 kA
(500 V AC) 50 kA
(525 V AC) 50 kA
(690 V AC) 50 kA
Rated Uninterrupted Current (Iu):
1250 A
Rated Voltage (Ur):
690 V
Release:
Ekip Touch LSI
Release Type:
EL
Short-Circuit Performance Level:
N
Standards:
IEC
Sub-type:
E1.2
Suitable for IT Networks:
Yes, 690V

Certificates and Declarations

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC):
4926 >> Air circuit breakers
Object Classification Code:
Q
UNSPSC:
39121615
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
Price on request
