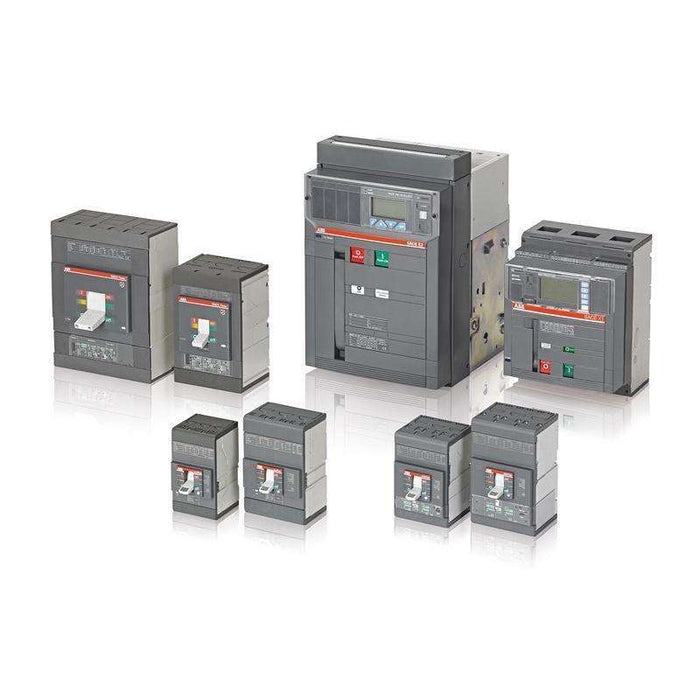

1SDA072745R1 ABB

ABB EcoSolutions

ABB EcoSolutions:
Yes
ABB Site Meeting Group Waste To Landfill Target:
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 76.4 %

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
5ef20aa1-6567-4e7c-8e00-5897e6d188cb Italy
Simplified SCIP:
6a76bb4e-d808-4f73-bb6a-7b9a47568a09 Germany
2ac79889-ccaf-4999-8dd3-4f5c077629e6 Spain
08cecc0b-26bd-49b3-bbdb-f7bdea55755e Belgium
666cd9a4-3133-4dec-b87c-24793facf5f7 France
6eeeadc4-3453-4417-a63a-a90287e9d588 Sweden
b461b90b-4f3e-44be-8ebd-88429d5abd01 Portugal
14037e80-fc0b-41fa-92ac-ffcec4610ae0 Bulgaria
e2c28ff2-71fc-43d1-8209-372aa22950be Czech Republic
a7aa4df7-a5d4-4ee3-8e01-3f4053290d5b Poland
13ab9888-e9b5-496e-9200-0035c65a0b92 Poland
b30d1aa4-537a-4302-bd25-5207954f0ddf Hungary
3fdc7575-c8e1-4415-8148-fd410a7eccb8 Norway
e4fc06a8-104c-447e-baee-c207a1c47008 Poland
e33baa1b-af21-407a-86fd-263bd5b28734 Germany
13e8e5fb-d06e-4a52-939c-5e1602748546 Belgium
fb2ef27a-9a68-4ad9-b0f3-98654607b8a2 Netherlands
f9056a5f-6361-4adb-98d5-0bbaeb3250ec Finland
7b44bae9-f5c4-4891-84b3-d923d04a6b6e Estonia
a360d26c-d38c-4529-b69b-604e9a67f783 Greece
2f0a20a4-fb96-4f97-8230-f07e90f35978 Sweden
b1c7a650-cea5-4909-9a88-acac1c6c7389 Germany
744e1821-ba29-4492-aaf7-9eadb9206d37 Denmark
f68f3b42-8f85-4e43-87de-132e6a9da055 Germany
52527dee-2d11-4c10-9f7a-2a1cc86153cf Germany
e628e59d-83ec-47cc-8921-9d90d1185608 France
4d87da8e-2a28-48ac-8a2c-ac1cb8e87980 Croatia
956bcfd1-55eb-44f1-bc62-d6118cdd3db6 Hungary
6a76bb4e-d808-4f73-bb6a-7b9a47568a09 Germany
2ac79889-ccaf-4999-8dd3-4f5c077629e6 Spain
08cecc0b-26bd-49b3-bbdb-f7bdea55755e Belgium
666cd9a4-3133-4dec-b87c-24793facf5f7 France
6eeeadc4-3453-4417-a63a-a90287e9d588 Sweden
b461b90b-4f3e-44be-8ebd-88429d5abd01 Portugal
14037e80-fc0b-41fa-92ac-ffcec4610ae0 Bulgaria
e2c28ff2-71fc-43d1-8209-372aa22950be Czech Republic
a7aa4df7-a5d4-4ee3-8e01-3f4053290d5b Poland
13ab9888-e9b5-496e-9200-0035c65a0b92 Poland

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
ZANPEFAE000A000000XX
EAN:
8015644765958
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
348 mm
Product Net Height:
363.5 mm
Product Net Depth / Length:
271 mm
Product Net Weight:
20 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
350 mm
Package Level 1 Height:
350 mm
Package Level 1 Depth / Length:
330 mm
Package Level 1 Gross Weight:
23 kg
Package Level 1 EAN:
8015644765958

Additional Information

Product Main Type:
SACE Emax 2
Product Name:
Air Circuit Breaker
Product Type:
Air Circuit Breaker
Version:
W
CAD Dimensional Drawing:

Technical

Current Type:
AC
Electrical Durability:
Ue =< 440 V 8000 cycle
Ue = 500 ... 690 V 8000 cycle
30 cycles per hour
Ue =< 440 V 8000 cycle
Ue = 500 ... 690 V 8000 cycle
30 cycles per hour
Mechanical Durability:
20000 cycle
60 cycles per hour
20000 cycle
60 cycles per hour
Neutral Pole Current ([%Iu]):
100 %
Number of Poles:
4P
Power Loss:
100 W
Rated Current (In):
800 A
Rated Impulse Withstand Voltage (Uimp):
acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui):
AC 1000 V
Rated Operational Voltage:
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 66 kA
(230 V AC) 66 kA
(380 V AC) 66 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 50 kA
(660 V AC) 50 kA
(690 V AC) 50 kA
(220 V AC) 66 kA
(230 V AC) 66 kA
(380 V AC) 66 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 50 kA
(660 V AC) 50 kA
(690 V AC) 50 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics):
100 %
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 50 kA
for 3 s 30 kA
for 1 s 50 kA
for 3 s 30 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(400 V AC) 66 kA
(415 V AC) 66 kA
(440 V AC) 66 kA
(500 V AC) 50 kA
(525 V AC) 50 kA
(690 V AC) 50 kA
(400 V AC) 66 kA
(415 V AC) 66 kA
(440 V AC) 66 kA
(500 V AC) 50 kA
(525 V AC) 50 kA
(690 V AC) 50 kA
Rated Uninterrupted Current (Iu):
800 A
Rated Voltage (Ur):
690 V
Release:
Ekip Touch LSI
Release Type:
EL
Short-Circuit Performance Level:
N
Standards:
IEC
Sub-type:
E1.2
Suitable for IT Networks:
Yes, 690V

Certificates and Declarations

ATEX Certificate:
CSA Certificate:
CSA Certificate (Intrinsic Safe):
Declaration of Conformity - CE:
UL Certificate:
VDE Certificate:
Mechanical Drawings:
Instructions and Manuals:

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC):
4926 >> Air circuit breakers
Object Classification Code:
Q
UNSPSC:
39121615
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
Price on request
Ask for quote


Notify Me When Available

ABB EcoSolutions

ABB EcoSolutions:
Yes
ABB Site Meeting Group Waste To Landfill Target:
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 76.4 %

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
5ef20aa1-6567-4e7c-8e00-5897e6d188cb Italy
Simplified SCIP:
6a76bb4e-d808-4f73-bb6a-7b9a47568a09 Germany
2ac79889-ccaf-4999-8dd3-4f5c077629e6 Spain
08cecc0b-26bd-49b3-bbdb-f7bdea55755e Belgium
666cd9a4-3133-4dec-b87c-24793facf5f7 France
6eeeadc4-3453-4417-a63a-a90287e9d588 Sweden
b461b90b-4f3e-44be-8ebd-88429d5abd01 Portugal
14037e80-fc0b-41fa-92ac-ffcec4610ae0 Bulgaria
e2c28ff2-71fc-43d1-8209-372aa22950be Czech Republic
a7aa4df7-a5d4-4ee3-8e01-3f4053290d5b Poland
13ab9888-e9b5-496e-9200-0035c65a0b92 Poland
b30d1aa4-537a-4302-bd25-5207954f0ddf Hungary
3fdc7575-c8e1-4415-8148-fd410a7eccb8 Norway
e4fc06a8-104c-447e-baee-c207a1c47008 Poland
e33baa1b-af21-407a-86fd-263bd5b28734 Germany
13e8e5fb-d06e-4a52-939c-5e1602748546 Belgium
fb2ef27a-9a68-4ad9-b0f3-98654607b8a2 Netherlands
f9056a5f-6361-4adb-98d5-0bbaeb3250ec Finland
7b44bae9-f5c4-4891-84b3-d923d04a6b6e Estonia
a360d26c-d38c-4529-b69b-604e9a67f783 Greece
2f0a20a4-fb96-4f97-8230-f07e90f35978 Sweden
b1c7a650-cea5-4909-9a88-acac1c6c7389 Germany
744e1821-ba29-4492-aaf7-9eadb9206d37 Denmark
f68f3b42-8f85-4e43-87de-132e6a9da055 Germany
52527dee-2d11-4c10-9f7a-2a1cc86153cf Germany
e628e59d-83ec-47cc-8921-9d90d1185608 France
4d87da8e-2a28-48ac-8a2c-ac1cb8e87980 Croatia
956bcfd1-55eb-44f1-bc62-d6118cdd3db6 Hungary
6a76bb4e-d808-4f73-bb6a-7b9a47568a09 Germany
2ac79889-ccaf-4999-8dd3-4f5c077629e6 Spain
08cecc0b-26bd-49b3-bbdb-f7bdea55755e Belgium
666cd9a4-3133-4dec-b87c-24793facf5f7 France
6eeeadc4-3453-4417-a63a-a90287e9d588 Sweden
b461b90b-4f3e-44be-8ebd-88429d5abd01 Portugal
14037e80-fc0b-41fa-92ac-ffcec4610ae0 Bulgaria
e2c28ff2-71fc-43d1-8209-372aa22950be Czech Republic
a7aa4df7-a5d4-4ee3-8e01-3f4053290d5b Poland
13ab9888-e9b5-496e-9200-0035c65a0b92 Poland

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
ZANPEFAE000A000000XX
EAN:
8015644765958
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
348 mm
Product Net Height:
363.5 mm
Product Net Depth / Length:
271 mm
Product Net Weight:
20 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
350 mm
Package Level 1 Height:
350 mm
Package Level 1 Depth / Length:
330 mm
Package Level 1 Gross Weight:
23 kg
Package Level 1 EAN:
8015644765958

Additional Information

Product Main Type:
SACE Emax 2
Product Name:
Air Circuit Breaker
Product Type:
Air Circuit Breaker
Version:
W
CAD Dimensional Drawing:

Technical

Current Type:
AC
Electrical Durability:
Ue =< 440 V 8000 cycle
Ue = 500 ... 690 V 8000 cycle
30 cycles per hour
Ue =< 440 V 8000 cycle
Ue = 500 ... 690 V 8000 cycle
30 cycles per hour
Mechanical Durability:
20000 cycle
60 cycles per hour
20000 cycle
60 cycles per hour
Neutral Pole Current ([%Iu]):
100 %
Number of Poles:
4P
Power Loss:
100 W
Rated Current (In):
800 A
Rated Impulse Withstand Voltage (Uimp):
acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui):
AC 1000 V
Rated Operational Voltage:
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 66 kA
(230 V AC) 66 kA
(380 V AC) 66 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 50 kA
(660 V AC) 50 kA
(690 V AC) 50 kA
(220 V AC) 66 kA
(230 V AC) 66 kA
(380 V AC) 66 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 50 kA
(660 V AC) 50 kA
(690 V AC) 50 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics):
100 %
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 50 kA
for 3 s 30 kA
for 1 s 50 kA
for 3 s 30 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(400 V AC) 66 kA
(415 V AC) 66 kA
(440 V AC) 66 kA
(500 V AC) 50 kA
(525 V AC) 50 kA
(690 V AC) 50 kA
(400 V AC) 66 kA
(415 V AC) 66 kA
(440 V AC) 66 kA
(500 V AC) 50 kA
(525 V AC) 50 kA
(690 V AC) 50 kA
Rated Uninterrupted Current (Iu):
800 A
Rated Voltage (Ur):
690 V
Release:
Ekip Touch LSI
Release Type:
EL
Short-Circuit Performance Level:
N
Standards:
IEC
Sub-type:
E1.2
Suitable for IT Networks:
Yes, 690V

Certificates and Declarations

ATEX Certificate:
CSA Certificate:
CSA Certificate (Intrinsic Safe):
Declaration of Conformity - CE:
UL Certificate:
VDE Certificate:
Mechanical Drawings:
Instructions and Manuals:

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC):
4926 >> Air circuit breakers
Object Classification Code:
Q
UNSPSC:
39121615
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC):
4926 >> Air circuit breakers
Object Classification Code:
Q
UNSPSC:
39121615
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
