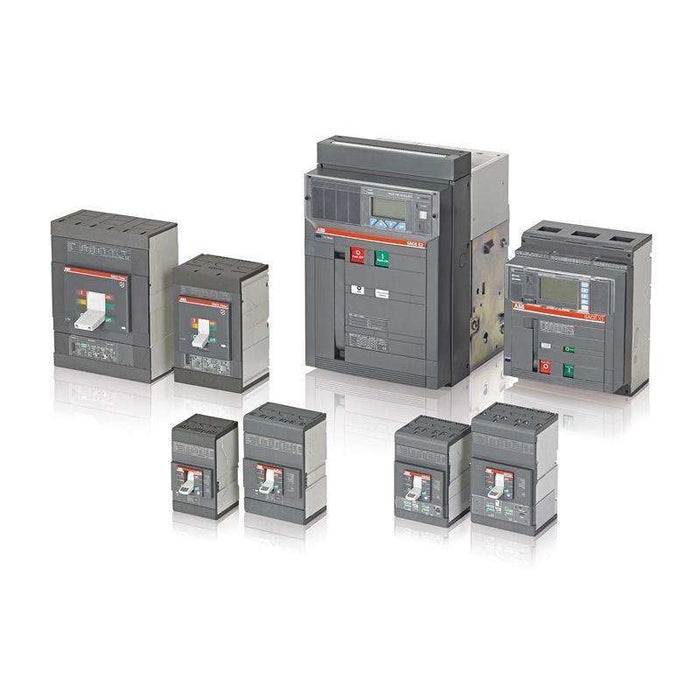

1SDA072236R1 ABB

ABB EcoSolutions

ABB EcoSolutions:
Yes
ABB Site Meeting Group Waste To Landfill Target:
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 76.4 %

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
a5491858-a664-4778-87ee-3357be5f8bcd Italy
Simplified SCIP:
0e740110-68ca-4339-8e68-3cca29e1468d Germany
e4a8a3a8-30c9-418e-b88f-82a0409b0021 Hungary
c949be3b-f6a6-4adc-9756-b27b533b7a7e Poland
8bec01f9-08c4-4cad-b44b-a4d69ac5b61e Czech Republic
08bdef96-93ce-4c34-aa5e-4f427b658e75 Bulgaria
d153d035-fb07-4114-b08b-ad0e8fdb3631 Poland
702f2faa-f2ee-451a-81fb-7699f90b36af Sweden
44cb2c17-84cf-47c7-b254-700072e1d2d6 Portugal
53333415-7a97-4db5-beba-2b538d7758cb Norway
ac653024-ef88-49a2-8cc3-4e6354491bd9 Poland
ef5dd609-df3e-4dbf-83da-32243ae4772e Hungary
6b8b02bd-8d6a-476c-aca9-efe0a36db641 Germany
3f5c8031-44ef-49ce-a237-fe005823a584 Denmark
fd2cfcf3-45f4-43c9-bcf7-14535ba9d814 Belgium
ae40d3ca-d5f0-4849-bc63-13e49baf2050 Greece
18b7d600-6ad3-4c52-8a55-3887fa955f95 France
b920982a-b2d3-4942-bc3d-6ce99c556630 Netherlands
bc4c2026-c45d-4d46-a31a-de14f6853be7 Sweden
95f84fb9-fdc9-4d5f-9739-8c3456ec6aca Estonia
a2dee400-7e79-42ec-94a0-a24e50b9d530 Finland
163e6e03-5a69-4eb5-8fbe-b910996f26bc France
181cd06c-f1e8-474a-8328-5805af18f384 Croatia
b6aff261-7205-4f09-a936-dcff290370ad Germany
54d471af-f9d5-4adc-9f46-1e121b6d8ec6 Germany
92903ab9-238c-4fea-b4e5-f1268db299d4 Germany
296ac09d-9f33-4cea-90fc-4b8914deb567 Spain
3a0eb27a-3790-4625-b001-e4658c6312d5 Belgium
0e740110-68ca-4339-8e68-3cca29e1468d Germany
e4a8a3a8-30c9-418e-b88f-82a0409b0021 Hungary
c949be3b-f6a6-4adc-9756-b27b533b7a7e Poland
8bec01f9-08c4-4cad-b44b-a4d69ac5b61e Czech Republic
08bdef96-93ce-4c34-aa5e-4f427b658e75 Bulgaria
d153d035-fb07-4114-b08b-ad0e8fdb3631 Poland
702f2faa-f2ee-451a-81fb-7699f90b36af Sweden
44cb2c17-84cf-47c7-b254-700072e1d2d6 Portugal
53333415-7a97-4db5-beba-2b538d7758cb Norway
ac653024-ef88-49a2-8cc3-4e6354491bd9 Poland

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
Z1NSEJAF000A000000XX
EAN:
8015644760861
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
278 mm
Product Net Height:
363.5 mm
Product Net Depth / Length:
271 mm
Product Net Weight:
18 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
270 mm
Package Level 1 Height:
350 mm
Package Level 1 Depth / Length:
330 mm
Package Level 1 Gross Weight:
20 kg
Package Level 1 EAN:
8015644760861

Additional Information

Product Main Type:
SACE Emax 2
Product Name:
Air Circuit Breaker
Product Type:
Air Circuit Breaker
Version:
W
CAD Dimensional Drawing:

Technical

Current Type:
AC
Electrical Durability:
Ue =< 440 V 3000 cycle
Ue = 500 ... 690 V 6500 cycle
30 cycles per hour
Ue =< 440 V 3000 cycle
Ue = 500 ... 690 V 6500 cycle
30 cycles per hour
Mechanical Durability:
20000 cycle
60 cycles per hour
20000 cycle
60 cycles per hour
Number of Poles:
3P
Power Loss:
400 W
Rated Current (In):
1600 A
Rated Impulse Withstand Voltage (Uimp):
acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui):
AC 1000 V
Rated Operational Voltage:
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 66 kA
(230 V AC) 66 kA
(380 V AC) 66 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 50 kA
(660 V AC) 50 kA
(690 V AC) 50 kA
(220 V AC) 66 kA
(230 V AC) 66 kA
(380 V AC) 66 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 50 kA
(660 V AC) 50 kA
(690 V AC) 50 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics):
100 %
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 50 kA
for 3 s 30 kA
for 1 s 50 kA
for 3 s 30 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(400 V AC) 66 kA
(415 V AC) 66 kA
(440 V AC) 66 kA
(500 V AC) 50 kA
(525 V AC) 50 kA
(690 V AC) 50 kA
(400 V AC) 66 kA
(415 V AC) 66 kA
(440 V AC) 66 kA
(500 V AC) 50 kA
(525 V AC) 50 kA
(690 V AC) 50 kA
Rated Uninterrupted Current (Iu):
1600 A
Rated Voltage (Ur):
690 V
Release:
Ekip Touch LSIG
Release Type:
EL
Short-Circuit Performance Level:
N
Standards:
IEC
Sub-type:
E1.2
Suitable for IT Networks:
Yes, 690V

Certificates and Declarations

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC):
4926 >> Air circuit breakers
Object Classification Code:
Q
UNSPSC:
39121615
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
Price on request
Ask for quote


Notify Me When Available
