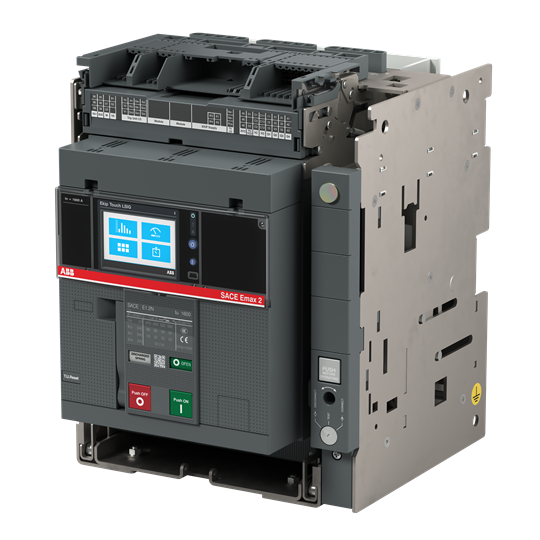

1SDA072216R1 ABB - E1.2B 1600 Ekip Touch LSIG 3p WMP

ABB EcoSolutions

ABB EcoSolutions:
Yes
ABB Site Meeting Group Waste To Landfill Target:
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 76.4 %

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
affda205-5b25-464e-9f5f-dcef09981095 Italy
Simplified SCIP:
c91116f9-2505-4aae-ab31-4e207f1c809c Sweden
63f0c9bf-124c-461e-9475-f1bf4adc5e9b Poland
f3ac0af7-5d10-4dd6-88b1-ec5d1123f8af France
1e6201c4-8fff-4c2c-b912-709fec4e175e Sweden
aabb0d2f-8bb8-42b5-82a4-e9cfeac31ffc France
8fa272c5-3470-4ff5-b432-9525d0d665d8 Hungary
9fe6f3d4-d2c4-4e82-a628-8387713ccdf9 Germany
80e95c97-26e1-4da1-a017-59772143758d Germany
d35a99b6-e4d1-4d74-9596-a9c0759d9697 Netherlands
8fa272c5-3470-4ff5-b432-9525d0d665d8 Hungary
67098aea-7cd1-407b-88be-c48e760658bd Spain
98021994-c354-4727-8203-13083c24fce5 Estonia
5fede8c9-abd6-41ad-a8e0-baee4e4ed2b2 Greece
aabb0d2f-8bb8-42b5-82a4-e9cfeac31ffc France
98021994-c354-4727-8203-13083c24fce5 Estonia
7ac2e8eb-a584-41f9-b597-3fe2715ceff2 Poland
7ac2e8eb-a584-41f9-b597-3fe2715ceff2 Poland
1dd98758-454d-4255-a538-0eda73edecd0 Belgium
060cceb0-e8aa-44a1-8ef1-1f7e1455daf4 Belgium
af7832b4-b4bd-470b-b4ab-70300b8f44e2 Poland
d35a99b6-e4d1-4d74-9596-a9c0759d9697 Netherlands
060cceb0-e8aa-44a1-8ef1-1f7e1455daf4 Belgium
759281cc-5da8-4af9-971a-b1f520d1391c Croatia
3ba4e16e-9072-420f-94dd-c2e101a58ccc Germany
af7832b4-b4bd-470b-b4ab-70300b8f44e2 Poland
1a8659af-4843-4eab-88b3-8426a31d677b Germany
63f0c9bf-124c-461e-9475-f1bf4adc5e9b Poland
db3b6c38-ece8-41b1-9ace-b83020ce7991 Denmark
5fede8c9-abd6-41ad-a8e0-baee4e4ed2b2 Greece
6500a74e-c0d0-4edc-aadf-3afd02d0a7fd Finland
c91116f9-2505-4aae-ab31-4e207f1c809c Sweden
1493612e-632c-46e5-8a50-f2beff0adcb9 Germany
8c6d740c-43cd-4b8e-ae85-8fdc0f6dc954 Bulgaria
1a8659af-4843-4eab-88b3-8426a31d677b Germany
db3b6c38-ece8-41b1-9ace-b83020ce7991 Denmark
f068de85-ebf2-4630-9c01-92c131afb425 Portugal
3ba4e16e-9072-420f-94dd-c2e101a58ccc Germany
672fa09c-7519-4875-8c3f-6545b5f8e91a Norway
67098aea-7cd1-407b-88be-c48e760658bd Spain
1dd98758-454d-4255-a538-0eda73edecd0 Belgium
8c6d740c-43cd-4b8e-ae85-8fdc0f6dc954 Bulgaria
80e95c97-26e1-4da1-a017-59772143758d Germany
965b3f3c-ed85-466b-95f2-f7f2a51e0d97 Czech Republic
f3ac0af7-5d10-4dd6-88b1-ec5d1123f8af France
f068de85-ebf2-4630-9c01-92c131afb425 Portugal
965b3f3c-ed85-466b-95f2-f7f2a51e0d97 Czech Republic
6500a74e-c0d0-4edc-aadf-3afd02d0a7fd Finland
1493612e-632c-46e5-8a50-f2beff0adcb9 Germany
672fa09c-7519-4875-8c3f-6545b5f8e91a Norway
5d13a4fe-f2c8-4fcd-a7de-e34245dfc40f Hungary
9fe6f3d4-d2c4-4e82-a628-8387713ccdf9 Germany
1e6201c4-8fff-4c2c-b912-709fec4e175e Sweden
5d13a4fe-f2c8-4fcd-a7de-e34245dfc40f Hungary
759281cc-5da8-4af9-971a-b1f520d1391c Croatia
c91116f9-2505-4aae-ab31-4e207f1c809c Sweden
63f0c9bf-124c-461e-9475-f1bf4adc5e9b Poland
f3ac0af7-5d10-4dd6-88b1-ec5d1123f8af France
1e6201c4-8fff-4c2c-b912-709fec4e175e Sweden
aabb0d2f-8bb8-42b5-82a4-e9cfeac31ffc France
8fa272c5-3470-4ff5-b432-9525d0d665d8 Hungary
9fe6f3d4-d2c4-4e82-a628-8387713ccdf9 Germany
80e95c97-26e1-4da1-a017-59772143758d Germany
d35a99b6-e4d1-4d74-9596-a9c0759d9697 Netherlands
8fa272c5-3470-4ff5-b432-9525d0d665d8 Hungary

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
Z1BSEJAF000A000000XX
EAN:
8015644760663
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
278 mm
Product Net Height:
363.5 mm
Product Net Depth / Length:
271 mm
Product Net Weight:
18 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
270 mm
Package Level 1 Height:
350 mm
Package Level 1 Depth / Length:
330 mm
Package Level 1 Gross Weight:
20 kg
Package Level 1 EAN:
8015644760663

Additional Information

Product Main Type:
SACE Emax 2
Product Name:
Air Circuit Breaker
Product Type:
Air Circuit Breaker
Version:
W
CAD Dimensional Drawing:

Technical

Current Type:
AC
Electrical Durability:
Ue =< 440 V 3000 cycle
Ue = 500 ... 690 V 6500 cycle
30 cycles per hour
Ue =< 440 V 3000 cycle
Ue = 500 ... 690 V 6500 cycle
30 cycles per hour
Mechanical Durability:
20000 cycle
60 cycles per hour
20000 cycle
60 cycles per hour
Number of Poles:
3P
Power Loss:
400 W
Rated Current (In):
1600 A
Rated Impulse Withstand Voltage (Uimp):
acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui):
AC 1000 V
Rated Operational Voltage:
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 42 kA
(230 V AC) 42 kA
(380 V AC) 42 kA
(400 V AC) 42 kA
(415 V AC) 42 kA
(440 V AC) 42 kA
(500 V AC) 42 kA
(660 V AC) 42 kA
(690 V AC) 42 kA
(220 V AC) 42 kA
(230 V AC) 42 kA
(380 V AC) 42 kA
(400 V AC) 42 kA
(415 V AC) 42 kA
(440 V AC) 42 kA
(500 V AC) 42 kA
(660 V AC) 42 kA
(690 V AC) 42 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics):
100 %
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 42 kA
for 3 s 24 kA
for 1 s 42 kA
for 3 s 24 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(400 V AC) 42 kA
(415 V AC) 42 kA
(440 V AC) 42 kA
(500 V AC) 42 kA
(525 V AC) 42 kA
(690 V AC) 42 kA
(400 V AC) 42 kA
(415 V AC) 42 kA
(440 V AC) 42 kA
(500 V AC) 42 kA
(525 V AC) 42 kA
(690 V AC) 42 kA
Rated Uninterrupted Current (Iu):
1600 A
Rated Voltage (Ur):
690 V
Release:
Ekip Touch LSIG
Release Type:
EL
Short-Circuit Performance Level:
B
Standards:
IEC
Sub-type:
E1.2
Suitable for IT Networks:
Yes, 690V

Certificates and Declarations

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC):
4926 >> Air circuit breakers
Object Classification Code:
Q
UNSPSC:
39121615
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
