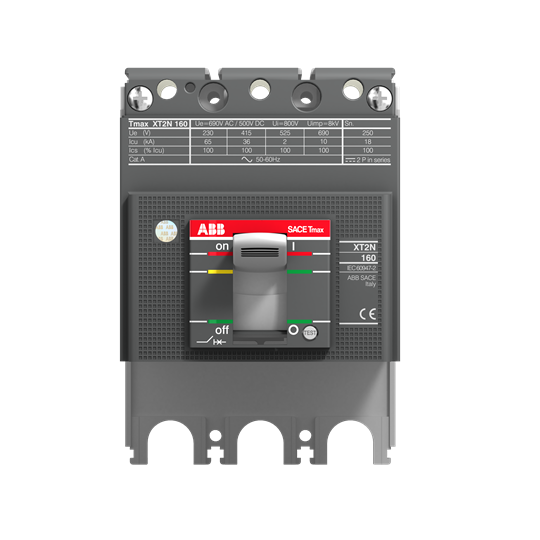

1SDA068164R1 ABB - XT2S 160 BREAKING PART 3p F F

1SDA068164R1 ABB - XT2S 160 BREAKING PART 3p F F

ABB EcoSolutions

ABB EcoSolutions:
Yes
ABB Site Meeting Group Waste To Landfill Target:
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 55.70 %

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
f0277866-c47a-4fc8-bcef-3e6fca426e26 Italy
Simplified SCIP:
2e499bf0-c60f-4ee7-9331-f69b327be1a1 France
e3ed27d0-ffb3-43b5-b37d-a227615004a1 Germany
218f3fbb-d600-40a3-a628-b0f1078cfd6d Czech Republic
226558bf-027f-45dc-8341-af64d34ebf68 Germany
59252041-c900-427c-981e-4de4c194e5ff Croatia
8acb2308-8f5b-43e2-b7bb-d76d0dfd5dfe Germany
2e90776b-9585-426b-96a5-d6915f23d7d9 Portugal
5937112b-3e72-48e3-b4e3-72927263793e Denmark
bbfd1071-7aa0-4509-a44b-cace8fc8c5d1 Sweden
61b3d234-924d-455d-be87-f58dc46a9021 Belgium
8555da20-768e-40d1-ae6e-9309037a9a20 Spain
c9e3d2dc-63d2-4e7a-96d7-49bdf3eae775 Hungary
2cabdbf6-2738-4ccd-8385-d52226110db1 Greece
2d8c22ca-c93b-423b-8505-151d24ade891 Germany
d3666861-f108-47e9-8195-b7e1c7fa4fb8 France
25383943-6542-4a23-96c6-3e6ed4fb1f89 Belgium
b2b0fbdc-e240-4bb7-b840-6a745ec85a66 Norway
394e6782-7242-444a-b3d3-85e9749d1a91 Netherlands
a02cabf5-3586-4c02-a294-1eabf2f93445 Sweden
a1a5f319-3b02-4cc8-8261-5666a855413e Finland
aa283aa3-8567-4cf6-a0fa-f59f12519401 Hungary
6e671561-7320-475d-8232-8cd51ff18b34 Poland
ce320731-a8c3-4de4-a8eb-fc346a44295e Estonia
3c8b34f4-d97e-4339-962d-c7c517d9d039 Bulgaria
3d36f69f-3c9c-416b-97b7-630a898a1dfc Poland
e3088839-a732-447f-b262-28b451d00870 Poland
cacde370-df57-4dc3-bfb6-ccc439b50680 Germany
2e499bf0-c60f-4ee7-9331-f69b327be1a1 France
e3ed27d0-ffb3-43b5-b37d-a227615004a1 Germany
218f3fbb-d600-40a3-a628-b0f1078cfd6d Czech Republic
226558bf-027f-45dc-8341-af64d34ebf68 Germany
59252041-c900-427c-981e-4de4c194e5ff Croatia
8acb2308-8f5b-43e2-b7bb-d76d0dfd5dfe Germany
2e90776b-9585-426b-96a5-d6915f23d7d9 Portugal
5937112b-3e72-48e3-b4e3-72927263793e Denmark
bbfd1071-7aa0-4509-a44b-cace8fc8c5d1 Sweden
61b3d234-924d-455d-be87-f58dc46a9021 Belgium

Environmental

Environmental Information:

Ordering

E-Number (Finland):
3640578
E-Number (Norway):
4379500
EAN:
8015644020613
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
90 mm
Product Net Height:
130 mm
Product Net Depth / Length:
82.5 mm
Product Net Weight:
0.82 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
150 mm
Package Level 1 Height:
215 mm
Package Level 1 Depth / Length:
135 mm
Package Level 1 Gross Weight:
0.92 kg
Package Level 1 EAN:
8015644020613

Additional Information

Product Main Type:
SACE Tmax XT
Product Name:
Moulded Case Circuit Breaker
Product Type:
Breaking Part
Version:
F

Technical

Electrical Durability:
120 cycles per hour
8000 cycle
120 cycles per hour
8000 cycle
Mechanical Durability:
240 cycles per hour
25000 cycle
240 cycles per hour
25000 cycle
Number of Poles:
3P
Opening Time:
CB with SOR 30 ms
CB with UVR 30 ms
CB with SOR 30 ms
CB with UVR 30 ms
Order Multiple:
1 piece
Rated Frequency (f):
50 / 60 Hz
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Voltage:
690 V AC
500 V DC
690 V AC
500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 36 kA
(525 V AC) 25 kA
(690 V AC) 12 kA
(250 V DC) 2 Poles in Series 50 kA
(500 V DC) 3 Poles in Series 50 kA
(220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 36 kA
(525 V AC) 25 kA
(690 V AC) 12 kA
(250 V DC) 2 Poles in Series 50 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 36 kA
(525 V AC) 25 kA
(690 V AC) 12 kA
(250 V DC) 2 Poles in Series 50 kA
(500 V DC) 3 Poles in Series 50 kA
(220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 36 kA
(525 V AC) 25 kA
(690 V AC) 12 kA
(250 V DC) 2 Poles in Series 50 kA
Rated Uninterrupted Current (Iu):
160 A
Rated Voltage (Ur):
690 V
Short-Circuit Performance Level:
S
Standards:
IEC60947-2
Sub-type:
XT2
Terminal Connection Type:
Front

Certificates and Declarations

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code:
Q
UNSPSC:
39120000
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
Price on request
