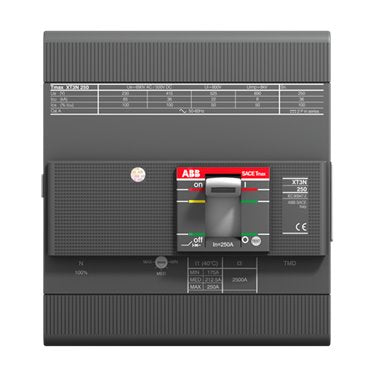

1SDA068065R1 ABB XT3N 250 TMD 200-2000 4p F F InN50%

1SDA068065R1 ABB XT3N 250 TMD 200-2000 4p F F InN50%

ABB EcoSolutions

ABB EcoSolutions:
Yes
ABB Site Meeting Group Waste To Landfill Target:
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 56.6 %

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
be2c41c1-4523-4ec9-828d-3e2b2f396b82 Italy
Simplified SCIP:
5e0acb54-16ae-4dee-bf3c-f796e4d0d3ab Germany
1676c911-88f0-4a8c-bd47-0a747abd4598 Germany
453d56dc-a9d8-4e8d-8048-fe0c83a9bef4 Sweden
8f533725-f7e0-4b97-8af6-03a7dbb9525b Denmark
05d8a992-78a0-445f-9c71-ba3e735defbf Germany
418b654d-19ed-473c-92e6-ae7a5c96e67f Poland
1bacdb23-32be-481f-9fb0-51d1abafd02f Norway
f4bc0fdd-7cf4-4b18-b1d4-6aa282b26524 Finland
50be7dd4-b6b5-4d28-9daf-93946fb6fe83 Netherlands
8f9c147d-beea-47d2-b19e-9454ac87e1fc Netherlands
1343062d-1dd9-4ec6-9cf2-5b6f789bbd71 Croatia
87a2c4d7-9e18-4907-9a35-5e3c41920aa3 Czech Republic
0f3c840e-7b38-4a2c-bc1a-dcf92faca89e Poland
958f6566-89ad-4596-8f2f-dd42a4e4ec69 Netherlands
cbff7d62-32e9-4d5d-945b-9cfe6904870c Estonia
dbe664a8-e823-41fa-83c9-f036c3abc96a Greece
84aff4d0-f80a-42cd-b67d-4fade6509b6e Portugal
abfa6626-9d6f-43a6-b473-1aa8207f9e9b Bulgaria
d46dc8a0-8af8-4b2e-a751-a998d0c6294a Sweden
5f7b7b9b-45ee-464d-a1c5-34adad2705c4 Poland
f80e0704-492b-4039-b80c-8e10d32fb56a France
bc2fd9d1-d2b8-4ec9-810d-388d8d424a8a Germany
b7dbf387-4197-406a-9a3a-67abe0843eac Germany
4ec97c9a-bf49-48b4-a50f-455dfc771aac France
3fca4319-1f72-44fe-9a97-1300a9fdedbd Netherlands
ec4cf2c1-0076-49b1-bac7-3cc44aa8dc05 Spain
b677bd01-2a3d-42b0-a5d8-1d662b1c0db0 Netherlands
5e0acb54-16ae-4dee-bf3c-f796e4d0d3ab Germany
1676c911-88f0-4a8c-bd47-0a747abd4598 Germany
453d56dc-a9d8-4e8d-8048-fe0c83a9bef4 Sweden
8f533725-f7e0-4b97-8af6-03a7dbb9525b Denmark
05d8a992-78a0-445f-9c71-ba3e735defbf Germany
418b654d-19ed-473c-92e6-ae7a5c96e67f Poland
1bacdb23-32be-481f-9fb0-51d1abafd02f Norway
f4bc0fdd-7cf4-4b18-b1d4-6aa282b26524 Finland
50be7dd4-b6b5-4d28-9daf-93946fb6fe83 Netherlands
8f9c147d-beea-47d2-b19e-9454ac87e1fc Netherlands

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
XT3NEN200AFF000XXX
E-Number (Finland):
3641012
EAN:
8015644019662
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
140 mm
Product Net Height:
150 mm
Product Net Depth / Length:
70 mm
Product Net Weight:
2.1 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
155 mm
Package Level 1 Height:
190 mm
Package Level 1 Depth / Length:
155 mm
Package Level 1 Gross Weight:
2.21 kg
Package Level 1 EAN:
8015644019662

Additional Information

Circuit Breaker Type to be Associated:
Power Distribution
Product Main Type:
SACE Tmax XT
Product Name:
Moulded Case Circuit Breaker
Product Type:
Automatic Circuit Breaker
Version:
F
CAD Dimensional Drawing:

Technical

Connecting Capacity Main Circuit:
Busbar 85..192 mm²
Current Type:
AC/DC
Electrical Durability:
120 cycles per hour
8000 cycle
120 cycles per hour
8000 cycle
Mechanical Durability:
240 cycles per hour
25000 cycle
240 cycles per hour
25000 cycle
Number of Poles:
4P
Opening Time:
CB with SOR 30 ms
CB with UVR 30 ms
CB with SOR 30 ms
CB with UVR 30 ms
Order Multiple:
1 piece
Power Loss:
at Rated Operating Conditions per Pole 13.2 W
Rated Current (In):
200 A
Rated Frequency (f):
50 / 60 Hz
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii):
2000 A
Rated Insulation Voltage (Ui):
800 V
Rated Operational Voltage:
690 V AC
500 V DC
690 V AC
500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 50 kA
(230 V AC) 50 kA
(240 V AC) 50 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 18 kA
(500 V AC) 15 kA
(525 V AC) 9,75 kA
(690 V AC) 3,75 kA
(250 V DC) 2 Poles in Series 36 kA
(500 V DC) 2 Poles in Series 50 kA
(220 V AC) 50 kA
(230 V AC) 50 kA
(240 V AC) 50 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 18 kA
(500 V AC) 15 kA
(525 V AC) 9,75 kA
(690 V AC) 3,75 kA
(250 V DC) 2 Poles in Series 36 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 50 kA
(230 V AC) 50 kA
(240 V AC) 50 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 20 kA
(525 V AC) 13 kA
(690 V AC) 5 kA
(250 V DC) 2 Poles in Series 36 kA
(500 V DC) 3 Poles in Series 50 kA
(220 V AC) 50 kA
(230 V AC) 50 kA
(240 V AC) 50 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 20 kA
(525 V AC) 13 kA
(690 V AC) 5 kA
(250 V DC) 2 Poles in Series 36 kA
Rated Uninterrupted Current (Iu):
250 A
Rated Voltage (Ur):
690 V
Recommended Screw Driver:
Main Circuit M8
Release:
TMD
Release Type:
TM
Setting Range:
140...200 A
Short-Circuit Performance Level:
N
Standards:
IEC60947-2
Sub-type:
XT3
Terminal Connection Type:
Front
Terminal Type:
Bolt
Tightening Torque:
8 N·m

Certificates and Declarations

ATEX Certificate:
Declaration of Conformity - CE:
GL Certificate:
LR Certificate:
UL Certificate:
VDE Certificate:
Dimension Diagram:
Mechanical Drawings:
Instructions and Manuals:

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code:
Q
UNSPSC:
39120000
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
Price on request
Ask for quote

Notify Me When Available
