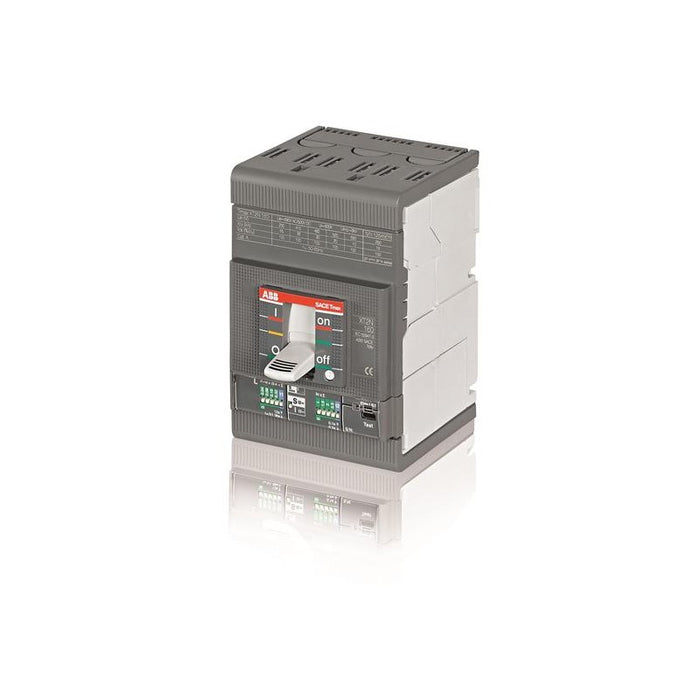

1SDA067859R1 ABB - XT2H 160 Ekip LS/I In=63A 3p F F

1SDA067859R1 ABB - XT2H 160 Ekip LS/I In=63A 3p F F

ABB EcoSolutions

ABB EcoSolutions:
Yes
ABB Site Meeting Group Waste To Landfill Target:
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 55.70 %

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
11164a43-b119-4677-9283-572494d8ba28 Italy
Simplified SCIP:
b74862b9-c03d-4d0f-9a99-dc49c4fb3f34 Germany
b73ae5a0-3698-4b9d-9984-96f1c13f7aea France
dd04f114-b467-4cb4-be9a-cec9f91ee010 Sweden
391b3c00-69cf-48d1-b29f-61a136cc6492 Poland
ab4608a7-bf91-4c98-9988-07cddaef470f Norway
07256526-45e5-4870-88ac-fa2fc33d221b Finland
7dc9bd17-fc56-429b-9f98-9d1296e57848 Netherlands
5f39a986-9789-42fc-bb57-4a628bdcd5a7 Germany
4a4da4c3-ec2d-4206-ad9d-b8e3fca4244a Denmark
cf3aca86-9235-4d37-88eb-60316eb00fa4 Netherlands
084f66b4-6662-4c45-85e8-0c9533f28f00 Estonia
acce6e6e-d116-4727-a886-ed1619436f67 Greece
118f7b51-d7c9-44dc-9e1b-c1d6a95614f7 Portugal
10d7dc16-8f27-4f8f-af40-682e193d3efc Germany
cec58a95-b7d5-4841-a7ca-c8ef31fb5876 Croatia
de829ca0-f6a7-4c18-adb4-bc7ab5476479 Czech Republic
7912686b-2080-4ec2-9914-83be697e1f35 Poland
194546f9-f305-4115-8b66-c7762fa5fa94 Netherlands
9572a023-59e4-479d-9892-74edf91df2ce Germany
aeec9433-585f-4c26-bea4-da2d6772d615 Germany
c9832520-2368-4713-aab8-4943a23d0def France
fcb18477-25ba-4740-9c6f-8a95ab422316 Netherlands
6159f85e-9c96-4cea-837b-ed4119bcd9ee Spain
d5bd8e2f-aa3b-4c8d-bfac-73a426c5ccf4 Netherlands
dbbaaa22-92bc-485c-b378-1a37e3a77d6d Bulgaria
2e63445f-a6af-4490-82d7-a2b48d48b1c3 Sweden
16f6c309-f229-4a6a-9693-13320a364ec7 Poland
b74862b9-c03d-4d0f-9a99-dc49c4fb3f34 Germany
b73ae5a0-3698-4b9d-9984-96f1c13f7aea France
dd04f114-b467-4cb4-be9a-cec9f91ee010 Sweden
391b3c00-69cf-48d1-b29f-61a136cc6492 Poland
ab4608a7-bf91-4c98-9988-07cddaef470f Norway
07256526-45e5-4870-88ac-fa2fc33d221b Finland
7dc9bd17-fc56-429b-9f98-9d1296e57848 Netherlands
5f39a986-9789-42fc-bb57-4a628bdcd5a7 Germany
4a4da4c3-ec2d-4206-ad9d-b8e3fca4244a Denmark
cf3aca86-9235-4d37-88eb-60316eb00fa4 Netherlands

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
XT2HE3063EFF000XXX
E-Number (Norway):
4379430
EAN:
8015644017552
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
90 mm
Product Net Height:
130 mm
Product Net Depth / Length:
82.5 mm
Product Net Weight:
1.4 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
130 mm
Package Level 1 Height:
208 mm
Package Level 1 Depth / Length:
145 mm
Package Level 1 Gross Weight:
1.702 kg
Package Level 1 EAN:
8015644017552

Additional Information

Circuit Breaker Type to be Associated:
Power Distribution
Product Main Type:
SACE Tmax XT
Product Name:
Moulded Case Circuit Breaker
Product Type:
Automatic Circuit Breaker
Version:
F
CAD Dimensional Drawing:

Technical

Connecting Capacity Main Circuit:
Busbar 32.5..100 mm²
Current Type:
AC
Electrical Durability:
120 cycles per hour
8000 cycle
120 cycles per hour
8000 cycle
Mechanical Durability:
240 cycles per hour
25000 cycle
240 cycles per hour
25000 cycle
Number of Poles:
3P
Opening Time:
CB with SOR 30 ms
CB with UVR 30 ms
CB with SOR 30 ms
CB with UVR 30 ms
Order Multiple:
1 piece
Power Loss:
at Rated Operating Conditions per Pole 1.7 W
Rated Current (In):
63 A
Rated Frequency (f):
50 / 60 Hz
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Voltage:
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 100 kA
(230 V AC) 100 kA
(240 V AC) 100 kA
(380 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 65 kA
(500 V AC) 50 kA
(525 V AC) 30 kA
(690 V AC) 15 kA
(220 V AC) 100 kA
(230 V AC) 100 kA
(240 V AC) 100 kA
(380 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 65 kA
(500 V AC) 50 kA
(525 V AC) 30 kA
(690 V AC) 15 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 100 kA
(230 V AC) 100 kA
(240 V AC) 100 kA
(380 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 65 kA
(500 V AC) 50 kA
(525 V AC) 30 kA
(690 V AC) 15 kA
(220 V AC) 100 kA
(230 V AC) 100 kA
(240 V AC) 100 kA
(380 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 65 kA
(500 V AC) 50 kA
(525 V AC) 30 kA
(690 V AC) 15 kA
Rated Uninterrupted Current (Iu):
160 A
Rated Voltage (Ur):
690 V
Recommended Screw Driver:
Main Circuit M6
Release:
Ekip Dip LS/I
Release Type:
EL
Short-Circuit Performance Level:
H
Standards:
IEC60947-2
Sub-type:
XT2
Terminal Connection Type:
Front
Terminal Type:
Bolt
Tightening Torque:
6 N·m

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code:
Q
UNSPSC:
39120000
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
