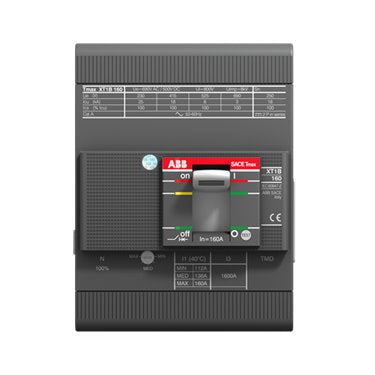

1SDA067426R1 ABB XT1N 160 TMD 160-1600 4p F F InN50%

1SDA067426R1 ABB XT1N 160 TMD 160-1600 4p F F InN50%

ABB EcoSolutions

ABB EcoSolutions:
Yes
ABB Site Meeting Group Waste To Landfill Target:
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 55.9 %

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
94fc082b-5d76-4eeb-8e15-5bc418ea47af Italy
Simplified SCIP:
fa3b011f-e8ce-44e9-b47c-88318fee50f7 Germany
3ec8def3-26e1-4ea0-aa32-57f71b742262 Netherlands
75bbca28-e587-474a-9cd9-93bd683eb6bd Poland
0f3c025e-76a4-42f8-a532-77289e6ce527 France
7e0ca652-f8ae-4579-b473-9a158dafbc5c Sweden
bac36a39-01c4-4a6f-af9e-9b7161d1e1bc Germany
c51b95da-3991-4a00-8ef2-a296e7f49316 Germany
f63704f1-3070-4977-8e44-350fb8cf5b76 France
35ec6a18-d596-47b6-bac9-d899ecfe1a71 Netherlands
60ba9153-13fb-4c7d-847d-fd8687e3684f Spain
c22759bd-e767-42ec-a60c-4a0bf8d08046 Poland
8176d198-3736-4051-a517-95d2c29d4933 Norway
25687a92-dfaa-486f-9862-2989dc1e4d20 Finland
f63704f1-3070-4977-8e44-350fb8cf5b76 France
35ec6a18-d596-47b6-bac9-d899ecfe1a71 Netherlands
60ba9153-13fb-4c7d-847d-fd8687e3684f Spain
3ec8def3-26e1-4ea0-aa32-57f71b742262 Netherlands
35fcd6a6-24d8-4ae4-9584-618010b0dd12 Bulgaria
3bff1077-073c-4af5-8b20-c327726bb6ec Sweden
cfa3eca7-9354-475b-a8cf-e1ee7abe2bf0 Estonia
e6c36f1a-665b-4b63-aeed-1f21831af460 Greece
de8c84de-a508-41dd-a934-57ef560cec5e Portugal
7e0ca652-f8ae-4579-b473-9a158dafbc5c Sweden
bac36a39-01c4-4a6f-af9e-9b7161d1e1bc Germany
c51b95da-3991-4a00-8ef2-a296e7f49316 Germany
e6265f58-711e-4fd2-bef1-0881d3c8addf Netherlands
27c0fb6e-d769-4603-9bf6-3ff184b9c964 Germany
53a6811b-361d-42c0-8fdd-ceafeda65111 Denmark
b53d8468-4e87-491b-b3f7-b7aa24061656 Germany
9f412e57-8038-4a0e-81da-a6d522566174 Croatia
1d62ba95-6642-4c2c-ab93-b59bb2a2ee4d Czech Republic
4c6f5836-0888-465b-b68d-ffa17714d0df Poland
c22759bd-e767-42ec-a60c-4a0bf8d08046 Poland
8176d198-3736-4051-a517-95d2c29d4933 Norway
25687a92-dfaa-486f-9862-2989dc1e4d20 Finland
e6265f58-711e-4fd2-bef1-0881d3c8addf Netherlands
27c0fb6e-d769-4603-9bf6-3ff184b9c964 Germany
53a6811b-361d-42c0-8fdd-ceafeda65111 Denmark
b53d8468-4e87-491b-b3f7-b7aa24061656 Germany
9f412e57-8038-4a0e-81da-a6d522566174 Croatia
1d62ba95-6642-4c2c-ab93-b59bb2a2ee4d Czech Republic
4c6f5836-0888-465b-b68d-ffa17714d0df Poland
924d376e-341e-48de-a6bd-e4907f9d0cf8 Netherlands
d353cc07-7fe6-457f-a644-d0f476b52145 Netherlands
0f3c025e-76a4-42f8-a532-77289e6ce527 France
35fcd6a6-24d8-4ae4-9584-618010b0dd12 Bulgaria
3bff1077-073c-4af5-8b20-c327726bb6ec Sweden
75bbca28-e587-474a-9cd9-93bd683eb6bd Poland
924d376e-341e-48de-a6bd-e4907f9d0cf8 Netherlands
d353cc07-7fe6-457f-a644-d0f476b52145 Netherlands
cfa3eca7-9354-475b-a8cf-e1ee7abe2bf0 Estonia
e6c36f1a-665b-4b63-aeed-1f21831af460 Greece
de8c84de-a508-41dd-a934-57ef560cec5e Portugal
fa3b011f-e8ce-44e9-b47c-88318fee50f7 Germany
3ec8def3-26e1-4ea0-aa32-57f71b742262 Netherlands
75bbca28-e587-474a-9cd9-93bd683eb6bd Poland
0f3c025e-76a4-42f8-a532-77289e6ce527 France
7e0ca652-f8ae-4579-b473-9a158dafbc5c Sweden
bac36a39-01c4-4a6f-af9e-9b7161d1e1bc Germany
c51b95da-3991-4a00-8ef2-a296e7f49316 Germany
f63704f1-3070-4977-8e44-350fb8cf5b76 France
35ec6a18-d596-47b6-bac9-d899ecfe1a71 Netherlands
60ba9153-13fb-4c7d-847d-fd8687e3684f Spain

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
XT1NEN160AFF000XXX
E-Number (Finland):
3640535
EAN:
8015644013202
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
101.6 mm
Product Net Height:
130 mm
Product Net Depth / Length:
70 mm
Product Net Weight:
1.4 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
128 mm
Package Level 1 Height:
135 mm
Package Level 1 Depth / Length:
143 mm
Package Level 1 Gross Weight:
1.54 kg
Package Level 1 EAN:
8015644013202

Additional Information

Circuit Breaker Type to be Associated:
Power Distribution
Product Main Type:
SACE Tmax XT
Product Name:
Moulded Case Circuit Breaker
Product Type:
Automatic Circuit Breaker
Version:
F
CAD Dimensional Drawing:

Technical

Connecting Capacity Main Circuit:
Busbar 45.5 ... 80 mm²
Current Type:
AC/DC
Electrical Durability:
120 cycles per hour
8000 cycle
120 cycles per hour
8000 cycle
Mechanical Durability:
240 cycles per hour
25000 cycle
240 cycles per hour
25000 cycle
Number of Poles:
4P
Opening Time:
CB with SOR 30 ms
CB with UVR 30 ms
CB with SOR 30 ms
CB with UVR 30 ms
Order Multiple:
1 piece
Power Loss:
at Rated Operating Conditions per Pole 15 W
Rated Current (In):
160 A
Rated Frequency (f):
50 / 60 Hz
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii):
1600 A
Rated Insulation Voltage (Ui):
800 V
Rated Operational Voltage:
690 V AC
500 V DC
690 V AC
500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 50 kA
(230 V AC) 50 kA
(240 V AC) 50 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 18 kA
(500 V AC) 15 kA
(525 V AC) 11 kA
(690 V AC) 5 kA
(250 V DC) 2 Poles in Series 36 kA
(500 V DC) 3 Poles in Series 36 kA
(220 V AC) 50 kA
(230 V AC) 50 kA
(240 V AC) 50 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 18 kA
(500 V AC) 15 kA
(525 V AC) 11 kA
(690 V AC) 5 kA
(250 V DC) 2 Poles in Series 36 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 65 kA
(230 V AC) 65 kA
(240 V AC) 65 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 30 kA
(525 V AC) 22 kA
(690 V AC) 6 kA
(250 V DC) 2 Poles in Series 36 kA
(500 V DC) 3 Poles in Series 36 kA
(220 V AC) 65 kA
(230 V AC) 65 kA
(240 V AC) 65 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 30 kA
(525 V AC) 22 kA
(690 V AC) 6 kA
(250 V DC) 2 Poles in Series 36 kA
Rated Uninterrupted Current (Iu):
160 A
Rated Voltage (Ur):
690 V
Recommended Screw Driver:
Main Circuit M6
Release:
TMD
Release Type:
TM
Setting Range:
112...160 A
Short-Circuit Performance Level:
N
Standards:
IEC60947-2
Sub-type:
XT1
Terminal Connection Type:
Front
Terminal Type:
Bolt
Tightening Torque:
6 N·m

Certificates and Declarations

ATEX Certificate:
Declaration of Conformity - CE:
GL Certificate:
LR Certificate:
UL Certificate:
VDE Certificate:
Dimension Diagram:
Mechanical Drawings:
Instructions and Manuals:

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code:
Q
UNSPSC:
39120000
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
Price on request
Ask for quote
