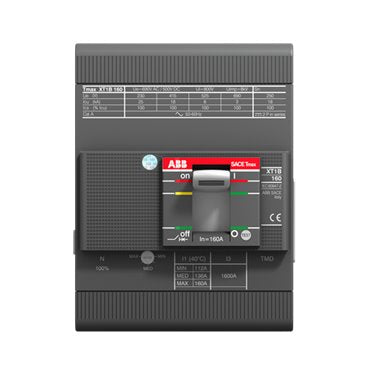

1SDA067408R1 ABB XT1C 160 TMD 160-1600 4p F F InN50%

1SDA067408R1 ABB XT1C 160 TMD 160-1600 4p F F InN50%

ABB EcoSolutions

ABB EcoSolutions:
Yes
ABB Site Meeting Group Waste To Landfill Target:
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 55.9 %

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
a3d05883-9ebe-40a7-9dc7-463ca2c390fb Italy
Simplified SCIP:
8c8d64fd-d56d-4d06-ab34-0c9d4cebe336 Germany
e8359589-dd74-4097-9513-d28183829fa2 Netherlands
998b4f9c-253e-4ce3-9ebe-96418c29dc93 Spain
8a08b254-8ea8-4913-9af9-4e988d46cc02 Netherlands
c81e7525-4d92-4ab5-8020-61debb4473f2 Greece
bf68dc18-423c-4d3d-988a-303877164859 Poland
13fd83d3-a734-4480-80e9-f1a6e13bf39c Norway
208bf1f1-6ce5-451e-ae76-33a3d72066ce Finland
3721a7ec-6832-4072-b085-0da076caf4b5 Netherlands
8d81aff3-24b6-43a2-98e5-168b2efde39b Germany
6df0342c-f01a-4393-a0fb-ef67c10b9102 Denmark
3f4438fb-9939-4571-9bd8-b086c4ba014b Germany
e64950da-3fb4-41fd-b76a-04225b942f93 Croatia
ed1a8410-0107-4432-8b54-061a8d381e6a Czech Republic
79bd0e81-61fb-49b8-b2e6-ab5c8376b80d Poland
a181be70-1ffd-48c1-8cd3-497a5c9d032b Netherlands
158d8721-efd1-4f62-bb72-ccb7575c08ad Netherlands
21bb78f5-2000-4aa9-8d4c-a6075cdcd1fa Estonia
7240969c-88cf-4ad8-91a4-12a0fd5dc5d9 Portugal
4ffa45cc-0d1a-4ce5-a785-0a979dde881e Germany
6a40eacb-17ed-4a24-9242-bbc295d338a5 Germany
50023ce6-3d95-4ad4-9288-115227be92ab France
7240969c-88cf-4ad8-91a4-12a0fd5dc5d9 Portugal
d9d3e96f-8dad-4404-b9af-58436248d520 Bulgaria
ee9762c8-f4f0-40eb-a156-fb912bb4f712 Sweden
976df1a7-e48c-412b-88db-bb7ca712e0fd Poland
98de693a-104a-4b91-b746-74166febd900 France
cf8851b4-b83c-479b-9b69-418200fa7b67 Sweden
13fd83d3-a734-4480-80e9-f1a6e13bf39c Norway
208bf1f1-6ce5-451e-ae76-33a3d72066ce Finland
3721a7ec-6832-4072-b085-0da076caf4b5 Netherlands
8d81aff3-24b6-43a2-98e5-168b2efde39b Germany
6df0342c-f01a-4393-a0fb-ef67c10b9102 Denmark
3f4438fb-9939-4571-9bd8-b086c4ba014b Germany
e64950da-3fb4-41fd-b76a-04225b942f93 Croatia
ed1a8410-0107-4432-8b54-061a8d381e6a Czech Republic
79bd0e81-61fb-49b8-b2e6-ab5c8376b80d Poland
a181be70-1ffd-48c1-8cd3-497a5c9d032b Netherlands
158d8721-efd1-4f62-bb72-ccb7575c08ad Netherlands
21bb78f5-2000-4aa9-8d4c-a6075cdcd1fa Estonia
c81e7525-4d92-4ab5-8020-61debb4473f2 Greece
d9d3e96f-8dad-4404-b9af-58436248d520 Bulgaria
ee9762c8-f4f0-40eb-a156-fb912bb4f712 Sweden
8a08b254-8ea8-4913-9af9-4e988d46cc02 Netherlands
976df1a7-e48c-412b-88db-bb7ca712e0fd Poland
98de693a-104a-4b91-b746-74166febd900 France
cf8851b4-b83c-479b-9b69-418200fa7b67 Sweden
4ffa45cc-0d1a-4ce5-a785-0a979dde881e Germany
6a40eacb-17ed-4a24-9242-bbc295d338a5 Germany
50023ce6-3d95-4ad4-9288-115227be92ab France
e8359589-dd74-4097-9513-d28183829fa2 Netherlands
998b4f9c-253e-4ce3-9ebe-96418c29dc93 Spain
bf68dc18-423c-4d3d-988a-303877164859 Poland
8c8d64fd-d56d-4d06-ab34-0c9d4cebe336 Germany
e8359589-dd74-4097-9513-d28183829fa2 Netherlands
998b4f9c-253e-4ce3-9ebe-96418c29dc93 Spain
8a08b254-8ea8-4913-9af9-4e988d46cc02 Netherlands
c81e7525-4d92-4ab5-8020-61debb4473f2 Greece
bf68dc18-423c-4d3d-988a-303877164859 Poland
13fd83d3-a734-4480-80e9-f1a6e13bf39c Norway
208bf1f1-6ce5-451e-ae76-33a3d72066ce Finland
3721a7ec-6832-4072-b085-0da076caf4b5 Netherlands
8d81aff3-24b6-43a2-98e5-168b2efde39b Germany

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
XT1CEN160AFF000XXX
E-Number (Finland):
3640512
EAN:
8015644013028
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
101.6 mm
Product Net Height:
130 mm
Product Net Depth / Length:
70 mm
Product Net Weight:
1.4 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
128 mm
Package Level 1 Height:
135 mm
Package Level 1 Depth / Length:
143 mm
Package Level 1 Gross Weight:
1.442 kg
Package Level 1 EAN:
8015644013028

Additional Information

Circuit Breaker Type to be Associated:
Power Distribution
Product Main Type:
SACE Tmax XT
Product Name:
Moulded Case Circuit Breaker
Product Type:
Automatic Circuit Breaker
Version:
F
CAD Dimensional Drawing:

Technical

Connecting Capacity Main Circuit:
Busbar 45.5 ... 80 mm²
Current Type:
AC/DC
Electrical Durability:
120 cycles per hour
8000 cycle
120 cycles per hour
8000 cycle
Mechanical Durability:
240 cycles per hour
25000 cycle
240 cycles per hour
25000 cycle
Number of Poles:
4P
Opening Time:
CB with SOR 30 ms
CB with UVR 30 ms
CB with SOR 30 ms
CB with UVR 30 ms
Order Multiple:
1 piece
Power Loss:
at Rated Operating Conditions per Pole 15 W
Rated Current (In):
160 A
Rated Frequency (f):
50 / 60 Hz
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii):
1600 A
Rated Insulation Voltage (Ui):
800 V
Rated Operational Voltage:
690 V AC
500 V DC
690 V AC
500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 40 kA
(230 V AC) 40 kA
(240 V AC) 40 kA
(380 V AC) 25 kA
(415 V AC) 25 kA
(440 V AC) 12.5 kA
(500 V AC) 9 kA
(525 V AC) 8 kA
(690 V AC) 4 kA
(250 V DC) 2 Poles in Series 25 kA
(500 V DC) 3 Poles in Series 25 kA
(220 V AC) 40 kA
(230 V AC) 40 kA
(240 V AC) 40 kA
(380 V AC) 25 kA
(415 V AC) 25 kA
(440 V AC) 12.5 kA
(500 V AC) 9 kA
(525 V AC) 8 kA
(690 V AC) 4 kA
(250 V DC) 2 Poles in Series 25 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 40 kA
(230 V AC) 40 kA
(240 V AC) 40 kA
(380 V AC) 25 kA
(415 V AC) 25 kA
(440 V AC) 25 kA
(500 V AC) 18 kA
(525 V AC) 8 kA
(690 V AC) 4 kA
(250 V DC) 2 Poles in Series 25 kA
(500 V DC) 3 Poles in Series 25 kA
(220 V AC) 40 kA
(230 V AC) 40 kA
(240 V AC) 40 kA
(380 V AC) 25 kA
(415 V AC) 25 kA
(440 V AC) 25 kA
(500 V AC) 18 kA
(525 V AC) 8 kA
(690 V AC) 4 kA
(250 V DC) 2 Poles in Series 25 kA
Rated Uninterrupted Current (Iu):
160 A
Rated Voltage (Ur):
690 V
Recommended Screw Driver:
Main Circuit M6
Release:
TMD
Release Type:
TM
Setting Range:
112...160 A
Short-Circuit Performance Level:
C
Standards:
IEC60947-2
Sub-type:
XT1
Terminal Connection Type:
Front
Terminal Type:
Bolt
Tightening Torque:
6 N·m

Certificates and Declarations

ATEX Certificate:
Declaration of Conformity - CE:
GL Certificate:
LR Certificate:
UL Certificate:
VDE Certificate:
Dimension Diagram:
Mechanical Drawings:
Instructions and Manuals:

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code:
Q
UNSPSC:
39120000
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
Price on request
Ask for quote

Notify Me When Available
