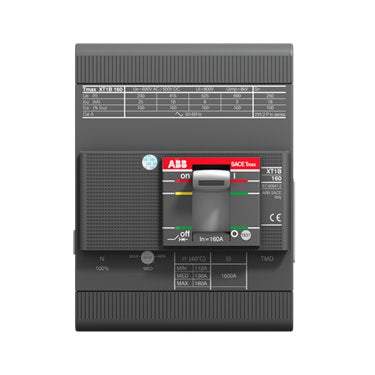

1SDA066820R1 ABB XT1B 160 TMD 160-1600 4p F F InN50%

1SDA066820R1 ABB XT1B 160 TMD 160-1600 4p F F InN50%

ABB EcoSolutions

ABB EcoSolutions:
Yes
ABB Site Meeting Group Waste To Landfill Target:
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 55.9 %

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
0f47cb36-72fe-475b-9d44-e7162dd91cf8 Italy
Simplified SCIP:
e789caf7-2f0e-4a4e-ac89-3ed7c162c3cb Germany
f3b389ae-ee49-4f3c-ac8e-d9aa64d6309c Poland
6b679552-522c-4e98-b9ce-44ded6762588 Norway
55ba062a-70fe-453d-86df-d06fec9ae32d Finland
9461b33e-03e0-44ca-999e-e6a998cfacd9 Netherlands
03403a8d-3037-410c-8b89-fe964747db15 Denmark
d5c79654-79e3-4468-8f04-7d01b97952d3 Germany
f01beedf-c29a-49a7-9e6b-9726c78d534f Croatia
d7bc5acf-2cfd-46d0-8b61-d9222f7251dd Czech Republic
c8ce45bc-d563-4a02-8439-7a9973037324 Poland
59900f81-babd-48db-98f3-730c4bb583a7 Netherlands
3df8cff5-a6af-4e4c-8da2-1f1cf2458358 Netherlands
8a9e0ab1-ddd0-4732-a15f-629488d1d7b0 Estonia
2dba0553-3a06-4d82-96ee-8f5468b20d8a Greece
84bfff2d-ab17-4788-889c-104b089752e0 Portugal
7178081c-1c8e-4ac5-b349-298a1ba6fa1e Bulgaria
6b75e419-c8c2-42ab-8fd5-75b76d1db38b Sweden
452acd20-9e7a-4539-a4b5-961431173a77 Poland
3d7d4679-2709-4d9c-8a78-f6dfac23e0ac France
c235ef43-1cd7-460c-bc13-079a2dc68c50 Germany
a6fc3fa7-b397-4ab3-a9bb-def664af2c9b Sweden
8e539e72-891c-4ca0-af09-3e5ab3ecd832 Germany
fe1f9b73-5333-4870-a3b4-5c399315d6c0 Germany
3c755ed1-9f8e-4276-adc9-1f6fc523398c France
702ebc5d-84ec-46cf-8c90-9064bf328fbe Netherlands
c9ab9560-a8c3-46ca-b1c9-0014085708f1 Spain
0ff56839-d670-4504-90a9-cd544fd5f037 Netherlands
e789caf7-2f0e-4a4e-ac89-3ed7c162c3cb Germany
f3b389ae-ee49-4f3c-ac8e-d9aa64d6309c Poland
6b679552-522c-4e98-b9ce-44ded6762588 Norway
55ba062a-70fe-453d-86df-d06fec9ae32d Finland
9461b33e-03e0-44ca-999e-e6a998cfacd9 Netherlands
03403a8d-3037-410c-8b89-fe964747db15 Denmark
d5c79654-79e3-4468-8f04-7d01b97952d3 Germany
f01beedf-c29a-49a7-9e6b-9726c78d534f Croatia
d7bc5acf-2cfd-46d0-8b61-d9222f7251dd Czech Republic
c8ce45bc-d563-4a02-8439-7a9973037324 Poland

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
XT1BEN160AFF000XXX
E-Number (Finland):
3640503
EAN:
8015644694548
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
101.6 mm
Product Net Height:
130 mm
Product Net Depth / Length:
70 mm
Product Net Weight:
1.4 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
128 mm
Package Level 1 Height:
135 mm
Package Level 1 Depth / Length:
143 mm
Package Level 1 Gross Weight:
1.452 kg
Package Level 1 EAN:
8015644694548

Additional Information

Circuit Breaker Type to be Associated:
Power Distribution
Product Main Type:
SACE Tmax XT
Product Name:
Moulded Case Circuit Breaker
Product Type:
Automatic Circuit Breaker
Version:
F
CAD Dimensional Drawing:

Technical

Connecting Capacity Main Circuit:
Busbar 45.5 ... 80 mm²
Current Type:
AC/DC
Electrical Durability:
120 cycles per hour
8000 cycle
120 cycles per hour
8000 cycle
Mechanical Durability:
240 cycles per hour
25000 cycle
240 cycles per hour
25000 cycle
Number of Poles:
4P
Opening Time:
CB with SOR 30 ms
CB with UVR 30 ms
CB with SOR 30 ms
CB with UVR 30 ms
Order Multiple:
1 piece
Power Loss:
at Rated Operating Conditions per Pole 15 W
Rated Current (In):
160 A
Rated Frequency (f):
50 / 60 Hz
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii):
1600 A
Rated Insulation Voltage (Ui):
800 V
Rated Operational Voltage:
690 V AC
500 V DC
690 V AC
500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 25 kA
(230 V AC) 25 kA
(240 V AC) 25 kA
(380 V AC) 18 kA
(415 V AC) 18 kA
(440 V AC) 11.25 kA
(500 V AC) 8 kA
(525 V AC) 6 kA
(690 V AC) 3 kA
(250 V DC) 2 Poles in Series 18 kA
(500 V DC) 3 Poles in Series 18 kA
(220 V AC) 25 kA
(230 V AC) 25 kA
(240 V AC) 25 kA
(380 V AC) 18 kA
(415 V AC) 18 kA
(440 V AC) 11.25 kA
(500 V AC) 8 kA
(525 V AC) 6 kA
(690 V AC) 3 kA
(250 V DC) 2 Poles in Series 18 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 25 kA
(230 V AC) 25 kA
(240 V AC) 25 kA
(380 V AC) 18 kA
(415 V AC) 18 kA
(440 V AC) 15 kA
(500 V AC) 8 kA
(525 V AC) 6 kA
(690 V AC) 3 kA
(250 V DC) 2 Poles in Series 18 kA
(500 V DC) 3 Poles in Series 18 kA
(220 V AC) 25 kA
(230 V AC) 25 kA
(240 V AC) 25 kA
(380 V AC) 18 kA
(415 V AC) 18 kA
(440 V AC) 15 kA
(500 V AC) 8 kA
(525 V AC) 6 kA
(690 V AC) 3 kA
(250 V DC) 2 Poles in Series 18 kA
Rated Uninterrupted Current (Iu):
160 A
Rated Voltage (Ur):
690 V
Recommended Screw Driver:
Main Circuit M6
Release:
TMD
Release Type:
TM
Setting Range:
112...160 A
Short-Circuit Performance Level:
B
Standards:
IEC60947-2
Sub-type:
XT1
Terminal Connection Type:
Front
Terminal Type:
Bolt
Tightening Torque:
6 N·m

Certificates and Declarations

ATEX Certificate:
Declaration of Conformity - CE:
GL Certificate:
LR Certificate:
UL Certificate:
VDE Certificate:
Dimension Diagram:
Mechanical Drawings:
Instructions and Manuals:

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code:
Q
UNSPSC:
39120000
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
