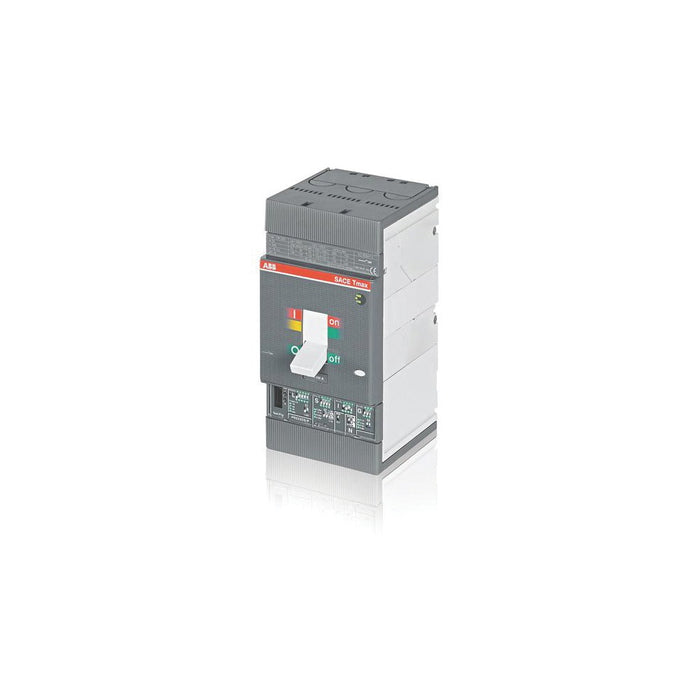

1SDA063417R1 ABB - T4V 250 TMA 250-2500 3p F FC 1150V AC

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Ordering

EAN:
8015644660369
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85352100

Dimensions

Product Net Width:
105 mm
Product Net Height:
205 mm
Product Net Depth / Length:
103.5 mm
Product Net Weight:
2.35 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
248 mm
Package Level 1 Height:
240 mm
Package Level 1 Depth / Length:
285 mm
Package Level 1 Gross Weight:
2.5 kg
Package Level 1 EAN:
8015644660369

Additional Information

Product Main Type:
SACE Tmax T
Product Name:
Moulded Case Circuit Breaker
Product Type:
Automatic Circuit Breaker
Version:
F

Technical

Number of Poles:
3P
Power Loss:
at Rated Operating Conditions per Pole 13.7 W
Rated Current (In):
250 A
Rated Operational Voltage:
1150 V AC
1000 V DC
1150 V AC
1000 V DC
Rated Service Short-Circuit Breaking Capacity (Ics):
(1000 V AC) 12 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(415 V AC) 200 kA
(1000 V AC) 20 kA
(415 V AC) 200 kA
(1000 V AC) 20 kA
Rated Uninterrupted Current (Iu):
250 A
Release:
TMA
Release Type:
TM
Short-Circuit Performance Level:
V
Standards:
IEC
Sub-type:
T4
Terminal Connection Type:
Fixed Circuit-Breakers
Front for Copper Cables
Fixed Circuit-Breakers
Front for Copper Cables

Certificates and Declarations

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code:
Q
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
Est. delivery between and
Estimated delivery dates are estimates only. Int'l customers allow a few more days. For more precise delivery estimates, please contact us at support@plc-direct.com. Contact us in advance for expedited shipping options.
Sale price€596,95
1-year warranty
FREE WORDWIDE SHIPPING
Condition:
€596,95
€0,00
