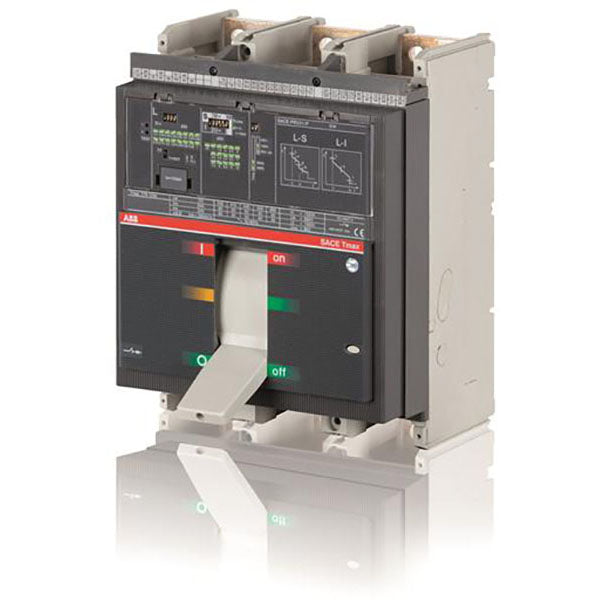

1SDA062739R1 ABB - T7S 1000 PR232/P LSI In=1000A 3p F F

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
50119480-8e78-40e8-858a-3b66e41a48af Italy
Simplified SCIP:
1fe07a2b-1782-4cfa-85e2-7be69721b752 Finland
3e032772-3e25-4b90-a5b2-8b3ce9a179c8 Germany
ff5fe79a-8bef-4ef5-948f-5d9c332a1854 Estonia
50f4b5b0-ecf6-499f-9e3f-b42a724316dc Germany
2d6673b0-a1a8-4a0a-bbe4-1e5a08e16926 Netherlands
ffb8a85c-fa7c-4252-ae3e-e076f70ad6db France
240958ac-9557-43ca-abbd-9426b6e1d3dc Germany
24ccb912-f15d-4e1d-a541-d535f06561db Denmark
4b63b0a2-0706-4446-b0f0-c63aea8eca9c Sweden
66204651-e611-4b89-b77c-ee2db80593bf Germany
831b7c95-e687-41e5-9b25-719e4ca365d8 Sweden
bc4eb216-2bc2-4ecc-9eba-f7abe80c6c48 Hungary
bf4311a7-50d3-456e-a5d7-ca0449e00cb1 Croatia
e33ed063-f204-4c86-805f-23b654b77cc5 Portugal
b60227c4-2cba-4c52-a35a-13dd1560ce05 Poland
8258e1ad-cd73-4c0a-bffd-1f2b6b8098ca Czech Republic
81d5f631-6a4b-433e-9b8f-4eb400f33b78 Poland
20b81d02-4e55-465e-bb5d-8206f20602ee Greece
5f7f3435-563b-44a4-afdb-43562beb1c52 Bulgaria
625bb0dd-f876-4a9d-ae9a-5361562efba0 Belgium
70efc039-67ac-4ca9-adf5-181204653904 France
2402a9ac-b1ef-45c1-98b8-a38ca800b04e Spain
159d18dc-24da-4c96-ab62-7925a86793d7 Germany
6ff94cd8-3565-4d27-ac6b-cdc6c48e6b22 Hungary
9e19169d-d2e3-4852-b40c-2c8a4609ca5e Poland
e91b4ffd-e38f-4559-ab79-030f6ec57b75 Norway
a6a28357-7721-423b-a57c-b37941524579 Belgium
1fe07a2b-1782-4cfa-85e2-7be69721b752 Finland
3e032772-3e25-4b90-a5b2-8b3ce9a179c8 Germany
ff5fe79a-8bef-4ef5-948f-5d9c332a1854 Estonia
50f4b5b0-ecf6-499f-9e3f-b42a724316dc Germany
2d6673b0-a1a8-4a0a-bbe4-1e5a08e16926 Netherlands
ffb8a85c-fa7c-4252-ae3e-e076f70ad6db France
240958ac-9557-43ca-abbd-9426b6e1d3dc Germany
24ccb912-f15d-4e1d-a541-d535f06561db Denmark
4b63b0a2-0706-4446-b0f0-c63aea8eca9c Sweden
66204651-e611-4b89-b77c-ee2db80593bf Germany

Ordering

EAN:
8015644652883
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
210 mm
Product Net Height:
268 mm
Product Net Depth / Length:
154 mm
Product Net Weight:
9.7 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
280 mm
Package Level 1 Height:
350 mm
Package Level 1 Depth / Length:
360 mm
Package Level 1 Gross Weight:
11.2 kg
Package Level 1 EAN:
8015644652883

Additional Information

Product Main Type:
SACE Tmax T
Product Name:
Moulded Case Circuit Breaker
Product Type:
Automatic Circuit Breaker
Suitable For:
T7
Suitable for Product Class:
Moulded Case Circuit Breakers
Version:
F

Technical

Electrical Durability:
2000 cycle
60 cycles per hour
2000 cycle
60 cycles per hour
Mechanical Durability:
10000 cycle
60 cycles per hour
10000 cycle
60 cycles per hour
Number of Poles:
3P
Power Loss:
at Rated Operating Conditions per Pole 30 W
Rated Current (In):
1000 A
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Voltage:
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 50 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 40 kA
(690 V AC) 30 kA
(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 50 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 40 kA
(690 V AC) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 20 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 50 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 40 kA
(690 V AC) 30 kA
(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 50 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 40 kA
(690 V AC) 30 kA
Rated Uninterrupted Current (Iu):
1000 A
Release:
PR232/P-LSI
Release Type:
EL
Short-Circuit Performance Level:
S
Standards:
IEC
Sub-type:
T7
Terminal Connection Type:
Fixed Circuit-Breakers
Front
Fixed Circuit-Breakers
Front

Certificates and Declarations

Data Sheet, Technical Information:
Declaration of Conformity - CE:
GL Certificate:
Instructions and Manuals:

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code:
Q
UNSPSC:
39121100
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
Price on request
Ask for quote


Notify Me When Available

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
50119480-8e78-40e8-858a-3b66e41a48af Italy
Simplified SCIP:
1fe07a2b-1782-4cfa-85e2-7be69721b752 Finland
3e032772-3e25-4b90-a5b2-8b3ce9a179c8 Germany
ff5fe79a-8bef-4ef5-948f-5d9c332a1854 Estonia
50f4b5b0-ecf6-499f-9e3f-b42a724316dc Germany
2d6673b0-a1a8-4a0a-bbe4-1e5a08e16926 Netherlands
ffb8a85c-fa7c-4252-ae3e-e076f70ad6db France
240958ac-9557-43ca-abbd-9426b6e1d3dc Germany
24ccb912-f15d-4e1d-a541-d535f06561db Denmark
4b63b0a2-0706-4446-b0f0-c63aea8eca9c Sweden
66204651-e611-4b89-b77c-ee2db80593bf Germany
831b7c95-e687-41e5-9b25-719e4ca365d8 Sweden
bc4eb216-2bc2-4ecc-9eba-f7abe80c6c48 Hungary
bf4311a7-50d3-456e-a5d7-ca0449e00cb1 Croatia
e33ed063-f204-4c86-805f-23b654b77cc5 Portugal
b60227c4-2cba-4c52-a35a-13dd1560ce05 Poland
8258e1ad-cd73-4c0a-bffd-1f2b6b8098ca Czech Republic
81d5f631-6a4b-433e-9b8f-4eb400f33b78 Poland
20b81d02-4e55-465e-bb5d-8206f20602ee Greece
5f7f3435-563b-44a4-afdb-43562beb1c52 Bulgaria
625bb0dd-f876-4a9d-ae9a-5361562efba0 Belgium
70efc039-67ac-4ca9-adf5-181204653904 France
2402a9ac-b1ef-45c1-98b8-a38ca800b04e Spain
159d18dc-24da-4c96-ab62-7925a86793d7 Germany
6ff94cd8-3565-4d27-ac6b-cdc6c48e6b22 Hungary
9e19169d-d2e3-4852-b40c-2c8a4609ca5e Poland
e91b4ffd-e38f-4559-ab79-030f6ec57b75 Norway
a6a28357-7721-423b-a57c-b37941524579 Belgium
1fe07a2b-1782-4cfa-85e2-7be69721b752 Finland
3e032772-3e25-4b90-a5b2-8b3ce9a179c8 Germany
ff5fe79a-8bef-4ef5-948f-5d9c332a1854 Estonia
50f4b5b0-ecf6-499f-9e3f-b42a724316dc Germany
2d6673b0-a1a8-4a0a-bbe4-1e5a08e16926 Netherlands
ffb8a85c-fa7c-4252-ae3e-e076f70ad6db France
240958ac-9557-43ca-abbd-9426b6e1d3dc Germany
24ccb912-f15d-4e1d-a541-d535f06561db Denmark
4b63b0a2-0706-4446-b0f0-c63aea8eca9c Sweden
66204651-e611-4b89-b77c-ee2db80593bf Germany

Ordering

EAN:
8015644652883
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
210 mm
Product Net Height:
268 mm
Product Net Depth / Length:
154 mm
Product Net Weight:
9.7 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
280 mm
Package Level 1 Height:
350 mm
Package Level 1 Depth / Length:
360 mm
Package Level 1 Gross Weight:
11.2 kg
Package Level 1 EAN:
8015644652883

Additional Information

Product Main Type:
SACE Tmax T
Product Name:
Moulded Case Circuit Breaker
Product Type:
Automatic Circuit Breaker
Suitable For:
T7
Suitable for Product Class:
Moulded Case Circuit Breakers
Version:
F

Technical

Electrical Durability:
2000 cycle
60 cycles per hour
2000 cycle
60 cycles per hour
Mechanical Durability:
10000 cycle
60 cycles per hour
10000 cycle
60 cycles per hour
Number of Poles:
3P
Power Loss:
at Rated Operating Conditions per Pole 30 W
Rated Current (In):
1000 A
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Voltage:
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 50 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 40 kA
(690 V AC) 30 kA
(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 50 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 40 kA
(690 V AC) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 20 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 50 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 40 kA
(690 V AC) 30 kA
(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 50 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 40 kA
(690 V AC) 30 kA
Rated Uninterrupted Current (Iu):
1000 A
Release:
PR232/P-LSI
Release Type:
EL
Short-Circuit Performance Level:
S
Standards:
IEC
Sub-type:
T7
Terminal Connection Type:
Fixed Circuit-Breakers
Front
Fixed Circuit-Breakers
Front

Certificates and Declarations

Data Sheet, Technical Information:
Declaration of Conformity - CE:
GL Certificate:
Instructions and Manuals:

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code:
Q
UNSPSC:
39121100
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code:
Q
UNSPSC:
39121100
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409

All PLC Direct products come with a 1-year warranty. The warranty is issued by PLC Direct. Warranty coverage commences at the date of purchase. The warranty is for mechanical defects or failures not caused by human factors including but not limited to (a) incorrect installation, (b) operating the unit in sub-optimal conditions or in scenarios not recommended by the manufacturer, (c) poor unit maintenance, etc. The warranty does not cover programming or software related issues.

If the product is eligible for PLC Direct’s warranty coverage and the customer encounters an issue with the product, we will request the item is shipped to us for diagnosis and examination. Regardless of the cause of product issues, the customer will bear responsibility for the cost of shipping the unit to PLC Direct for evaluation. Where the unit was damaged by human factors, we will offer a repair or replace quote; in cases where damage was caused by human factors, the customer is responsible for the cost of shipping the repaired/replaced unit from PLC Direct to the customer. Where the unit was not damaged by human factors but is covered by PLC Direct’s warranty, we will repair or replace the unit at our cost (or, in rare cases, refund you your purchase); in such cases, PLC Direct will bear the cost of shipping the repaired or replaced product back to the customer. It is up to PLC Direct’s discretion whether to repair, replace, or refund the customer in such cases. Diagnoses can take time to complete based on technician availability and the complexity of diagnosis.

In no event shall PLC Direct be liable for any damages except actual damages up to, but not exceeding, the amount paid to us for the product, including we shall not be liable for any consequential or indirect damages or lost profits whether or not advised of same.

PLC Direct offers free shipping worldwide. Product ship from a various warehouses worldwide based on the customer's and the product's location. The estimated delivery date on the product page is PLC Direct's best estimated assuming a US-based shipping destination.

Regardless of where the product is shipping from, PLC Direct covers all duties for US-based shipping destinations. For non-US-based shipping destinations, customers are responsible for duties as appropriate.

PLC Direct's focus is on balancing price with lead time. Some but not all products can be expedited. If you have questions about delivery ETAs, please contact our team.
