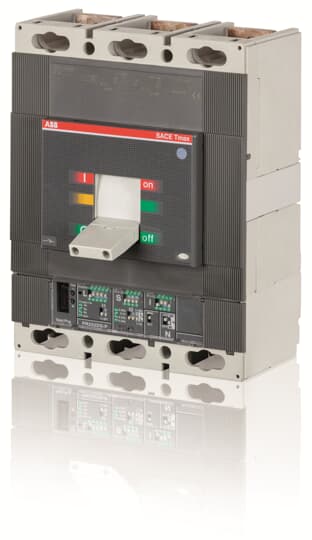

1SDA060291R1 ABB - T6H 800 PR222DS/P-LSI In=800 3p F F

1SDA060291R1 ABB - T6H 800 PR222DS/P-LSI In=800 3p F F

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
4c4fb86b-ae65-4ed7-b7ea-2c58c6dd8d49 China
Simplified SCIP:
7406c36f-b692-48df-bf57-27f57898fbbd Sweden
960ef312-f60c-4228-b241-d9856eff762b Germany
2c66a93f-48af-47e8-9048-fafa96c50e49 Spain
08e99360-e259-4e62-b1dc-8227f843d6cf France
b4e3995b-ac52-4df1-999b-75307bbad35d Belgium
8f7f77c8-4819-4071-a7d4-0b8eea8dcf9d Sweden
ca76b3ea-3f12-4fbf-9ae4-49f155223ea3 Poland
1e76e74d-7dab-410d-854b-c6d567b0184e France
ba92bd3e-b029-4cfd-a568-4fecb3af35c9 Bulgaria
e88f6b37-08e0-46c9-b90e-33db56b66985 Portugal
42920242-8fa9-4955-bb02-85d34ce86e2f Germany
03cb3d1c-48e0-4d95-b670-1977335909f5 Hungary
78396a6e-b1ec-4d62-924e-b5debad431f8 Estonia
66dff763-5b1d-4941-920e-9579c3176814 Greece
af0f8d85-fcfd-41fa-a18d-ab8a3ffe301e Hungary
36aac9d5-f6e2-4b63-892e-25fc75b59187 Netherlands
7175dbc9-0d55-479e-bd00-fca84a64bae2 Poland
f4ebaad9-342a-4c24-9eb5-d2501abb66ae Finland
4465d6b8-9897-4b25-963e-0142fd215b57 Belgium
b78bf2b1-6c79-450e-b44b-85a6a861b80a Norway
37ed05ca-fe84-484d-a214-71ded35a5226 Czech Republic
f875afcf-0bc5-40ed-9359-fd9474b96b9d Poland
1b340131-6325-40a4-8da2-ea22d2f163b5 Croatia
861be483-274d-40e3-9ee2-53cbb7f91f5e Germany
070961b3-3ff7-43f9-a0eb-e3b4475efe22 Germany
1856500a-0b1d-42bf-b523-9363baa142b3 Germany
0ea75a68-299d-43c5-94dd-a6cf54726593 Denmark
7406c36f-b692-48df-bf57-27f57898fbbd Sweden
960ef312-f60c-4228-b241-d9856eff762b Germany
2c66a93f-48af-47e8-9048-fafa96c50e49 Spain
08e99360-e259-4e62-b1dc-8227f843d6cf France
b4e3995b-ac52-4df1-999b-75307bbad35d Belgium
8f7f77c8-4819-4071-a7d4-0b8eea8dcf9d Sweden
ca76b3ea-3f12-4fbf-9ae4-49f155223ea3 Poland
1e76e74d-7dab-410d-854b-c6d567b0184e France
ba92bd3e-b029-4cfd-a568-4fecb3af35c9 Bulgaria
e88f6b37-08e0-46c9-b90e-33db56b66985 Portugal

Ordering

E-Number (Finland):
3655442
EAN:
8015644627522
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
210 mm
Product Net Height:
268 mm
Product Net Depth / Length:
103.5 mm
Product Net Weight:
9.5 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
305 mm
Package Level 1 Height:
285 mm
Package Level 1 Depth / Length:
370 mm
Package Level 1 Gross Weight:
11 kg
Package Level 1 EAN:
8015644627522

Additional Information

Product Main Type:
SACE Tmax T
Product Name:
Moulded Case Circuit Breaker
Product Type:
Automatic Circuit Breaker
Suitable For:
T6
Suitable for Product Class:
Moulded Case Circuit Breakers
Version:
F

Technical

Electrical Durability:
5000 cycle
60 cycles per hour
5000 cycle
60 cycles per hour
Mechanical Durability:
20000 cycle
120 cycles per hour
20000 cycle
120 cycles per hour
Number of Poles:
3P
Power Loss:
at Rated Operating Conditions per Pole 32 W
Rated Current (In):
800 A
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Voltage:
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 70 kA
(400 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 50 kA
(500 V AC) 50 kA
(690 V AC) 19 kA
(220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 70 kA
(400 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 50 kA
(500 V AC) 50 kA
(690 V AC) 19 kA
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 10 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 70 kA
(400 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 50 kA
(500 V AC) 50 kA
(690 V AC) 25 kA
(220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 70 kA
(400 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 50 kA
(500 V AC) 50 kA
(690 V AC) 25 kA
Rated Uninterrupted Current (Iu):
800 A
Release:
PR222DS/P-LSI
Release Type:
EL
Short-Circuit Performance Level:
H
Standards:
IEC
Sub-type:
T6
Terminal Connection Type:
Fixed Circuit-Breakers
Front
Fixed Circuit-Breakers
Front
Test Voltage Max (Utest):
3500 V

Certificates and Declarations

Data Sheet, Technical Information:
Declaration of Conformity - CE:

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code:
Q
UNSPSC:
39121100
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
Price on request
Ask for quote

Notify Me When Available

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
4c4fb86b-ae65-4ed7-b7ea-2c58c6dd8d49 China
Simplified SCIP:
7406c36f-b692-48df-bf57-27f57898fbbd Sweden
960ef312-f60c-4228-b241-d9856eff762b Germany
2c66a93f-48af-47e8-9048-fafa96c50e49 Spain
08e99360-e259-4e62-b1dc-8227f843d6cf France
b4e3995b-ac52-4df1-999b-75307bbad35d Belgium
8f7f77c8-4819-4071-a7d4-0b8eea8dcf9d Sweden
ca76b3ea-3f12-4fbf-9ae4-49f155223ea3 Poland
1e76e74d-7dab-410d-854b-c6d567b0184e France
ba92bd3e-b029-4cfd-a568-4fecb3af35c9 Bulgaria
e88f6b37-08e0-46c9-b90e-33db56b66985 Portugal
42920242-8fa9-4955-bb02-85d34ce86e2f Germany
03cb3d1c-48e0-4d95-b670-1977335909f5 Hungary
78396a6e-b1ec-4d62-924e-b5debad431f8 Estonia
66dff763-5b1d-4941-920e-9579c3176814 Greece
af0f8d85-fcfd-41fa-a18d-ab8a3ffe301e Hungary
36aac9d5-f6e2-4b63-892e-25fc75b59187 Netherlands
7175dbc9-0d55-479e-bd00-fca84a64bae2 Poland
f4ebaad9-342a-4c24-9eb5-d2501abb66ae Finland
4465d6b8-9897-4b25-963e-0142fd215b57 Belgium
b78bf2b1-6c79-450e-b44b-85a6a861b80a Norway
37ed05ca-fe84-484d-a214-71ded35a5226 Czech Republic
f875afcf-0bc5-40ed-9359-fd9474b96b9d Poland
1b340131-6325-40a4-8da2-ea22d2f163b5 Croatia
861be483-274d-40e3-9ee2-53cbb7f91f5e Germany
070961b3-3ff7-43f9-a0eb-e3b4475efe22 Germany
1856500a-0b1d-42bf-b523-9363baa142b3 Germany
0ea75a68-299d-43c5-94dd-a6cf54726593 Denmark
7406c36f-b692-48df-bf57-27f57898fbbd Sweden
960ef312-f60c-4228-b241-d9856eff762b Germany
2c66a93f-48af-47e8-9048-fafa96c50e49 Spain
08e99360-e259-4e62-b1dc-8227f843d6cf France
b4e3995b-ac52-4df1-999b-75307bbad35d Belgium
8f7f77c8-4819-4071-a7d4-0b8eea8dcf9d Sweden
ca76b3ea-3f12-4fbf-9ae4-49f155223ea3 Poland
1e76e74d-7dab-410d-854b-c6d567b0184e France
ba92bd3e-b029-4cfd-a568-4fecb3af35c9 Bulgaria
e88f6b37-08e0-46c9-b90e-33db56b66985 Portugal

Ordering

E-Number (Finland):
3655442
EAN:
8015644627522
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
210 mm
Product Net Height:
268 mm
Product Net Depth / Length:
103.5 mm
Product Net Weight:
9.5 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
305 mm
Package Level 1 Height:
285 mm
Package Level 1 Depth / Length:
370 mm
Package Level 1 Gross Weight:
11 kg
Package Level 1 EAN:
8015644627522

Additional Information

Product Main Type:
SACE Tmax T
Product Name:
Moulded Case Circuit Breaker
Product Type:
Automatic Circuit Breaker
Suitable For:
T6
Suitable for Product Class:
Moulded Case Circuit Breakers
Version:
F

Technical

Electrical Durability:
5000 cycle
60 cycles per hour
5000 cycle
60 cycles per hour
Mechanical Durability:
20000 cycle
120 cycles per hour
20000 cycle
120 cycles per hour
Number of Poles:
3P
Power Loss:
at Rated Operating Conditions per Pole 32 W
Rated Current (In):
800 A
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Voltage:
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 70 kA
(400 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 50 kA
(500 V AC) 50 kA
(690 V AC) 19 kA
(220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 70 kA
(400 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 50 kA
(500 V AC) 50 kA
(690 V AC) 19 kA
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 10 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 70 kA
(400 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 50 kA
(500 V AC) 50 kA
(690 V AC) 25 kA
(220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 70 kA
(400 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 50 kA
(500 V AC) 50 kA
(690 V AC) 25 kA
Rated Uninterrupted Current (Iu):
800 A
Release:
PR222DS/P-LSI
Release Type:
EL
Short-Circuit Performance Level:
H
Standards:
IEC
Sub-type:
T6
Terminal Connection Type:
Fixed Circuit-Breakers
Front
Fixed Circuit-Breakers
Front
Test Voltage Max (Utest):
3500 V

Certificates and Declarations

Data Sheet, Technical Information:
Declaration of Conformity - CE:

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code:
Q
UNSPSC:
39121100
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code:
Q
UNSPSC:
39121100
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
