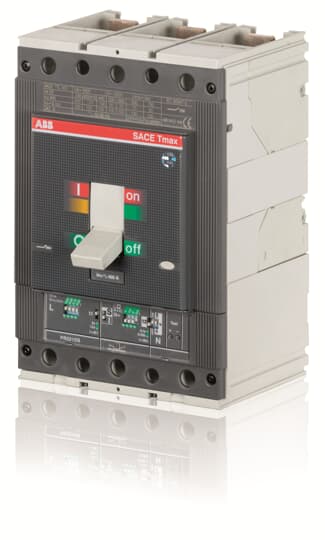

1SDA054316R1 ABB - T5N 400 PR221DS-LS/I In=320 3p F F

1SDA054316R1 ABB - T5N 400 PR221DS-LS/I In=320 3p F F

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
b5040a8e-11bf-4959-8f69-1cc18a74d4af Italy
Simplified SCIP:
9b0d959f-5af0-4928-95e4-e5537e054b7b Germany
f42fb22c-d9f1-4e0f-bd3d-5a6353b18f93 Finland
1c12fb89-a4a1-4316-8555-066b78073c90 Netherlands
37efdf1a-5a34-41b2-9ebf-521666f49301 Norway
4e1816c9-8807-4a55-8308-150907ccb6b9 Poland
9f788c3f-620b-462b-a7f6-8dd62af6466b Bulgaria
ce4d2727-260c-45b8-9a8d-856b8e736351 Sweden
9a90d430-a99d-490a-b4ad-765ccb9f2cbc Poland
ad1e7d85-518d-4cab-a666-b6e6c8d96f16 France
949b5e35-294e-484f-8120-26909467804f Sweden
b03e65c2-4054-43a8-af1b-bdee7e65b012 Germany
855246ee-eca9-467a-bd8e-193396cd3ff1 Netherlands
1583b4f7-0b77-4ec1-87ef-4329399842b6 France
8d84c911-02d1-4994-b68a-da3984d10dbf Germany
29569852-82a4-4521-ab51-2a575645d8f8 Denmark
d8c15d73-3e04-45ad-a630-8e3b9a093202 Germany
ba64458d-be8a-4415-bf2e-53a6f5a506e5 Croatia
0b5d7f3d-a064-45cd-ae10-519ea917a0b8 Czech Republic
04a6bde6-1c2e-4464-ada9-e3b43750be76 Poland
c6999f81-8785-4432-9bc9-7d5f0249c9c6 Netherlands
7236dc59-b45f-4fad-a41d-29e12d5c5e72 Netherlands
4e85622e-fece-4a0d-94c4-59dd08c64abe Estonia
83237862-f020-4401-909c-6c04a8af144e Greece
a38b14c1-047c-4603-ad8a-cd8ee5fbd751 Portugal
4b1739b6-3b14-459d-8b23-3936d5869c4a Spain
cc55fd44-c0dc-4457-add2-1bf920cf0fe0 Netherlands
f1fb38f6-683a-4c10-b21b-e2538d819f5a Germany
9b0d959f-5af0-4928-95e4-e5537e054b7b Germany
f42fb22c-d9f1-4e0f-bd3d-5a6353b18f93 Finland
1c12fb89-a4a1-4316-8555-066b78073c90 Netherlands
37efdf1a-5a34-41b2-9ebf-521666f49301 Norway
4e1816c9-8807-4a55-8308-150907ccb6b9 Poland
9f788c3f-620b-462b-a7f6-8dd62af6466b Bulgaria
ce4d2727-260c-45b8-9a8d-856b8e736351 Sweden
9a90d430-a99d-490a-b4ad-765ccb9f2cbc Poland
ad1e7d85-518d-4cab-a666-b6e6c8d96f16 France
949b5e35-294e-484f-8120-26909467804f Sweden

Ordering

E-Number (Finland):
3655321
E-Number (Norway):
4383608
E-Number (Sweden):
3180372
EAN:
8015644552619
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
140 mm
Product Net Height:
205 mm
Product Net Depth / Length:
103.5 mm
Product Net Weight:
4.849 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
248 mm
Package Level 1 Height:
240 mm
Package Level 1 Depth / Length:
285 mm
Package Level 1 Gross Weight:
5.1 kg
Package Level 1 EAN:
8015644552619

Additional Information

Product Main Type:
SACE Tmax T
Product Name:
Moulded Case Circuit Breaker
Product Type:
Automatic Circuit Breaker
Suitable For:
T5
Suitable for Product Class:
Moulded Case Circuit Breakers
Version:
F

Technical

Electrical Durability:
7000 cycle
60 cycles per hour
7000 cycle
60 cycles per hour
Mechanical Durability:
20000 cycle
120 cycles per hour
20000 cycle
120 cycles per hour
Number of Poles:
3P
Power Loss:
at Rated Operating Conditions per Pole 10.6 W
Rated Current (In):
320 A
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Voltage:
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 70 kA
(230 V AC) 70 kA
(380 V AC) 36 kA
(400 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 30 kA
(500 V AC) 25 kA
(690 V AC) 20 kA
(220 V AC) 70 kA
(230 V AC) 70 kA
(380 V AC) 36 kA
(400 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 30 kA
(500 V AC) 25 kA
(690 V AC) 20 kA
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 5 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 70 kA
(230 V AC) 70 kA
(380 V AC) 36 kA
(400 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 30 kA
(500 V AC) 25 kA
(690 V AC) 20 kA
(220 V AC) 70 kA
(230 V AC) 70 kA
(380 V AC) 36 kA
(400 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 30 kA
(500 V AC) 25 kA
(690 V AC) 20 kA
Rated Uninterrupted Current (Iu):
400 A
Release:
PR221DS-LS/I
Release Type:
EL
Short-Circuit Performance Level:
N
Standards:
IEC
Sub-type:
T5
Terminal Connection Type:
Fixed Circuit-Breakers
Front
Fixed Circuit-Breakers
Front
Test Voltage Max (Utest):
3500 V
Test Voltage at Industrial Frequency for 1 Minute:
3500 V

Certificates and Declarations

Data Sheet, Technical Information:
Declaration of Conformity - CE:
Instructions and Manuals:
Instructions and Manuals (Part 2):

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code:
Q
UNSPSC:
39121100
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
Est. delivery between and
Estimated delivery dates are estimates only. Int'l customers allow a few more days. For more precise delivery estimates, please contact us at support@plc-direct.com. Contact us in advance for expedited shipping options.
€553,95
1-year warranty
FREE WORDWIDE SHIPPING
Condition:
€553,95
€0,00
€0,00
