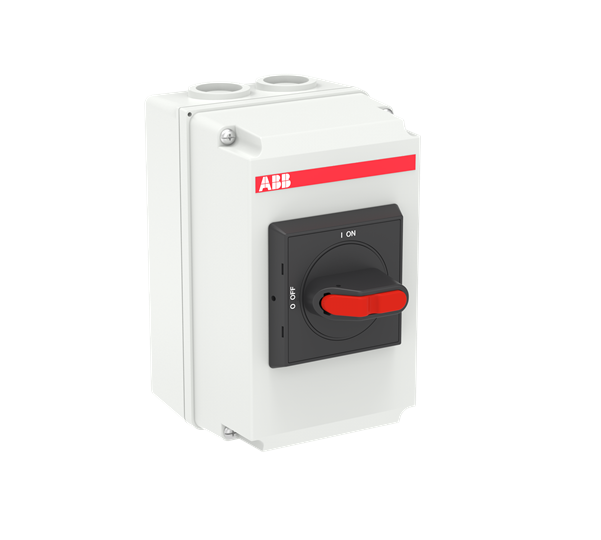

1SCA125154R1001 ABB - OTDCP25S12M

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP:
666bb568-fdd2-4673-afae-aa0be848f243 Finland
Simplified SCIP:
dc104efc-33a4-417f-9b92-9ebdd2fdd09e Germany
d8cc68b8-7542-4b03-a4ab-0c65268ca48a Spain
7eaeb0c1-29f7-436a-b336-45e098793c6b France
fb9b7d07-d4c5-474f-8867-be66624900b6 Croatia
2a181153-e543-4d20-803f-1ff88597dd9c Germany
b1756006-d49f-4068-87c6-21cc77d54b1c Czech Republic
5a935a34-e0d4-42cd-bf27-00061d886f4e Denmark
b6560db9-e971-4375-8bd9-319ec90a63a3 Italy
be2549ea-d24f-44ef-92df-834610ea7081 France
a968b35b-99d6-425a-ab4a-00a1a9249383 Germany
d3a9b629-c5df-4a36-b74a-5b72ca8b2c1b Sweden
e45cd5e9-cfe2-4068-9704-493f654d24e4 Germany
66e6feb4-a35d-4518-b27f-31c002c71003 Estonia
2ca0d96d-625e-4e7b-b4d8-a8f6a6b07f86 Hungary
c2c0a2cb-1121-4aba-b5b5-3c2df48e54ec Netherlands
6594cd5e-2cfa-4543-92b3-c7856a787a6f Poland
d4cf558e-60fc-45d8-8cf9-0f0ab734993d Poland
6ccf1cec-f476-472d-b67b-640026604c4f Norway
d8d542dc-8128-465d-ba6e-159b8efecef7 Hungary
73596b00-5a8a-4526-ae42-4c540b0f90d0 Belgium
ac3c337c-c769-4d8c-8507-f82e97bb64c2 Poland
6938f48b-4317-4c8e-ae95-790f1bd9756c Germany
04dcb333-3c14-4774-8bc8-03b647d558a6 Belgium
1918f3ec-9c9b-4c19-85f5-8c803898a0cb Portugal
5843c12f-d26c-4462-8bf4-b596b85502ce Greece
ef206ca9-5b64-4228-82fd-85522ceb9d5b Bulgaria
06504244-5de4-4e9c-b167-9b97892c15c7 Sweden
dc104efc-33a4-417f-9b92-9ebdd2fdd09e Germany
d8cc68b8-7542-4b03-a4ab-0c65268ca48a Spain
7eaeb0c1-29f7-436a-b336-45e098793c6b France
fb9b7d07-d4c5-474f-8867-be66624900b6 Croatia
2a181153-e543-4d20-803f-1ff88597dd9c Germany
b1756006-d49f-4068-87c6-21cc77d54b1c Czech Republic
5a935a34-e0d4-42cd-bf27-00061d886f4e Denmark
b6560db9-e971-4375-8bd9-319ec90a63a3 Italy
be2549ea-d24f-44ef-92df-834610ea7081 France
a968b35b-99d6-425a-ab4a-00a1a9249383 Germany

Popular Downloads

Environmental

Degree of Protection:
acc. to IEC 60529 IP65
Pollution Degree:
3

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85365080
Country or Territory of Origin:
Finland

Dimensions

Product Net Width:
95 mm
Product Net Height:
150 mm
Product Net Depth / Length:
95 mm
Product Net Weight:
0.64 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
142 mm
Package Level 1 Depth / Length:
167 mm
Package Level 1 Height:
130 mm
Package Level 1 Gross Weight:
0.7 kg
Package Level 1 EAN:
6417019554112

Technical

Cable Entry Position:
Up/Down
Cable Outlets Per Side:
2xM20 / 2xM20
Connecting Capacity Main Circuit:
Screw Clamp 2.5…16 mm²
Conventional Thermal Current (Ithe):
Fully Enclosed 25 A
Degree of Protection:
acc. to IEC 60529 IP65
Enclosure Material:
Plastic
Handle Color:
Black
Handle Type:
Selector handle
Mounted Auxiliary Contacts:
0 NO, 0 NC
Mounting Type:
Base mounting
Number of Poles:
3P
Pollution Degree:
3
Power Loss:
at Rated Operating Conditions per Pole 0.3 W
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current DC-21B (Ie):
(1000 V) 25 A
Rated Operational Voltage:
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm):
(690 V AC) 0.71 kA
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 0.5 kA
Recommended Screw Driver:
Main Circuit Torx
Special Functions:
Solar
Standards:
IEC 60947-1, -3
Terminal Type:
Screw Terminals
Tightening Torque:
Main Circuit 1.2 … 1.4 N·m
Wire Stripping Length:
Main Circuit 19 … 11 mm

Technical UL/CSA

Wire Stripping Length:
Main Circuit 19 … 11 mm
Recommended Screw Driver:
Main Circuit Torx
Tightening Torque:
Main Circuit 1.2 … 1.4 N·m

Certificates and Declarations

External Classifications and Standards

Object Classification Code:
Q
ETIM 9:
EC000216 - Switch disconnector (low voltage)
ETIM 10:
EC004963 - Switch disconnector (DC)
eClass:
V11.1 : 27371403
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland):
3601734
E-Number (Norway):
1414586
E-Number (Sweden):
3134009
Price on request
Ask for quote


Notify Me When Available

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP:
666bb568-fdd2-4673-afae-aa0be848f243 Finland
Simplified SCIP:
dc104efc-33a4-417f-9b92-9ebdd2fdd09e Germany
d8cc68b8-7542-4b03-a4ab-0c65268ca48a Spain
7eaeb0c1-29f7-436a-b336-45e098793c6b France
fb9b7d07-d4c5-474f-8867-be66624900b6 Croatia
2a181153-e543-4d20-803f-1ff88597dd9c Germany
b1756006-d49f-4068-87c6-21cc77d54b1c Czech Republic
5a935a34-e0d4-42cd-bf27-00061d886f4e Denmark
b6560db9-e971-4375-8bd9-319ec90a63a3 Italy
be2549ea-d24f-44ef-92df-834610ea7081 France
a968b35b-99d6-425a-ab4a-00a1a9249383 Germany
d3a9b629-c5df-4a36-b74a-5b72ca8b2c1b Sweden
e45cd5e9-cfe2-4068-9704-493f654d24e4 Germany
66e6feb4-a35d-4518-b27f-31c002c71003 Estonia
2ca0d96d-625e-4e7b-b4d8-a8f6a6b07f86 Hungary
c2c0a2cb-1121-4aba-b5b5-3c2df48e54ec Netherlands
6594cd5e-2cfa-4543-92b3-c7856a787a6f Poland
d4cf558e-60fc-45d8-8cf9-0f0ab734993d Poland
6ccf1cec-f476-472d-b67b-640026604c4f Norway
d8d542dc-8128-465d-ba6e-159b8efecef7 Hungary
73596b00-5a8a-4526-ae42-4c540b0f90d0 Belgium
ac3c337c-c769-4d8c-8507-f82e97bb64c2 Poland
6938f48b-4317-4c8e-ae95-790f1bd9756c Germany
04dcb333-3c14-4774-8bc8-03b647d558a6 Belgium
1918f3ec-9c9b-4c19-85f5-8c803898a0cb Portugal
5843c12f-d26c-4462-8bf4-b596b85502ce Greece
ef206ca9-5b64-4228-82fd-85522ceb9d5b Bulgaria
06504244-5de4-4e9c-b167-9b97892c15c7 Sweden
dc104efc-33a4-417f-9b92-9ebdd2fdd09e Germany
d8cc68b8-7542-4b03-a4ab-0c65268ca48a Spain
7eaeb0c1-29f7-436a-b336-45e098793c6b France
fb9b7d07-d4c5-474f-8867-be66624900b6 Croatia
2a181153-e543-4d20-803f-1ff88597dd9c Germany
b1756006-d49f-4068-87c6-21cc77d54b1c Czech Republic
5a935a34-e0d4-42cd-bf27-00061d886f4e Denmark
b6560db9-e971-4375-8bd9-319ec90a63a3 Italy
be2549ea-d24f-44ef-92df-834610ea7081 France
a968b35b-99d6-425a-ab4a-00a1a9249383 Germany

Popular Downloads

Environmental

Degree of Protection:
acc. to IEC 60529 IP65
Pollution Degree:
3

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85365080
Country or Territory of Origin:
Finland

Dimensions

Product Net Width:
95 mm
Product Net Height:
150 mm
Product Net Depth / Length:
95 mm
Product Net Weight:
0.64 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
142 mm
Package Level 1 Depth / Length:
167 mm
Package Level 1 Height:
130 mm
Package Level 1 Gross Weight:
0.7 kg
Package Level 1 EAN:
6417019554112

Technical

Cable Entry Position:
Up/Down
Cable Outlets Per Side:
2xM20 / 2xM20
Connecting Capacity Main Circuit:
Screw Clamp 2.5…16 mm²
Conventional Thermal Current (Ithe):
Fully Enclosed 25 A
Degree of Protection:
acc. to IEC 60529 IP65
Enclosure Material:
Plastic
Handle Color:
Black
Handle Type:
Selector handle
Mounted Auxiliary Contacts:
0 NO, 0 NC
Mounting Type:
Base mounting
Number of Poles:
3P
Pollution Degree:
3
Power Loss:
at Rated Operating Conditions per Pole 0.3 W
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current DC-21B (Ie):
(1000 V) 25 A
Rated Operational Voltage:
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm):
(690 V AC) 0.71 kA
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 0.5 kA
Recommended Screw Driver:
Main Circuit Torx
Special Functions:
Solar
Standards:
IEC 60947-1, -3
Terminal Type:
Screw Terminals
Tightening Torque:
Main Circuit 1.2 … 1.4 N·m
Wire Stripping Length:
Main Circuit 19 … 11 mm

Technical UL/CSA

Wire Stripping Length:
Main Circuit 19 … 11 mm
Recommended Screw Driver:
Main Circuit Torx
Tightening Torque:
Main Circuit 1.2 … 1.4 N·m

Certificates and Declarations

External Classifications and Standards

Object Classification Code:
Q
ETIM 9:
EC000216 - Switch disconnector (low voltage)
ETIM 10:
EC004963 - Switch disconnector (DC)
eClass:
V11.1 : 27371403
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland):
3601734
E-Number (Norway):
1414586
E-Number (Sweden):
3134009
Object Classification Code:
Q
ETIM 9:
EC000216 - Switch disconnector (low voltage)
ETIM 10:
EC004963 - Switch disconnector (DC)
eClass:
V11.1 : 27371403
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland):
3601734
E-Number (Norway):
1414586
E-Number (Sweden):
3134009
