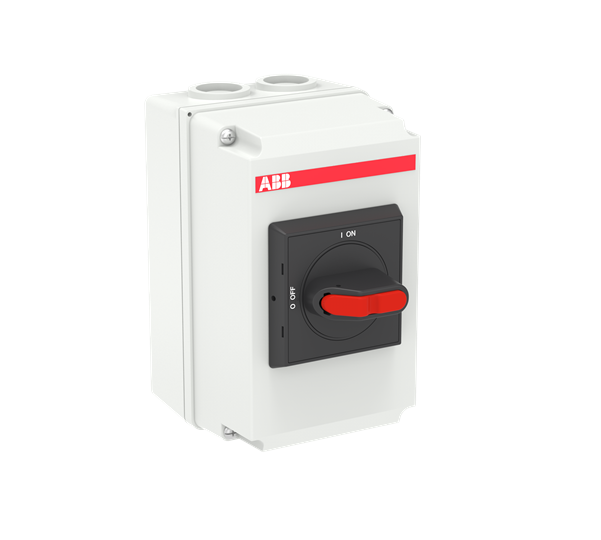

1SCA125153R1001 ABB - OTDCP16S12M

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP:
6dbcc6a7-7c43-4803-aac9-1b9d56d716da Finland
Simplified SCIP:
a819c8c2-f3b7-45da-a468-1f984f62478b Germany
106d97ef-40f5-48f9-b759-4456553a19b4 Bulgaria
11e8bc01-ab3d-414d-8923-1dbba1afba7e Sweden
a2440890-1a1d-4207-8678-7363217d0716 Germany
ecf414ab-07de-4f7a-82f7-2840eefe6834 Sweden
f562b232-6006-4766-bb6a-e6b68fe97942 France
4f17cd94-fe32-490e-a112-b79f5c9d915e Greece
589ccdbd-9aec-4c1c-bbea-064f6f783c5c Poland
537681ce-30db-4e80-9cac-fcfa7d66baf9 Belgium
a5db6a35-6e9b-4877-864c-2e101e6ab476 Italy
f9f82fe3-0290-4a46-95a7-e38d53238e74 Germany
cbd12426-ef4c-4520-82a7-8e6975538711 France
629e421e-5fe6-4da4-9729-793beef606d8 Spain
c51abc95-da01-4018-b9d2-7bdb516ae602 Estonia
03afcbbb-4895-4a20-8d82-382adbce7985 Portugal
035daf1f-5f35-415b-8124-5a6254c4dccf Poland
d76fab0f-ea17-4ca5-a373-badbefe2e31b Norway
a44ecae6-5ef4-4fe1-b141-9dab6f4fbc82 Belgium
cbb00cd0-27b5-450e-bf15-2c62aafb4768 Hungary
53549092-4cf4-4af1-bd5d-c4f0735e620b Hungary
867226ac-2158-4725-a552-2af37cb3eef5 Poland
190bf5b6-38a6-49c8-8a7d-55b2bbeea12e Germany
90984db9-4148-4464-9e83-a34c15368c2d Denmark
205f99bf-3bdb-4586-bbe9-de4b81b2eb40 Germany
918de6a4-dc1d-4a24-b933-3e56480d75ee Czech Republic
0019e5ce-7e40-4447-b06c-2b1d9419e739 Croatia
743efcfd-e1fe-4d5b-9f4f-8999e3de28bf Netherlands
a819c8c2-f3b7-45da-a468-1f984f62478b Germany
106d97ef-40f5-48f9-b759-4456553a19b4 Bulgaria
11e8bc01-ab3d-414d-8923-1dbba1afba7e Sweden
a2440890-1a1d-4207-8678-7363217d0716 Germany
ecf414ab-07de-4f7a-82f7-2840eefe6834 Sweden
f562b232-6006-4766-bb6a-e6b68fe97942 France
4f17cd94-fe32-490e-a112-b79f5c9d915e Greece
589ccdbd-9aec-4c1c-bbea-064f6f783c5c Poland
537681ce-30db-4e80-9cac-fcfa7d66baf9 Belgium
a5db6a35-6e9b-4877-864c-2e101e6ab476 Italy

Popular Downloads

Environmental

Degree of Protection:
acc. to IEC 60529 IP65
Pollution Degree:
3

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85365080
Country or Territory of Origin:
Finland

Dimensions

Product Net Width:
95 mm
Product Net Height:
150 mm
Product Net Depth / Length:
95 mm
Product Net Weight:
0.59 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
142 mm
Package Level 1 Depth / Length:
167 mm
Package Level 1 Height:
108 mm
Package Level 1 Gross Weight:
0.7 kg
Package Level 1 EAN:
6417019554105

Technical

Cable Entry Position:
Up/Down
Cable Outlets Per Side:
2xM20 / 2xM20
Connecting Capacity Main Circuit:
Screw Clamp 2.5…16 mm²
Conventional Thermal Current (Ithe):
Fully Enclosed 16 A
Degree of Protection:
acc. to IEC 60529 IP65
Enclosure Material:
Plastic
Handle Color:
Black
Handle Type:
Selector handle
Mounted Auxiliary Contacts:
0 NO, 0 NC
Mounting Type:
Base mounting
Number of Poles:
3P
Pollution Degree:
3
Power Loss:
at Rated Operating Conditions per Pole 0.15 W
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current DC-21B (Ie):
(1000 V) 16 A
Rated Operational Voltage:
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm):
(690 V AC) 0.71 kA
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 0.5 kA
Recommended Screw Driver:
Main Circuit Torx
Special Functions:
Solar
Standards:
IEC 60947-1, -3
Terminal Type:
Screw Terminals
Tightening Torque:
Main Circuit 1.2 … 1.4 N·m
Wire Stripping Length:
Main Circuit 10 … 11 mm

Technical UL/CSA

Wire Stripping Length:
Main Circuit 10 … 11 mm
Recommended Screw Driver:
Main Circuit Torx
Tightening Torque:
Main Circuit 1.2 … 1.4 N·m

Certificates and Declarations

External Classifications and Standards

Object Classification Code:
Q
ETIM 9:
EC000216 - Switch disconnector (low voltage)
ETIM 10:
EC004963 - Switch disconnector (DC)
eClass:
V11.1 : 27371403
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland):
3601733
E-Number (Norway):
1414585
E-Number (Sweden):
3134008
Price on request
Ask for quote


Notify Me When Available

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP:
6dbcc6a7-7c43-4803-aac9-1b9d56d716da Finland
Simplified SCIP:
a819c8c2-f3b7-45da-a468-1f984f62478b Germany
106d97ef-40f5-48f9-b759-4456553a19b4 Bulgaria
11e8bc01-ab3d-414d-8923-1dbba1afba7e Sweden
a2440890-1a1d-4207-8678-7363217d0716 Germany
ecf414ab-07de-4f7a-82f7-2840eefe6834 Sweden
f562b232-6006-4766-bb6a-e6b68fe97942 France
4f17cd94-fe32-490e-a112-b79f5c9d915e Greece
589ccdbd-9aec-4c1c-bbea-064f6f783c5c Poland
537681ce-30db-4e80-9cac-fcfa7d66baf9 Belgium
a5db6a35-6e9b-4877-864c-2e101e6ab476 Italy
f9f82fe3-0290-4a46-95a7-e38d53238e74 Germany
cbd12426-ef4c-4520-82a7-8e6975538711 France
629e421e-5fe6-4da4-9729-793beef606d8 Spain
c51abc95-da01-4018-b9d2-7bdb516ae602 Estonia
03afcbbb-4895-4a20-8d82-382adbce7985 Portugal
035daf1f-5f35-415b-8124-5a6254c4dccf Poland
d76fab0f-ea17-4ca5-a373-badbefe2e31b Norway
a44ecae6-5ef4-4fe1-b141-9dab6f4fbc82 Belgium
cbb00cd0-27b5-450e-bf15-2c62aafb4768 Hungary
53549092-4cf4-4af1-bd5d-c4f0735e620b Hungary
867226ac-2158-4725-a552-2af37cb3eef5 Poland
190bf5b6-38a6-49c8-8a7d-55b2bbeea12e Germany
90984db9-4148-4464-9e83-a34c15368c2d Denmark
205f99bf-3bdb-4586-bbe9-de4b81b2eb40 Germany
918de6a4-dc1d-4a24-b933-3e56480d75ee Czech Republic
0019e5ce-7e40-4447-b06c-2b1d9419e739 Croatia
743efcfd-e1fe-4d5b-9f4f-8999e3de28bf Netherlands
a819c8c2-f3b7-45da-a468-1f984f62478b Germany
106d97ef-40f5-48f9-b759-4456553a19b4 Bulgaria
11e8bc01-ab3d-414d-8923-1dbba1afba7e Sweden
a2440890-1a1d-4207-8678-7363217d0716 Germany
ecf414ab-07de-4f7a-82f7-2840eefe6834 Sweden
f562b232-6006-4766-bb6a-e6b68fe97942 France
4f17cd94-fe32-490e-a112-b79f5c9d915e Greece
589ccdbd-9aec-4c1c-bbea-064f6f783c5c Poland
537681ce-30db-4e80-9cac-fcfa7d66baf9 Belgium
a5db6a35-6e9b-4877-864c-2e101e6ab476 Italy

Popular Downloads

Environmental

Degree of Protection:
acc. to IEC 60529 IP65
Pollution Degree:
3

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85365080
Country or Territory of Origin:
Finland

Dimensions

Product Net Width:
95 mm
Product Net Height:
150 mm
Product Net Depth / Length:
95 mm
Product Net Weight:
0.59 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
142 mm
Package Level 1 Depth / Length:
167 mm
Package Level 1 Height:
108 mm
Package Level 1 Gross Weight:
0.7 kg
Package Level 1 EAN:
6417019554105

Technical

Cable Entry Position:
Up/Down
Cable Outlets Per Side:
2xM20 / 2xM20
Connecting Capacity Main Circuit:
Screw Clamp 2.5…16 mm²
Conventional Thermal Current (Ithe):
Fully Enclosed 16 A
Degree of Protection:
acc. to IEC 60529 IP65
Enclosure Material:
Plastic
Handle Color:
Black
Handle Type:
Selector handle
Mounted Auxiliary Contacts:
0 NO, 0 NC
Mounting Type:
Base mounting
Number of Poles:
3P
Pollution Degree:
3
Power Loss:
at Rated Operating Conditions per Pole 0.15 W
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current DC-21B (Ie):
(1000 V) 16 A
Rated Operational Voltage:
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm):
(690 V AC) 0.71 kA
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 0.5 kA
Recommended Screw Driver:
Main Circuit Torx
Special Functions:
Solar
Standards:
IEC 60947-1, -3
Terminal Type:
Screw Terminals
Tightening Torque:
Main Circuit 1.2 … 1.4 N·m
Wire Stripping Length:
Main Circuit 10 … 11 mm

Technical UL/CSA

Wire Stripping Length:
Main Circuit 10 … 11 mm
Recommended Screw Driver:
Main Circuit Torx
Tightening Torque:
Main Circuit 1.2 … 1.4 N·m

Certificates and Declarations

External Classifications and Standards

Object Classification Code:
Q
ETIM 9:
EC000216 - Switch disconnector (low voltage)
ETIM 10:
EC004963 - Switch disconnector (DC)
eClass:
V11.1 : 27371403
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland):
3601733
E-Number (Norway):
1414585
E-Number (Sweden):
3134008
Object Classification Code:
Q
ETIM 9:
EC000216 - Switch disconnector (low voltage)
ETIM 10:
EC004963 - Switch disconnector (DC)
eClass:
V11.1 : 27371403
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland):
3601733
E-Number (Norway):
1414585
E-Number (Sweden):
3134008
