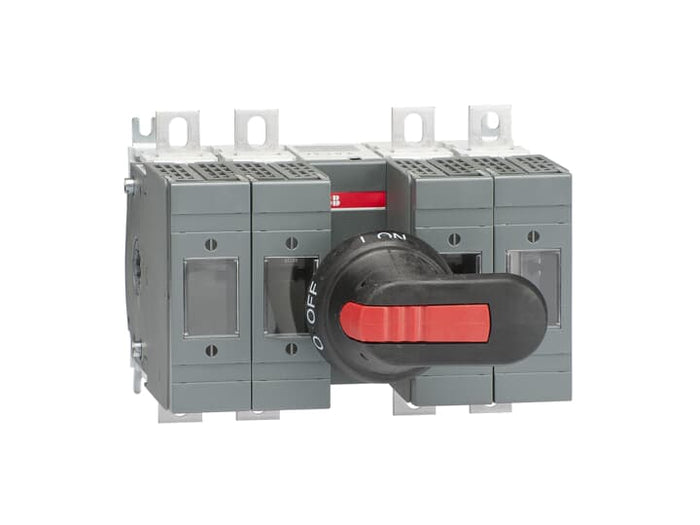

1SCA115884R1001 ABB - OS160GD22N2P

1SCA115884R1001 ABB - OS160GD22N2P

ABB EcoSolutions

ABB Site Meeting Group Waste To Landfill Target:
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions:
Environmental Product Declaration - EPD:

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP:
8fe7d606-82d1-4397-975b-f77533cddc5c Finland
Simplified SCIP:
a98d88e5-937a-45ff-b8ad-bc23687b7853 Germany
0e0f9359-d4eb-42ed-91f9-cd1c823f956b Estonia
97d5c64f-cb96-47a3-89f2-0113c292aee8 Bulgaria
cc45e4ce-4d4a-427c-8cf2-c2e50d40c258 Greece
6087e7a6-f8ac-4dac-8cb5-9e16b8ac54fc Belgium
12bc95e4-04a8-4253-a532-d059510fb7db Italy
d6ad4651-5ff7-4837-8ce6-1c4182352725 Poland
c5ffbf52-71ba-476e-a70e-560fe853bc4a Belgium
9e334221-1a96-428e-b234-da16e2634d6a Spain
2626fb29-b8b7-4f87-aa74-33450ef1262f Sweden
b8522057-bcfe-432c-a78e-3917572e532d Poland
c49aba91-d763-4532-b70b-477151cd42fa Germany
fa3f0cbd-89ee-4ef8-9ec3-47b4a369ce39 Portugal
c047f66c-9f11-4671-9c02-2b1e4a2756d8 Hungary
5462e329-39bc-489c-96ac-0e9115f6b8c1 Croatia
eeb27610-fa82-4ce3-8598-3d9ab83e4e53 Denmark
dc52cd27-9988-4026-acb2-bee954a934e3 Germany
22a4930b-9e56-4d3b-871e-15a058a14f08 Germany
b40de4f0-6eee-4379-985a-d17f51772b23 Czech Republic
f2557c90-d9cf-4b52-a97c-6f641d4f2861 France
e1a7e207-61f8-4ccb-adf1-338eeab9fc53 Norway
6e610a22-1342-426d-b8a7-c288104f63ea Poland
85019fb3-367b-4d2d-be75-bbdab0f3c619 Netherlands
f0dad139-5e65-4c47-a399-b88ec7fb5254 Hungary
d3c868bf-5fe9-4169-98e8-05ebd0657f2b Germany
8c7cdf83-7838-4f3a-9981-6366de0b1aaf Sweden
f38c6f6d-d521-4d1e-a1e0-99267743ffdd France
a98d88e5-937a-45ff-b8ad-bc23687b7853 Germany
0e0f9359-d4eb-42ed-91f9-cd1c823f956b Estonia
97d5c64f-cb96-47a3-89f2-0113c292aee8 Bulgaria
cc45e4ce-4d4a-427c-8cf2-c2e50d40c258 Greece
6087e7a6-f8ac-4dac-8cb5-9e16b8ac54fc Belgium
12bc95e4-04a8-4253-a532-d059510fb7db Italy
d6ad4651-5ff7-4837-8ce6-1c4182352725 Poland
c5ffbf52-71ba-476e-a70e-560fe853bc4a Belgium
9e334221-1a96-428e-b234-da16e2634d6a Spain
2626fb29-b8b7-4f87-aa74-33450ef1262f Sweden

Popular Downloads

Data Sheet, Technical Information:
Instructions and Manuals:
Mechanical Drawings:
Environmental Product Declaration - EPD:

Environmental

Pollution Degree:
3

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85365080
Country or Territory of Origin:
Finland

Dimensions

Product Net Width:
182 mm
Product Net Height:
140 mm
Product Net Depth / Length:
130 mm
Product Net Weight:
2.6 kg
5.73 lb
2.6 kg
5.73 lb

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
170 mm
6.7 in
170 mm
6.7 in
Package Level 1 Depth / Length:
250 mm
9.8 in
250 mm
9.8 in
Package Level 1 Height:
155 mm
6.1 in
155 mm
6.1 in
Package Level 1 Gross Weight:
2.76 kg
6.1 lb
2.76 kg
6.1 lb
Package Level 1 EAN:
6417019481524

Technical

Conventional Free-air Thermal Current (Ith):
Θ = 40 °C 160 A
Conventional Thermal Current (Ithe):
Fully Enclosed 160 A
Fourth Pole Position:
Right Side
Fourth Pole Type:
Switched - With Solid Link
Fuse Size:
NH000
NH00
NH000
NH00
Fuse System:
DIN
Handle Type:
Pistol handle and shaft included
Mounting Type:
Base mounting
Number of Poles:
4P
Operating Mode:
Front Operated
Pollution Degree:
3
Position of Line Terminals:
Top In - Bottom Out, Bottom In - Top Out
Power Loss:
at Rated Current 8 W
Rated Conditional Short-Circuit Current (Inc):
(690 V) 80 kA
Rated Current (In):
Main Circuit 160 A
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Current AC-21A (Ie):
(500 V) 160 A
(690 V) 160 A
(500 V) 160 A
(690 V) 160 A
Rated Operational Current AC-22A (Ie):
(500 V) 160 A
(690 V) 160 A
(500 V) 160 A
(690 V) 160 A
Rated Operational Current AC-23A (Ie):
(500 V) 160 A
(690 V) 160 A
(500 V) 160 A
(690 V) 160 A
Rated Operational Power AC-23A (Pe):
(220 ... 240 V) 45 kW
(400 V) 75 kW
(415 V) 75 kW
(500 V) 90 kW
(690 V) 132 kW
(220 ... 240 V) 45 kW
(400 V) 75 kW
(415 V) 75 kW
(500 V) 90 kW
(690 V) 132 kW
Rated Operational Voltage:
Main Circuit 690 V AC
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 5 kiloampere rms
Standards:
IEC 60947-3
Switches Operating Mechanism:
22 (Between the Poles)
Terminal Type:
Lug terminals
Terminal Width:
20 mm
Tightening Torque:
15 … 22 N·m

Technical UL/CSA

Tightening Torque:
15 … 22 N·m

Certificates and Declarations

External Classifications and Standards

Object Classification Code:
Q
ETIM 9:
EC001040 - Fuse switch disconnector
ETIM 10:
EC001040 - Fuse switch disconnector
UNSPSC:
39122233
IDEA Granular Category Code (IGCC):
5291 >> Fuse switch disconnector
eClass:
V11.1 : 27371401
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland):
3660349
E-Number (Sweden):
3172117
Price on request
Ask for quote
