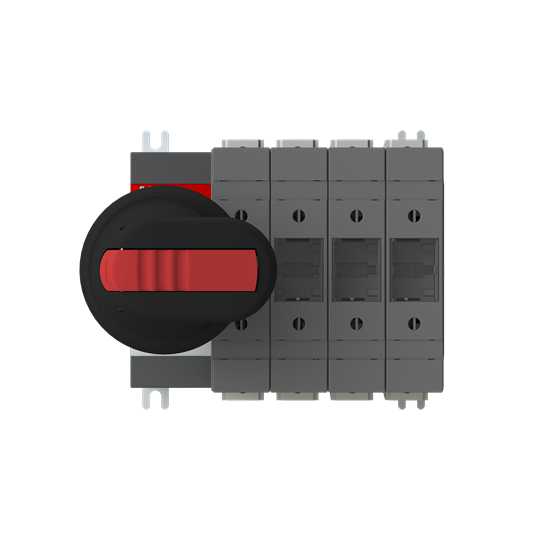

1SCA115238R1001 ABB - OS63GB04N1P

1SCA115238R1001 ABB - OS63GB04N1P

ABB EcoSolutions

ABB Site Meeting Group Waste To Landfill Target:
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions:
Environmental Product Declaration - EPD:

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP:
a09884fa-0516-47f8-b9cf-7d95eb4105b7 Finland
Simplified SCIP:
1d73ad85-219f-478f-9b8e-dca165a521ec Germany
bf22c7ec-b2c5-4382-afb0-80fffce6d016 Portugal
45bb3b3f-76d5-4190-b210-5da882600e4e Belgium
369aa74e-8eec-4fae-b99b-6ec8bdb35d80 Norway
ded677ac-e4b6-4489-b756-a7bddc709323 Bulgaria
218f68f7-02fc-431b-a85a-697a7230f138 Sweden
721f128a-a8f8-47a3-a59e-42a9f16eefb1 Poland
a789c730-02bf-40cf-af04-66bc5cf65361 Croatia
fb3df125-e684-4269-8e3d-b000235fd9f2 Poland
c0135fc5-7866-4824-8690-48271eba6b11 Hungary
a0d84961-5b0b-4bbb-92e5-586bd03f4fe8 Spain
85a1d6ca-62f6-49a2-9668-a58550c688c9 Belgium
05a665ca-c116-4854-8b84-1808d07bf50e Greece
0e185855-0c9a-434f-8cf1-9d9e681ea649 Poland
4b11bf18-1541-463d-a328-7a02cab3f064 Germany
dde18e36-0c41-4c2e-9c3f-cd92079a4c59 Estonia
e4862e11-4486-4ace-8a38-89823c212367 France
b8157f92-1ae2-4d15-8b4d-bcd0ba162575 Netherlands
f062cbc5-7253-4f7c-9969-8a0b1117a0c7 Denmark
ab97c63e-9aee-4a76-8fa9-b5f2121de5ac Czech Republic
f29db04d-8da5-45fa-9342-f3697907d98b France
d9fef52a-86d1-42bc-9c56-947b256dd799 Italy
4320a527-491a-4c36-a446-e54dd51b91c3 Hungary
123857f2-09ca-449c-b1ca-8191120d897d Germany
05c6f669-0e93-4489-a8c2-6da427418b06 Germany
bad63bf2-5bd1-4743-9a7d-5251ab3eae36 Germany
4b7e55eb-51bd-4c8f-9791-e06776c3eb9c Sweden
1d73ad85-219f-478f-9b8e-dca165a521ec Germany
bf22c7ec-b2c5-4382-afb0-80fffce6d016 Portugal
45bb3b3f-76d5-4190-b210-5da882600e4e Belgium
369aa74e-8eec-4fae-b99b-6ec8bdb35d80 Norway
ded677ac-e4b6-4489-b756-a7bddc709323 Bulgaria
218f68f7-02fc-431b-a85a-697a7230f138 Sweden
721f128a-a8f8-47a3-a59e-42a9f16eefb1 Poland
a789c730-02bf-40cf-af04-66bc5cf65361 Croatia
fb3df125-e684-4269-8e3d-b000235fd9f2 Poland
c0135fc5-7866-4824-8690-48271eba6b11 Hungary

Popular Downloads

Data Sheet, Technical Information:
Instructions and Manuals:
Mechanical Drawings:
Environmental Product Declaration - EPD:

Environmental

Pollution Degree:
3

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85365080
Country or Territory of Origin:
Finland

Dimensions

Product Net Width:
136 mm
Product Net Height:
125 mm
Product Net Depth / Length:
109 mm
Product Net Weight:
1.37 kg
3.02 lb
1.37 kg
3.02 lb

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
170 mm
6.7 in
170 mm
6.7 in
Package Level 1 Depth / Length:
190 mm
7.5 in
190 mm
7.5 in
Package Level 1 Height:
145 mm
5.7 in
145 mm
5.7 in
Package Level 1 Gross Weight:
1.5 kg
3.3 lb
1.5 kg
3.3 lb
Package Level 1 EAN:
6417019476636

Technical

Cable Cross-Section:
2.5 ... 25 mm²
Connecting Capacity:
Stranded 2.5 … 25 mm²
Flexible 2.5 … 25 mm²
Stranded 2.5 … 25 mm²
Flexible 2.5 … 25 mm²
Conventional Free-air Thermal Current (Ith):
Θ = 40 °C 63 A
Conventional Thermal Current (Ithe):
Fully Enclosed 63 A
Fourth Pole Position:
Left Side
Fourth Pole Type:
Switched - With Solid Link
Fuse Size:
A2-A3
Fuse System:
British Standard
Handle Type:
Pistol handle and shaft included
Mounting Type:
Base mounting
Number of Poles:
4P
Operating Mode:
Front Operated
Pollution Degree:
3
Position of Line Terminals:
Top In - Bottom Out, Bottom In - Top Out
Power Loss:
at Rated Current 2 W
Rated Conditional Short-Circuit Current (Inc):
(690 V) 80 kA
Rated Current (In):
Main Circuit 63 A
Rated Impulse Withstand Voltage (Uimp):
12 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Current AC-21A (Ie):
(500 V) 63 A
(690 V) 63 A
(500 V) 63 A
(690 V) 63 A
Rated Operational Current AC-22A (Ie):
(500 V) 63 A
(690 V) 63 A
(500 V) 63 A
(690 V) 63 A
Rated Operational Current AC-23A (Ie):
(500 V) 63 A
(690 V) 63 A
(500 V) 63 A
(690 V) 63 A
Rated Operational Power AC-23A (Pe):
(220 ... 240 V) 18.5 kW
(400 V) 30 kW
(415 V) 30 kW
(500 V) 37 kW
(690 V) 55 kW
(220 ... 240 V) 18.5 kW
(400 V) 30 kW
(415 V) 30 kW
(500 V) 37 kW
(690 V) 55 kW
Rated Operational Voltage:
Main Circuit 690 V AC
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 2.5 kiloampere rms
Recommended Screw Driver:
Main Circuit Hexagon 4
Standards:
IEC 60947-3
Switches Operating Mechanism:
04 (Left Side)
Terminal Type:
Screw Terminals
Tightening Torque:
3 N·m
4 N·m
3 N·m
4 N·m
Wire Stripping Length:
Main Circuit 12 mm
Main Circuit 0.47 in
Main Circuit 12 mm
Main Circuit 0.47 in

Technical UL/CSA

Wire Stripping Length:
Main Circuit 12 mm
Main Circuit 0.47 in
Main Circuit 12 mm
Main Circuit 0.47 in
Recommended Screw Driver:
Main Circuit Hexagon 4
Tightening Torque:
3 N·m
4 N·m
3 N·m
4 N·m

Certificates and Declarations

External Classifications and Standards

Object Classification Code:
Q
ETIM 9:
EC001040 - Fuse switch disconnector
ETIM 10:
EC001040 - Fuse switch disconnector
UNSPSC:
39122233
IDEA Granular Category Code (IGCC):
5291 >> Fuse switch disconnector
eClass:
V11.1 : 27371401
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
