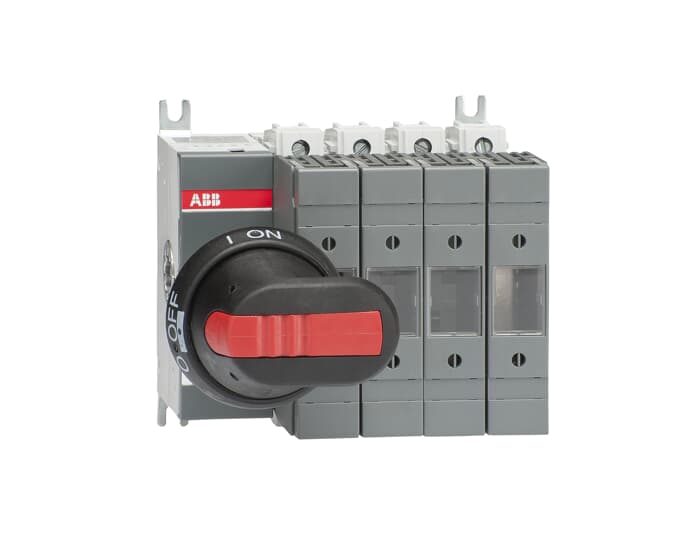

1SCA115209R1001 ABB - OS63GD04N2P

1SCA115209R1001 ABB - OS63GD04N2P

ABB EcoSolutions

ABB Site Meeting Group Waste To Landfill Target:
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions:
Environmental Product Declaration - EPD:

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP:
e2d120aa-c053-45cc-8242-2b285cb0618e Finland
Simplified SCIP:
89e76d5a-b918-4c51-ab15-49830c5a785b Germany
0555d710-77a9-4f96-80c1-aaea04f966b3 Poland
ae87838c-68ef-45ee-ab52-58baf14b0e92 Bulgaria
1c013475-09d5-4f2c-9c85-149e0b991c48 Greece
2ba4d23d-5bec-4bb8-b19b-45840d3971a9 Portugal
061b0db6-0b84-43f6-8214-35a05d8b97c6 Germany
d0292b17-a3da-4594-bf84-2cb63a9b717e Estonia
91a8abc1-f72b-4215-b835-786c27dc0d5a Belgium
3158786f-2f96-4f5e-8d56-012df8cc8ace Italy
c7ced8b9-e8f1-43a3-b49a-82101dd788cf Poland
87bc6805-5b40-4bbc-9446-3ec8aa34b240 Norway
90cd635e-6221-4fcb-9bef-b72a29b6c54e Spain
fa11673b-11e0-4798-af32-451637ae0c84 Sweden
2b57aa5d-9b0e-40f0-a498-4a911c62fc54 France
c1564232-c7dc-4715-ba67-23af2c9eba55 Sweden
1965ece7-1278-4073-bd2b-11b9744220b3 France
5ad6499f-2d2b-472e-84ae-0cb624ac7d7c Hungary
662fc102-bb1e-4588-b393-594b7805cac3 Croatia
7f3d03c3-9083-47d1-887b-1c1974ebeaf8 Czech Republic
22adf7bb-15c9-4827-b374-223e4db3bd34 Germany
3b1c99b4-8b36-478f-abf1-83626522d97e Denmark
a309b072-774f-4b46-859d-ea1848b02cd1 Germany
f460aed7-61b2-49f4-bb89-bec43c8af48d Hungary
fe7caaae-af76-4789-9af3-bf20138c555c Poland
7577507c-46d5-418c-bb61-8c34089b8058 Netherlands
5b88dee0-ce90-49af-a7f1-6d5810ca4e86 Belgium
05849c5b-a1f9-44cd-b194-a5c6046996ab Germany
89e76d5a-b918-4c51-ab15-49830c5a785b Germany
0555d710-77a9-4f96-80c1-aaea04f966b3 Poland
ae87838c-68ef-45ee-ab52-58baf14b0e92 Bulgaria
1c013475-09d5-4f2c-9c85-149e0b991c48 Greece
2ba4d23d-5bec-4bb8-b19b-45840d3971a9 Portugal
061b0db6-0b84-43f6-8214-35a05d8b97c6 Germany
d0292b17-a3da-4594-bf84-2cb63a9b717e Estonia
91a8abc1-f72b-4215-b835-786c27dc0d5a Belgium
3158786f-2f96-4f5e-8d56-012df8cc8ace Italy
c7ced8b9-e8f1-43a3-b49a-82101dd788cf Poland

Popular Downloads

Data Sheet, Technical Information:
Instructions and Manuals:
Mechanical Drawings:
Environmental Product Declaration - EPD:

Environmental

Pollution Degree:
3

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85365080
Country or Territory of Origin:
Finland

Dimensions

Product Net Width:
136 mm
Product Net Height:
125 mm
Product Net Depth / Length:
121 mm
Product Net Weight:
1.37 kg
3.02 lb
1.37 kg
3.02 lb

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
170 mm
6.7 in
170 mm
6.7 in
Package Level 1 Depth / Length:
190 mm
7.5 in
190 mm
7.5 in
Package Level 1 Height:
145 mm
5.7 in
145 mm
5.7 in
Package Level 1 Gross Weight:
1.5 kg
3.3 lb
1.5 kg
3.3 lb
Package Level 1 EAN:
6417019476490

Technical

Cable Cross-Section:
2.5 ... 25 mm²
Connecting Capacity:
Stranded 2.5 … 25 mm²
Flexible 2.5 … 25 mm²
Stranded 2.5 … 25 mm²
Flexible 2.5 … 25 mm²
Conventional Free-air Thermal Current (Ith):
Θ = 40 °C 63 A
Conventional Thermal Current (Ithe):
Fully Enclosed 63 A
Fourth Pole Position:
Right Side
Fourth Pole Type:
Switched - With Solid Link
Fuse Size:
NH000
Fuse System:
DIN
Handle Type:
Pistol handle and shaft included
Mounting Type:
Base mounting
Number of Poles:
4P
Operating Mode:
Front Operated
Pollution Degree:
3
Position of Line Terminals:
Top In - Bottom Out, Bottom In - Top Out
Power Loss:
at Rated Current 2 W
Rated Conditional Short-Circuit Current (Inc):
(690 V) 80 kA
Rated Current (In):
Main Circuit 63 A
Rated Impulse Withstand Voltage (Uimp):
12 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Current AC-21A (Ie):
(500 V) 63 A
(690 V) 63 A
(500 V) 63 A
(690 V) 63 A
Rated Operational Current AC-22A (Ie):
(500 V) 63 A
(690 V) 63 A
(500 V) 63 A
(690 V) 63 A
Rated Operational Current AC-23A (Ie):
(500 V) 63 A
(690 V) 63 A
(500 V) 63 A
(690 V) 63 A
Rated Operational Power AC-23A (Pe):
(220 ... 240 V) 18.5 kW
(400 V) 30 kW
(415 V) 30 kW
(500 V) 37 kW
(690 V) 55 kW
(220 ... 240 V) 18.5 kW
(400 V) 30 kW
(415 V) 30 kW
(500 V) 37 kW
(690 V) 55 kW
Rated Operational Voltage:
Main Circuit 690 V AC
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 2.5 kiloampere rms
Recommended Screw Driver:
Main Circuit Hexagon 4
Standards:
IEC 60947-3
Switches Operating Mechanism:
04 (Left Side)
Terminal Type:
Screw Terminals
Tightening Torque:
3 N·m
4 N·m
3 N·m
4 N·m
Wire Stripping Length:
Main Circuit 12 mm
Main Circuit 0.47 in
Main Circuit 12 mm
Main Circuit 0.47 in

Technical UL/CSA

Wire Stripping Length:
Main Circuit 12 mm
Main Circuit 0.47 in
Main Circuit 12 mm
Main Circuit 0.47 in
Recommended Screw Driver:
Main Circuit Hexagon 4
Tightening Torque:
3 N·m
4 N·m
3 N·m
4 N·m

Certificates and Declarations

External Classifications and Standards

Object Classification Code:
Q
ETIM 9:
EC001040 - Fuse switch disconnector
ETIM 10:
EC001040 - Fuse switch disconnector
UNSPSC:
39122233
IDEA Granular Category Code (IGCC):
5291 >> Fuse switch disconnector
eClass:
V11.1 : 27371401
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland):
3660238
Price on request
Ask for quote
