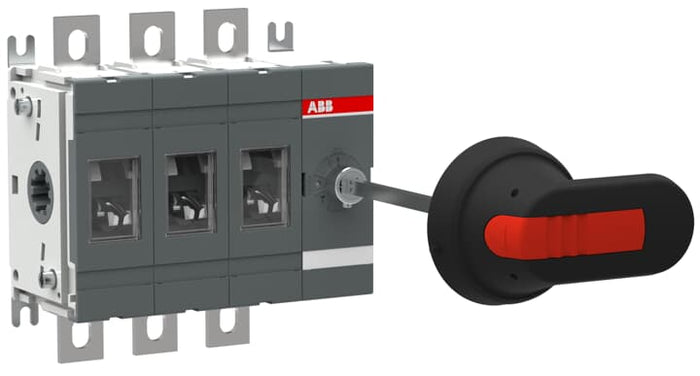

1SCA022720R8300 ABB - OT250E30P

1SCA022720R8300 ABB - OT250E30P

ABB EcoSolutions

End Of Life Disassembling Instructions:
Environmental Information:
Environmental Product Declaration - EPD:

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP:
b52265cb-20f0-4ef5-95ad-0dc8288d615a Finland
Simplified SCIP:
50959fe4-1c84-4d30-ae01-e3e25167a467 Germany
79f96e89-9c7b-475e-a1f9-db71acb7bd76 Belgium
a724dfb6-7e3f-481e-a4ce-0b664e49d5a2 Portugal
29a78f44-0d4e-4ce7-b7dc-d9325b50a5fb Sweden
1993f6e8-a7c3-48b0-82e8-6e8001455515 Germany
6eebdfc7-8784-4cef-87d5-dff15e47296f Poland
60162223-ab1e-4c4e-b471-3cb31cd41417 France
ba59c8dc-d677-4744-9b21-102a5a2af3ef Germany
cae383dc-3172-4dc2-953d-4a7dedd11850 Poland
f7710a80-1225-4e49-8ef8-c1eec0d18439 Estonia
be6702e1-6ac0-42d8-812e-3b9efeffacdf Greece
de35b0d5-a627-4525-95b1-d8158d64a5c2 Bulgaria
647709b8-17e0-4fd5-a493-73d01d83af7f Belgium
d48e6002-3aa7-4c95-a0a8-0d61505277f8 Spain
31830d90-1b83-4f47-8b10-deb8e5179ef3 Sweden
d2e71551-b4c1-4eb3-b024-7afa9a632a1b Poland
3ba4fb30-368a-45d1-9bf8-ec2f6c2a7e52 Hungary
4a599929-a2a1-4735-8275-bd259118f389 Croatia
8b3c87ed-5306-471f-ad20-74d61be561fe Denmark
3b0700f5-21cd-4df1-a600-6c8b3bda6f14 Czech Republic
699446c8-4084-4adf-94cf-7e1b525b3aaf Germany
891e2fe6-1afe-4d6f-8eea-60ee5e78e8bf France
878c8b76-4b18-41df-bd48-20e606cf9fc2 Norway
52b68f9f-1d4c-455d-af38-2f0391a15776 Italy
5f68f657-25fc-4fe6-aac7-9e7728e3aed5 Netherlands
58ad4334-ebcd-4df3-96d8-bc0ef39161ff Hungary
c855ab56-ad1a-4a65-a3c5-c284bb3f11ab Germany
50959fe4-1c84-4d30-ae01-e3e25167a467 Germany
79f96e89-9c7b-475e-a1f9-db71acb7bd76 Belgium
a724dfb6-7e3f-481e-a4ce-0b664e49d5a2 Portugal
29a78f44-0d4e-4ce7-b7dc-d9325b50a5fb Sweden
1993f6e8-a7c3-48b0-82e8-6e8001455515 Germany
6eebdfc7-8784-4cef-87d5-dff15e47296f Poland
60162223-ab1e-4c4e-b471-3cb31cd41417 France
ba59c8dc-d677-4744-9b21-102a5a2af3ef Germany
cae383dc-3172-4dc2-953d-4a7dedd11850 Poland
f7710a80-1225-4e49-8ef8-c1eec0d18439 Estonia

Popular Downloads

Instructions and Manuals:
Environmental Product Declaration - EPD:

Environmental

Degree of Protection:
Front IP00
Environmental Information:
Pollution Degree:
3

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85365080
Country or Territory of Origin:
Finland

Dimensions

Product Net Width:
145.5 mm
Product Net Height:
150 mm
Product Net Depth / Length:
82.5 mm
Product Net Weight:
1.4 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
170 mm
6.7 in
170 mm
6.7 in
Package Level 1 Depth / Length:
190 mm
7.5 in
190 mm
7.5 in
Package Level 1 Height:
145 mm
5.7 in
145 mm
5.7 in
Package Level 1 Gross Weight:
1.5 kg
3.3 lb
1.5 kg
3.3 lb
Package Level 1 EAN:
6417019231556

Technical

Conventional Free-air Thermal Current (Ith):
Θ = 40 °C 250 A
Conventional Thermal Current (Ithe):
Fully Enclosed 250 A
Degree of Protection:
Front IP00
Distance Between Phases:
Standard
Handle Color:
Black
Handle Type:
Handle and shaft included
Mechanical Durability:
20000
Mounting Type:
Base mounting
Number of Poles:
3P
Operating Mode:
Front operated
Pollution Degree:
3
Position of Line Terminals:
Top In - Bottom Out
Bottom In - Top Out
Top In - Bottom Out
Bottom In - Top Out
Power Loss:
at Rated Operating Conditions per Pole 6.5 W
Rated Impulse Withstand Voltage (Uimp):
12 kV
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie):
(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Current AC-22A (Ie):
(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Current AC-23A (Ie):
(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Power AC-23A (Pe):
(220 ... 240 V) 75 kW
(400 ... 415 V) 145 kW
(500 V) 170 kW
(690 V) 250 kW
(220 ... 240 V) 75 kW
(400 ... 415 V) 145 kW
(500 V) 170 kW
(690 V) 250 kW
Rated Operational Voltage:
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm):
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 8 kA
Special Functions:
No
Standards:
IEC 60947-3
Switches Operating Mechanism:
Mechanism at the End of the Switch
30 (Right Side)
Mechanism at the End of the Switch
30 (Right Side)
Terminal Type:
Lug terminals
Tightening Torque:
acc. IEC 60947-1 15 … 22 N·m

Technical UL/CSA

Tightening Torque:
acc. IEC 60947-1 15 … 22 N·m

Certificates and Declarations

External Classifications and Standards

Object Classification Code:
Q
ETIM 9:
EC000216 - Switch disconnector (low voltage)
ETIM 10:
EC000216 - Switch disconnector (AC)
UNSPSC:
39122221
eClass:
V11.1 : 27371403
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland):
3661358
E-Number (Norway):
4337858
Price on request
Ask for quote

Notify Me When Available

ABB EcoSolutions

End Of Life Disassembling Instructions:
Environmental Information:
Environmental Product Declaration - EPD:

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP:
b52265cb-20f0-4ef5-95ad-0dc8288d615a Finland
Simplified SCIP:
50959fe4-1c84-4d30-ae01-e3e25167a467 Germany
79f96e89-9c7b-475e-a1f9-db71acb7bd76 Belgium
a724dfb6-7e3f-481e-a4ce-0b664e49d5a2 Portugal
29a78f44-0d4e-4ce7-b7dc-d9325b50a5fb Sweden
1993f6e8-a7c3-48b0-82e8-6e8001455515 Germany
6eebdfc7-8784-4cef-87d5-dff15e47296f Poland
60162223-ab1e-4c4e-b471-3cb31cd41417 France
ba59c8dc-d677-4744-9b21-102a5a2af3ef Germany
cae383dc-3172-4dc2-953d-4a7dedd11850 Poland
f7710a80-1225-4e49-8ef8-c1eec0d18439 Estonia
be6702e1-6ac0-42d8-812e-3b9efeffacdf Greece
de35b0d5-a627-4525-95b1-d8158d64a5c2 Bulgaria
647709b8-17e0-4fd5-a493-73d01d83af7f Belgium
d48e6002-3aa7-4c95-a0a8-0d61505277f8 Spain
31830d90-1b83-4f47-8b10-deb8e5179ef3 Sweden
d2e71551-b4c1-4eb3-b024-7afa9a632a1b Poland
3ba4fb30-368a-45d1-9bf8-ec2f6c2a7e52 Hungary
4a599929-a2a1-4735-8275-bd259118f389 Croatia
8b3c87ed-5306-471f-ad20-74d61be561fe Denmark
3b0700f5-21cd-4df1-a600-6c8b3bda6f14 Czech Republic
699446c8-4084-4adf-94cf-7e1b525b3aaf Germany
891e2fe6-1afe-4d6f-8eea-60ee5e78e8bf France
878c8b76-4b18-41df-bd48-20e606cf9fc2 Norway
52b68f9f-1d4c-455d-af38-2f0391a15776 Italy
5f68f657-25fc-4fe6-aac7-9e7728e3aed5 Netherlands
58ad4334-ebcd-4df3-96d8-bc0ef39161ff Hungary
c855ab56-ad1a-4a65-a3c5-c284bb3f11ab Germany
50959fe4-1c84-4d30-ae01-e3e25167a467 Germany
79f96e89-9c7b-475e-a1f9-db71acb7bd76 Belgium
a724dfb6-7e3f-481e-a4ce-0b664e49d5a2 Portugal
29a78f44-0d4e-4ce7-b7dc-d9325b50a5fb Sweden
1993f6e8-a7c3-48b0-82e8-6e8001455515 Germany
6eebdfc7-8784-4cef-87d5-dff15e47296f Poland
60162223-ab1e-4c4e-b471-3cb31cd41417 France
ba59c8dc-d677-4744-9b21-102a5a2af3ef Germany
cae383dc-3172-4dc2-953d-4a7dedd11850 Poland
f7710a80-1225-4e49-8ef8-c1eec0d18439 Estonia

Popular Downloads

Instructions and Manuals:
Environmental Product Declaration - EPD:

Environmental

Degree of Protection:
Front IP00
Environmental Information:
Pollution Degree:
3

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85365080
Country or Territory of Origin:
Finland

Dimensions

Product Net Width:
145.5 mm
Product Net Height:
150 mm
Product Net Depth / Length:
82.5 mm
Product Net Weight:
1.4 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
170 mm
6.7 in
170 mm
6.7 in
Package Level 1 Depth / Length:
190 mm
7.5 in
190 mm
7.5 in
Package Level 1 Height:
145 mm
5.7 in
145 mm
5.7 in
Package Level 1 Gross Weight:
1.5 kg
3.3 lb
1.5 kg
3.3 lb
Package Level 1 EAN:
6417019231556

Technical

Conventional Free-air Thermal Current (Ith):
Θ = 40 °C 250 A
Conventional Thermal Current (Ithe):
Fully Enclosed 250 A
Degree of Protection:
Front IP00
Distance Between Phases:
Standard
Handle Color:
Black
Handle Type:
Handle and shaft included
Mechanical Durability:
20000
Mounting Type:
Base mounting
Number of Poles:
3P
Operating Mode:
Front operated
Pollution Degree:
3
Position of Line Terminals:
Top In - Bottom Out
Bottom In - Top Out
Top In - Bottom Out
Bottom In - Top Out
Power Loss:
at Rated Operating Conditions per Pole 6.5 W
Rated Impulse Withstand Voltage (Uimp):
12 kV
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie):
(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Current AC-22A (Ie):
(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Current AC-23A (Ie):
(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Power AC-23A (Pe):
(220 ... 240 V) 75 kW
(400 ... 415 V) 145 kW
(500 V) 170 kW
(690 V) 250 kW
(220 ... 240 V) 75 kW
(400 ... 415 V) 145 kW
(500 V) 170 kW
(690 V) 250 kW
Rated Operational Voltage:
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm):
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 8 kA
Special Functions:
No
Standards:
IEC 60947-3
Switches Operating Mechanism:
Mechanism at the End of the Switch
30 (Right Side)
Mechanism at the End of the Switch
30 (Right Side)
Terminal Type:
Lug terminals
Tightening Torque:
acc. IEC 60947-1 15 … 22 N·m

Technical UL/CSA

Tightening Torque:
acc. IEC 60947-1 15 … 22 N·m

Certificates and Declarations

External Classifications and Standards

Object Classification Code:
Q
ETIM 9:
EC000216 - Switch disconnector (low voltage)
ETIM 10:
EC000216 - Switch disconnector (AC)
UNSPSC:
39122221
eClass:
V11.1 : 27371403
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland):
3661358
E-Number (Norway):
4337858
Object Classification Code:
Q
ETIM 9:
EC000216 - Switch disconnector (low voltage)
ETIM 10:
EC000216 - Switch disconnector (AC)
UNSPSC:
39122221
eClass:
V11.1 : 27371403
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland):
3661358
E-Number (Norway):
4337858

All PLC Direct products come with a 1-year warranty. The warranty is issued by PLC Direct. Warranty coverage commences at the date of purchase. The warranty is for mechanical defects or failures not caused by human factors including but not limited to (a) incorrect installation, (b) operating the unit in sub-optimal conditions or in scenarios not recommended by the manufacturer, (c) poor unit maintenance, etc. The warranty does not cover programming or software related issues.

If the product is eligible for PLC Direct’s warranty coverage and the customer encounters an issue with the product, we will request the item is shipped to us for diagnosis and examination. Regardless of the cause of product issues, the customer will bear responsibility for the cost of shipping the unit to PLC Direct for evaluation. Where the unit was damaged by human factors, we will offer a repair or replace quote; in cases where damage was caused by human factors, the customer is responsible for the cost of shipping the repaired/replaced unit from PLC Direct to the customer. Where the unit was not damaged by human factors but is covered by PLC Direct’s warranty, we will repair or replace the unit at our cost (or, in rare cases, refund you your purchase); in such cases, PLC Direct will bear the cost of shipping the repaired or replaced product back to the customer. It is up to PLC Direct’s discretion whether to repair, replace, or refund the customer in such cases. Diagnoses can take time to complete based on technician availability and the complexity of diagnosis.

In no event shall PLC Direct be liable for any damages except actual damages up to, but not exceeding, the amount paid to us for the product, including we shall not be liable for any consequential or indirect damages or lost profits whether or not advised of same.

PLC Direct offers free shipping worldwide. Product ship from a various warehouses worldwide based on the customer's and the product's location. The estimated delivery date on the product page is PLC Direct's best estimated assuming a US-based shipping destination.

Regardless of where the product is shipping from, PLC Direct covers all duties for US-based shipping destinations. For non-US-based shipping destinations, customers are responsible for duties as appropriate.

PLC Direct's focus is on balancing price with lead time. Some but not all products can be expedited. If you have questions about delivery ETAs, please contact our team.

Trusted By

Need More?

Contact Us

You can call, email, or chat us
we're here to support your business.

(847) 242-1595

Chat

support@plc-direct.com

"Fast service for obsolete parts"

Increasingly PLC/ HMI control platforms are becoming obsolete and parts are no longer supported, however PLC Direct had the HMI we needed and fast shipping for our system to get back online!

Buyer at GE Health

"Helping us move projects forward"

With supply chain issues increasingly affecting our business, PLC Direct has been there for us to supply the PLC products we need, when we need it. If they don't have it readily available, they find it and provide it quickly and reliably. This has helped us move forward with several projects that would have otherwise taken us many, many months to complete.

Buyer at E-Merge Systems – A Rockwell Integrator
