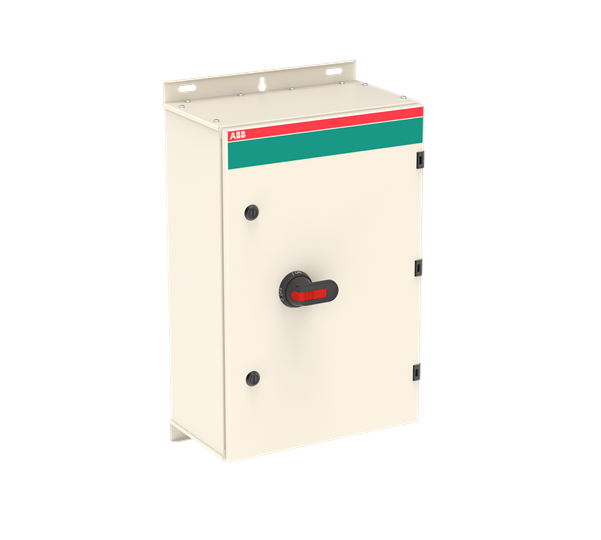

1SCA022602R0710 ABB - OT250KLUU3BZ

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP:
bcc8b84f-d36c-4221-9d0c-d2f2916a7838 Finland
Simplified SCIP:
10b3ed92-b349-4c22-a2ad-85b9a7548b74 Germany
820b8909-7de9-4b98-a3e4-1353aa22b8b2 Germany
60d767d3-795e-45a6-9405-0864e7067e9b Germany
b19ed835-4e07-4733-952c-85e30246db49 Czech Republic
daa8761b-214e-4839-adda-27ba925fe3f5 Croatia
c7f88f37-a37c-488f-bcbd-81ee51539220 Spain
bde0235f-78a7-4bbf-8eb2-c69b27e06266 Hungary
58ba43e7-74b3-4319-8cd7-1041e9270c90 Belgium
4188ba47-d479-498e-a13d-e1c344207c57 Poland
a06b10d9-f83e-4e8b-85e9-83af4ab2e64d Sweden
255e9dee-d0be-41cb-8feb-8d4d2bb3ce07 Italy
f5ee481a-988a-4277-bcbf-7c9870e6e588 Sweden
db8d5efc-0743-4e06-9dbe-035960fc4872 France
b929ded6-3635-4bbb-af17-f30c7e76df27 Germany
ecd6dc35-d5bf-4285-a378-0034bfd708f4 Germany
bc0a8fe7-a0a2-49e1-9065-f98ce2e1be0f France
24273e66-79fd-4f54-81cf-d280f6862f07 Hungary
35601eeb-1604-4137-9790-9159c8949bc5 Portugal
dfe1d377-5586-4af7-8c9d-4471a5647295 Greece
5d5a6ebb-a120-47a2-9f00-ef99d57bc0f2 Bulgaria
5f1179e5-bd36-4fe0-9dc5-5d6aef4075fb Poland
82afc978-a8dc-4b46-ba50-09f08a12d911 Norway
3c0b7bd3-c894-4651-9e58-37fdf48b9c53 Belgium
0038e334-6f0e-489c-8306-f1cc09dd0c00 Estonia
9812582f-69a9-488c-8ba7-02afe5006a7a Netherlands
d1d3eb72-5d24-4c41-9a5f-1e5a92cabe49 Poland
daf7991b-e618-4b4d-9580-a132520795a5 Denmark
10b3ed92-b349-4c22-a2ad-85b9a7548b74 Germany
820b8909-7de9-4b98-a3e4-1353aa22b8b2 Germany
60d767d3-795e-45a6-9405-0864e7067e9b Germany
b19ed835-4e07-4733-952c-85e30246db49 Czech Republic
daa8761b-214e-4839-adda-27ba925fe3f5 Croatia
c7f88f37-a37c-488f-bcbd-81ee51539220 Spain
bde0235f-78a7-4bbf-8eb2-c69b27e06266 Hungary
58ba43e7-74b3-4319-8cd7-1041e9270c90 Belgium
4188ba47-d479-498e-a13d-e1c344207c57 Poland
a06b10d9-f83e-4e8b-85e9-83af4ab2e64d Sweden

Environmental

Degree of Protection:
acc. to IEC 60529 IP65
Pollution Degree:
3

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85363090
Country or Territory of Origin:
Finland

Dimensions

Product Net Width:
400 mm
Product Net Height:
600 mm
Product Net Depth / Length:
230 mm
Product Net Weight:
15.81 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
415 mm
Package Level 1 Depth / Length:
710 mm
Package Level 1 Height:
325 mm
Package Level 1 Gross Weight:
17.5 kg
Package Level 1 EAN:
6417019195162

Technical

Cable Entry Position:
Top/Bottom
Cable Outlets Per Side:
Blank /Blank
Connecting Capacity Main Circuit:
Hole Diameter 8 mm
Screw Clamp / PE Terminal 4pc,10 ... 70 mm²
Hole Diameter 8 mm
Screw Clamp / PE Terminal 4pc,10 ... 70 mm²
Conventional Thermal Current (Ithe):
Fully Enclosed 250 A
Degree of Protection:
acc. to IEC 60529 IP65
Enclosure Material:
Steel sheet
Handle Color:
Black
Handle Type:
Pistol handle
Impact Resistance Rating:
Housing IK09
Maximum Mounted Auxiliary Contacts:
2 NO, 2 NC
Mounted Auxiliary Contacts:
0 NO, 0 NC
Neutral Type:
Detachable Neutral
Number of Auxiliary Contacts NC:
0
Number of Auxiliary Contacts NO:
0
Number of Poles:
3P
Pollution Degree:
3
Power Loss:
at Rated Operating Conditions per Pole 6.5 W
Rated Conditional Short-Circuit Current (Inc):
40.5 kA
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-22A (Ie):
(380 ... 415 V) 250 A
(690 V) 250 A
(380 ... 415 V) 250 A
(690 V) 250 A
Rated Operational Current AC-23A (Ie):
(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Power AC-23A (Pe):
(380 ... 415 V) 132 kW
(500 V) 160 kW
(690 V) 200 kW
(380 ... 415 V) 132 kW
(500 V) 160 kW
(690 V) 200 kW
Rated Operational Voltage:
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm):
(1000 V AC) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 8 kA
Recommended Screw Driver:
Main Circuit M8
Standards:
IEC 60947-1, -3
Tightening Torque:
Main Circuit 22 N·m

Technical UL/CSA

Recommended Screw Driver:
Main Circuit M8
Tightening Torque:
Main Circuit 22 N·m

Certificates and Declarations

External Classifications and Standards

Object Classification Code:
Q
ETIM 9:
EC000216 - Switch disconnector (low voltage)
ETIM 10:
EC000216 - Switch disconnector (AC)
UNSPSC:
39122205
IDEA Granular Category Code (IGCC):
5166 >> Safety switch
eClass:
V11.1 : 27371403
WEEE Category:
4. Large Equipment (Any External Dimension More Than 50 cm)
Price on request
Ask for quote


Notify Me When Available
