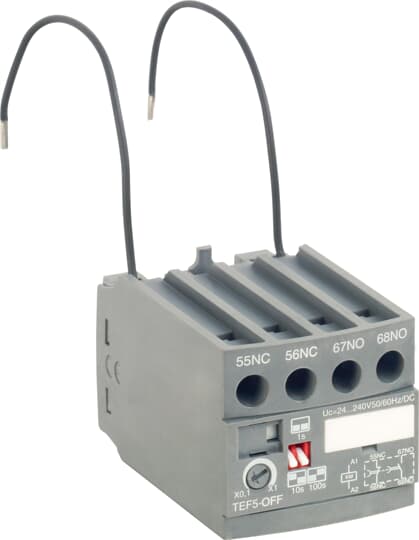

1SBN020314R1000 ABB - TEF5-OFF

1SBN020314R1000 ABB - TEF5-OFF

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389091

Dimensions

Product Net Width:
44 mm
Product Net Depth / Length:
62.5 mm
Product Net Height:
40.5 mm
Product Net Weight:
0.065 kg

Technical

Number of Auxiliary Contacts NO:
1
Number of Auxiliary Contacts NC:
1
Number of Poles:
2P
Standards:
IEC/EN 60947-5-1, UL 508, CSA C22-2 No. 14-18
Rated Operational Voltage:
Auxiliary Circuit 240 V AC
Rated Frequency (f):
Auxiliary Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith):
acc. to IEC 60947-5-1, Θ = 40 °C 5 A
Rated Operational Current AC-15 (Ie):
(24 / 127 V) 3 A
(220 / 240 V) 1.5 A
(24 / 127 V) 3 A
(220 / 240 V) 1.5 A
Rated Operational Current DC-13 (Ie):
(24 V) 1 A / 24 W
Rated Short-time Withstand Current Low Voltage (Icw):
for 0.1 s 8 A
for 1 s 8 A
for 0.1 s 8 A
for 1 s 8 A
Rated Insulation Voltage (Ui):
acc. to IEC 60947-5-1 400 V
acc. to UL/CSA 300 V
acc. to IEC 60947-5-1 400 V
acc. to UL/CSA 300 V
Rated Impulse Withstand Voltage (Uimp):
4 kV
Maximum Electrical Switching Frequency:
(AC-15) 1200 cycles per hour
(DC-13) 900 cycles per hour
(AC-15) 1200 cycles per hour
(DC-13) 900 cycles per hour
Maximum Mechanical Switching Frequency:
1800 cycles per hour
Power Loss:
at 3 A per Pole 0.1 W
Degree of Protection:
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
Tightening Torque:
Auxiliary Circuit 1 N·m
Terminal Type:
Screw Terminals
Timer Relay Type:
OFF-Delay
Suitable For:
GA75
GAE75
UA16
UA26
UA30
UA50
UA63
UA75
AX06
AX09
AX12
AX18
AX25
AX32
AX40
AX50
AX65
AX80
GA75
GAE75
UA16
UA26
UA30
UA50
UA63
UA75
AX06
AX09
Product Name:
Electronic Timer

Technical UL/CSA

Tightening Torque UL/CSA:
Auxiliary Circuit 9 in·lb

Environmental

Ambient Air Temperature:
Close to Contactor for Storage -40 ... +80 °C
Operation -25 ... +70 °C
Close to Contactor for Storage -40 ... +80 °C
Operation -25 ... +70 °C
Climatic Withstand:
Category B according to IEC 60947-1 Annex Q
Maximum Operating Altitude Permissible:
Without Derating 2000 m

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP:
558c7d79-298b-4357-9b83-3f7a9b422347 China
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

UL Listing Card:

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
82 mm
Package Level 1 Depth / Length:
56 mm
Package Level 1 Height:
51 mm
Package Level 1 Gross Weight:
0.065 kg
Package Level 1 EAN:
3471522387110

External Classifications and Standards

Object Classification Code:
K
ETIM 7:
EC002498 - Accessories for low-voltage switch technology
ETIM 8:
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9:
EC002060 - Timer block
eClass:
V11.0 : 27371308
UNSPSC:
39121523
IDEA Granular Category Code (IGCC):
4746 >> Timer controls
E-Number (Finland):
2712546
Price on request
Ask for quote
