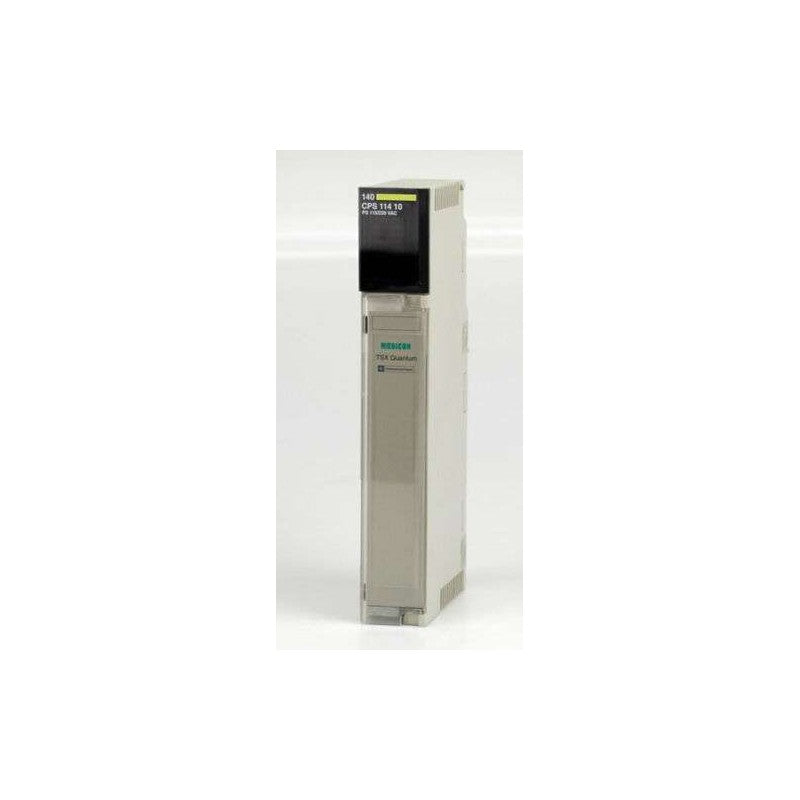

The Schneider Electric 140CPS11410 is an AC summable power supply module designed for the Modicon Quantum programmable logic controller platform. This module provides stable, reliable power to Quantum CPU modules, I/O modules, and communication interface modules mounted on the backplane. It accepts dual input voltages of 115 or 230 VAC at frequencies of 47 to 63 Hz, offering flexibility for different electrical systems worldwide. The summable design allows multiple power supplies to be combined in a single system for increased capacity and redundancy. With an 8 A output current rating at 60°C and 90% typical efficiency, the module minimizes energy loss while delivering 130 VA of power. It features internal overvoltage and overcurrent protection, a 7-point terminal strip connector, and LED status indication. Engineered for harsh industrial environments, it operates reliably in ambient temperatures from 0 to 60°C and altitudes up to 5,000 meters.
Item Details
- Brand Name: Schneider Electric
- Manufacturer: Schneider Electric
- Item Type Name: AC Summable Power Supply Module
- Product Family / Series: Modicon Quantum
- Model Number: 140CPS11410
- Alternate Part Number: 140-CPS-114-10
Product Specifications
- input_voltage: 115/230 VAC
- input_voltage_range: 93-138 VAC / 170-260 VAC
- input_frequency: 47-63 Hz
- output_current: 8 A at 60°C
- power_rating: 130 VA
- efficiency: 90% typical
- power_dissipation: 20 W
- fuse_rating: 2 A
- inrush_current_at_230V: 19 A
- inrush_current_at_115V: 38 A
- power_supply_type: AC Summable
- connector_type: 7-point terminal strip
- status_indication: Single green LED
Additional Details
- Protection Features: Internal overvoltage and overcurrent protection
- Humidity Tolerance: 95% relative humidity without condensation
Measurements
- Weight: 0.650 kg
- Operating Temperature: 0 to 60°C
- Storage Temperature: -40 to 85°C
- Maximum Operating Altitude: 5,000 m
