Modules

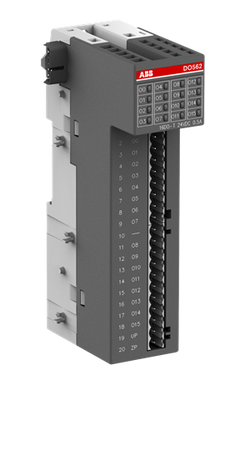

DO562: S500-eCo Digital output module. 16 DO: 24VDC 0.5A. 1-wire.

Solar String Combiner for PV application

AI523: S500 Analog input module. 16 AI: U, I, RTD, DI. 1-wire.

RD2 Residual current monitors (RCMs) with external transformer can detect leakage currents. Through minidip you can set sensitivity and intervention time. Operating voltage: 230…400V a.c.

Tmax T - switch for motor protection, fixed, termianli front T6L 800 F F PR222 / MP ... 630 3780 8190 (3-pin)

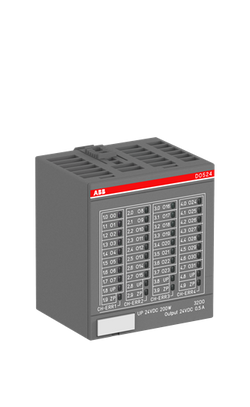

DO524: S500 Digital output module. 32 DO: 24VDC 0.5A. 1-wire.

PM5012-T-ETH: AC500-eCo Processor module. Memory 1MB. 6 DI 24 VDC. 4 DO-Transistor 24 VDC. Ethernet interface. 1 option slot.

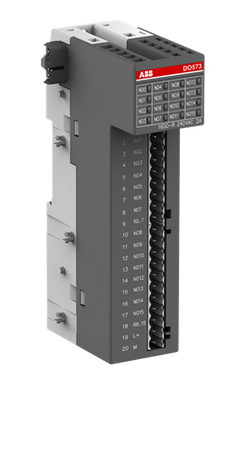

DO573: S500-eCo Digital output module. 16 DO relay: 24VDC/24VAC or 100..240VAC 2A.

CI504-PNIO: S500 Interface module. PROFINET IO RT device. Gateway module. 3 serial interfaces: RS232, RS422, RS485. Extendable by up to 10 I/O modules.

SS823 Power Voting Unit

TPM810 Turbine Protection Module

ROM810V2 Relay Output Module
